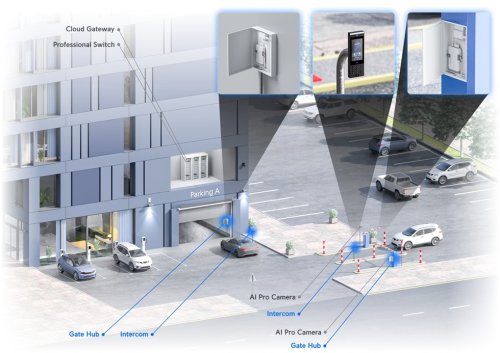

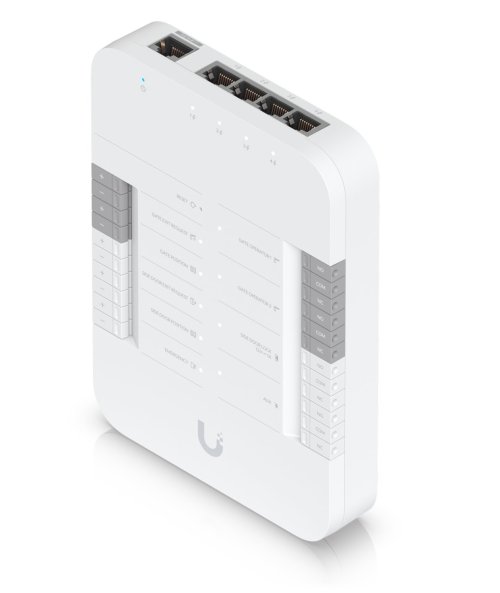

Overview
Dimensions
175 x 126 x 26 mm
(6.9 x 5 x 1")
Supported Doors
1 gate, 1 side door

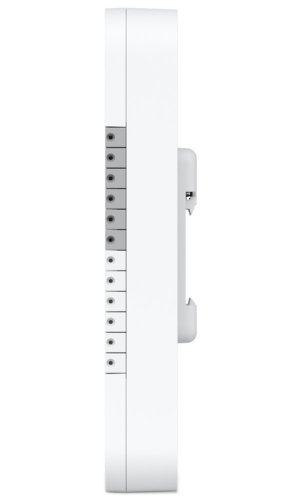

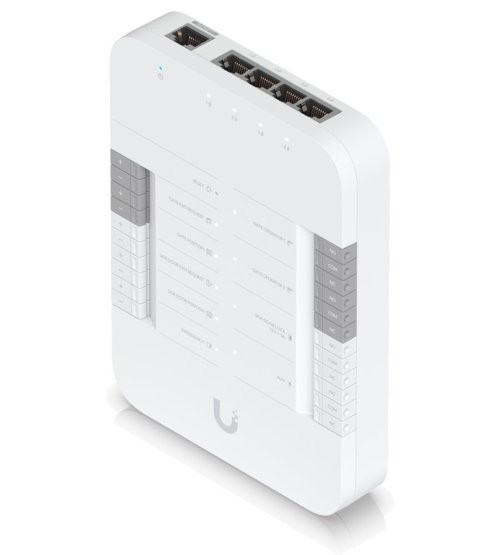

Input Terminals
(1) Gate exit request
(1) Gate position
(1) Side door exit
(1) Side door position
(1) Emergency
Power Method
PoE++
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
UniFi Application Suite
Access
Mechanical
Weight
460 g (1 lb)
Enclosure Material
Polycarbonate

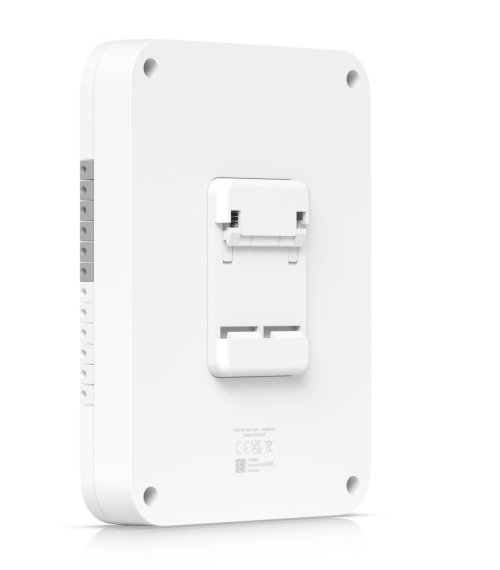

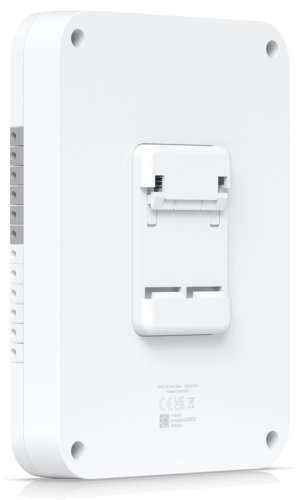

Mounting

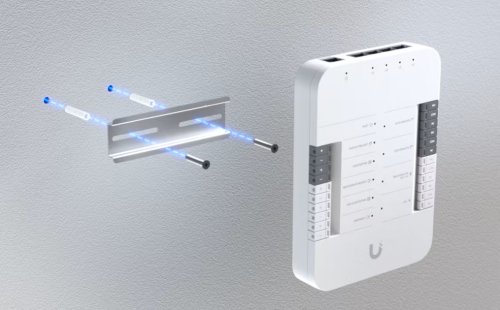

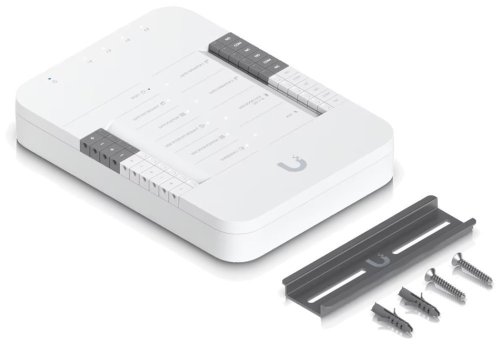

DIN-rail (Included)
Hardvér
Indoor and Outdoor Use
Indoor only: device itself
Outdoor: with waterproof junction box
Ambient Operating Temperature
-30 až 60° C
(-22 to 104° F)
Ambient Operating Humidity
5 to 90% noncondensing

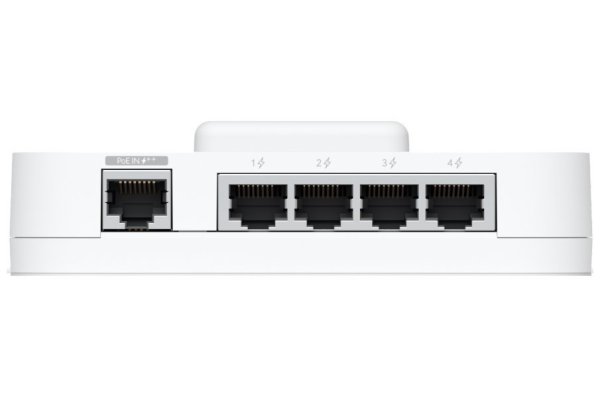

Networking Interface
(5) 10/100/1000 Base-T
PoE Interface
(1) PoE++ vstup, 50V DC, 1A
(4) PoE výstupy, DC 50V, Max. 28W
Max. Power Consumption
22W (Without PoE output)
50W (With PoE output)
Digital Input
Gate exit request, gate position, side door exit request, side door position, emergency
Dry Output Relay
(2) Operator: rated 30V DC, up to 1A
(1) Aux: rated 30V DC, up to 1A
Powered Output Relay
Side door lock: 12V DC, up to 1A
LEDs
W/B Learn More
Buttons
(1) Factory-reset
Recommend Max. Cable Length
UA-Lock-Electric
(400mA)
24 AWG dĺžka: 25 m (82 ft)
22 AWG dĺžka: 42 m (138 ft)
20 AWG dĺžka: 66 m (217 ft)
18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)
24 AWG dĺžka: 20 m (66 ft)
22 AWG dĺžka: 32 m (105 ft)
20 AWG dĺžka: 51 m (167 ft)
18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
UA-Lock-Magnetic-270kg (800mA)
24 AWG dĺžka: 12 m (29 ft)
22 AWG dĺžka: 20 m (66 ft)
20 AWG dĺžka: 30 m (98 ft)
18 UACC-Cable-DoorLockRelay dĺžka: 46 m (151 ft)
Other locks
(1A)
24 AWG dĺžka: 9 m (30 ft)
22 AWG dĺžka: 15 m (49 ft)
20 AWG dĺžka: 24 m (79 ft)
18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling Requirements
Cat 5e cabling is minimum performance category recommended. Performance category utilized should match the transmission speed required at the installation site.
Minimálny drôt gauge, ktorý sa dá pripojiť medzi PSE alebo výkonným injectorom a PD shall be 26 AWG (0.13 mm2 ) pre patch cords; 24 AWG (0.21 mm2 ) pre horizontálne alebo riser cable.
UL 294 Level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
UL 294 Statement
Compliance with IEEE 802.3 specifications nie je verified as part of UL 294.
Equipment je integrovaný do kompletnej s kapitolou Národného elektrického kódu, ANSI/NFPA 70, Article 725.121, Power Sources pre 2. a 3. triedu Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-Hub-Gate, V01
Softvér
Management Application
Access
Software Information
