<B>Chipset: </B> AMD B650

<B>Rozmerový formát: </B> ATX Form Factor, (30.5cm x 24.4cm) <B>Podpora pre procesory: </B> AMD Ryzen 7000 Series Processors <B>Pätica procesora: </B> AM5

<B>Pozícia na pamäti: </B> 4 x DDR5 DIMM, Dual channel memory architecture <B>Podpora pre pamäte: </B> DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC )/5200/4800/4400 MT/s memory modules <B> Max.veľkosť operačnej pamäte: </B> 128 GB (32 GB single DIMM capacity) <B>Podpora pre pamäte typu: </B> non-ECC, XMP

<B>Grafické výstupy: </B> (na základe procesora) *1 x DisplayPort 1.4, maximálne rozlíšenie 3840x2160@144 Hz *1 x HDMI 2.1 port, maximálne rozlíšenie 4096x2160@60 Hz

<B>Zvuková karta: </B> Realtek Audio CODEC *2/4/5.1/7.1-channel

<B>Sieťová karta: </B> *Realtek 2.5GbE LAN čip (2.5Gbps/1Gbps/100Mbps) *AMD Wi-Fi 6E RZ616 a, b, g, n, ac, ax *Bluetooth 5.2

<B>Rozširujúce sloty: </B> *1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) *2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

<B>RAID radič: </B> RAID 0, RAID 1, and RAID 10

<B>SATA: </B> 4 x SATA 6 Gb/s konektory <B> M.2 : </B> 3 x M.2 Socket 3 connectors

<B>USB: </B> *<B>Interné: </B> *1 x Type-C USB header, s USB 3.2 Gen 2x2 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *<B>Externý: </B> *1 USB Type-C port, s USB 3.2 Gen 2 support *1 x USB 3.2 Gen 2 Type-A port (red) *3 x USB 3.2 Gen 1 ports *3 x USB 2.0/1.1 ports

<B>Interné porty: </B> *1 x 24-pin ATX main power connector *1 x 8-pin ATX 12V power connector *1 x 4-pin ATX 12V power connector *1 x CPU fan header *1 x water cooling CPU ventilátor header *2 x systém ventilátora headers *1 x systém ventilátora/voda cooling čerpadlo headera *2 x addressable LED strip headers *2 x RGB LED strip headers *1 x CPU cooler LED strip/RGB LED strip header *3 x M .2 Socket 3 konektory *4 x SATA 6Gb/s konektory *1 x front panel header *1 x front panel audio header *1 x USB Type-C header, s USB 3.2 Gen 2x2 support *1 x USB 3.2 Gen 1 header * 2 x USB 2.0/1.1 headers *1 x Trusted Platform Module header *1 x Clear CMOS jumper

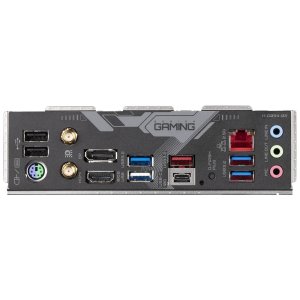

<B>Externé porty: </B> *2 x SMA antény konektory (2T2R) *1 x Q-Flash Plus tlačidlo *1 x DisplayPort *1 x HDMI port *1 x USB Type-C port, s USB 3.2 Gen 2 support *1 x USB 3.2 Gen 2 Type-A port (red) *3 x USB 3.2 Gen 1 ports *3 x USB 2.0/1.1 ports *1 x RJ-45 port *3 x audio jacks

<B>BIOS: </B> AMI UEFI BIOS, 1 x 256 Mbit flash

<B>Stránka výrobcu: </B> http://www.gigabyte.com/Motherboard/B650-GAMING-X-AX-rev-1x#kf
