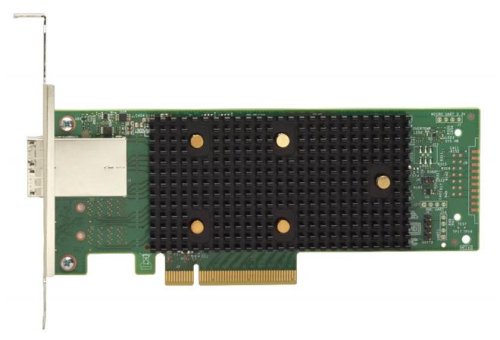

Lenovo ThinkSystem 440-8e a 440-16e SAS/SATA 12Gb HBAs sú vysoko výkonné PCIe 4.0 host bus adaptéry pre externé storage connectivity v serveroch ThinkSystem. Tieto adaptéry majú dva alebo štyri x4 externé mini-SAS HD konektory na vykonanie pripojenia do externých storage devices such.


440 externých HBAs majú following features and specifications:

PCIe 4.0 x8 host interface
PCI low profile, polo-length form factor
Based on Broadcom controllers:
440-8e: Based on the Broadcom SAS3808 IOC design
440-16e: Based on the Broadcom SAS3816 IOC design
12Gbps SAS/SATA ports:
440-8e: Two Mini-SAS HD x4 (SFF-8644) connectors
440-16e: Four Mini-SAS HD x4 (SFF-8644) connectors
Non-RAID (JBOD mode) support for SAS and SATA HDDs a SSDs
Connectivity for up to 1024 externých SAS or SATA drives
Up to 12 Gbps throughput per port
Supports 12, 6, 3 Gbps SAS speeds
Supports 6 alebo 3 Gbps SATA speeds
Support for externé storage systems and tape backup units
High performance architecture with very deep queue depth
Advanced power management support
Support pre SSP, SMP, STP a SATA protokoly
End-to-End CRC with Advanced Error Reporting
Spread Spectrum Clocking for EMI reductions
Supports 512e, 512n a 4K (ak sú dostupné) formátované ovládače
Compliant with Disk Data Format (DDF) konfigurácia na disk (CoD).
SMART . support.
Configuration through
XClarity Provisioning Manager UEFI interface
XClarity Controller web interface
XClarity Administrator Configuration Patterns
StorCLI command-line interface
LSI Storage Authority (LSA) GUI interface
UEFI Human Interface Infrastructure (HII)
