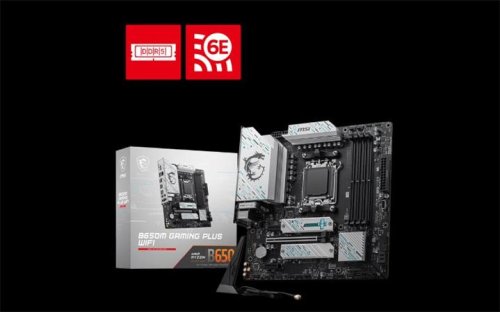

B650M GAMING PLUS WIFI
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, až 7200+(OC) MHz
Enhanced Power Design: 10+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2 , USB 3.2 Gen 2
Premium Thermal Solution: Extended Heatsink Design a M.2 Shield Frozr are built for high performance system and non-stop works
AUDIO BOOST: Reward your ears with štúdio triedy zvukovej kvality pre most immersive gaming experience
High Quality PCB: 6-layer PCB vyrobené z 2oz thickened copper

Chipset AMD B650
CPU Supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors
Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC) 5000(OC)/ 4800(JEDEC) MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Onboard Graphics 1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
Available only on processors featuring integrated graphics. Graphics specifications majú vary depending on the CPU inštalované.
Slot 1x PCI-E x16 slot
• Supports x16 (For Ryzen™ 9000 a 7000 Series processors)
• Supports x8 (For Ryzen™ 7 8700G a Ryzen™ 5 8600G processors)
• Supports x4 (for Ryzen™ 5 8500G processor)
2x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
• M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed
RAID Supports RAID 0, RAID 1, a RAID 10 pre SATA storage devices
Supports RAID 0, RAID 1 pre M.2 NVMe storage devices
USB 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
LAN Realtek® RTL8125BG 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH AMD Wi-Fi 6E
The Wireless module je preinštalovaný v M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz, 160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

• Wi-Fi 6E 6GHz má depend on every country's regulations and will be ready in Windows 11.
  ** Bluetooth 5.3 bude ready in Windows 10 budova 21H1 a Windows 11.
  Audio Realtek® ALC897 Codec
  7.1-Channel High Definition Audio

  Internal IO 1x Power Connector(ATX_PWR)
  2x Power Connector(CPU_PWR)
  1x CPU Fan
  1x Pump Fan
  3x System Fan
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Tuning Controller connector (JDASH)
  2x Addressable V2 RGB LED konektor (JARGB_V2)
  2x RGB LED connector (JRGB)
  1x TPM pin header (Support TPM 2.0)
  4x USB 2.0 ports
  2x USB 5Gbps Type A ports
  1x USB 10Gbps Type C ports
  LED FEATURE 4x EZ Debug LED
  BACK PANEL PORTS
  DisplayPort
  2.5G LAN
  USB 3.2 Gen 2 10Gbps (Type-A)
  USB 3.2 Gen 1 5Gbps (Type-A)
  Wi-Fi / Bluetooth
  Flash BIOS Button
  HDMI™
  USB 3.2 Gen 2 10Gbps (Type-A)
  USB 3.2 Gen 2 10Gbps (Type-C)
  Audio connectors

  OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
  BOX CONTENT
  PCB Info mATX
  243.84mmx243.84mm
