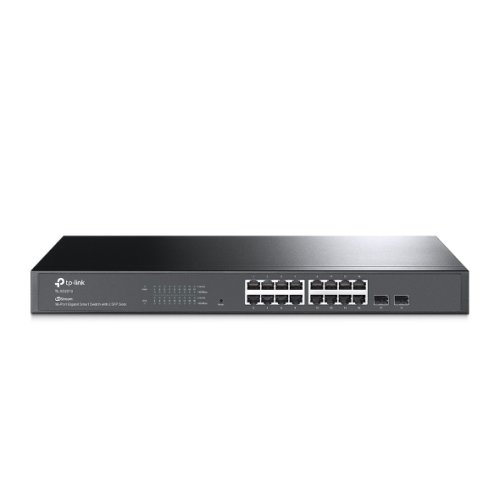

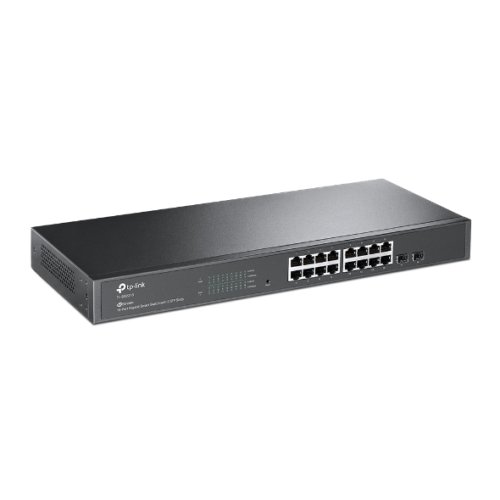

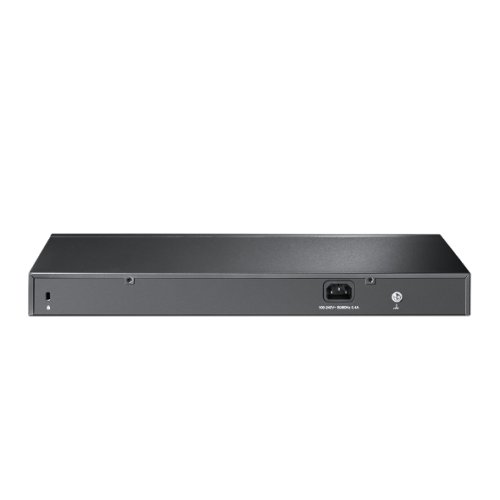

TL-SG2218P
18portový gigabitový inteligentný switch JetStream so 16 portami PoE+
PoE s rozpočtom napájania 150 W: 16 portov PoE+ vyhovujúcich štandardu 802.3at/af s celkovým napájacím výkonom 150 W*.
Plne gigabitové porty: 16 gigabitových portov PoE+ a 2 sloty SFP poskytujú vysokorýchlostné pripojenie.
Integrované do platformy Omada SDN: Funkcia ZTP (Zero-Touch Provisioning)**, centralizovaná cloudová správa a inteligentné monitorovanie
Centralizovaná správa: Cloudový prístup a aplikácia Omada pre maximálne pohodlí a jednoduchú správu.
Statické smerovanie: Pomáha smerovať tok dať po lokálnej sieti, čím zaisťuje efektívne využívanie sieťových prostriedkov.
Robustná stratégia zabezpečenia: Funkcia viazania na adresu IP-MAC, ACL, zabezpečenie portov, ochrana proti útokom DoS, funkcia Storm Control, funkcia DHCP Snooping, overovanie protokolom 802.1X a Radius a ďalšie funkcie.
Optimalizovaný prenos hlasu a videa v aplikáciách: L2/L3/L4 QoS a funkcie IGMP Snooping.
IPv6: Podpora protokolu IPv6 s duálnym zásobníkom IPv4/IPv6, MLD Snooping, IPv6 Neighbor Discovery.
Samostatná správa: Webové rozhranie, CLI (Telnet, SSH), SNMP, RMON a funkcia Dual Image prináša pokročilé možnosti správy.

HARDWARE FEATURES
Štandardy a protokoly IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1d, IEEE 802.1d. IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface • 16× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 2× Gigabit SFP Slots
Network Media • 10BASE-T: UTP kategórie 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP kategórie 5, 5e alebo cez kábel (maximum 100m)
• 1000BASE-X: MMF, SMF
Fan Quantity 1
Power Supply 100-240V AC, 50/60Hz
PoE Ports (RJ45) • Štandard: 802.3at/af compliant
• PoE+ Ports: 16 Ports
• PoE Power Budget: 150 W*
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
Mounting Rack Mountable
Max Power Consumption • 181.4 W (110 V/60 Hz) (s 150 W PD connected)
• 178.3 W (220 V/50 Hz) (s 150 W PD connected)
Max Heat Dissipation • 619.06 BTU/hr (110 V/60 Hz) (s 150 W PD connected)
• 608.52 BTU/hr (220 V/50 Hz) (s 150 W PD connected)
PERFORMANCE
Switching Capacity 36 Gbps
Packet Forwarding Rate 26.78 Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
SOFTVÉR FEATURES
Quality of Service • 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode

• SP (Strict Priority)

• WRR (Weighted Round Robin)
  • Queue Weight Config
  • Bandwidth Control

• Port/Flow based Rating Limit
  • Smoother Performance
  • Storm Control

• Multiple Control Modes (kbps/ratio)

• Broadcast/Multicast/Unknown-Unicast Control
  L2 a L2+ Features • 16 IP Interfaces

• Support IPv4/IPv6 Interface
  • Static Routing

• 32 IPv4/IPv6 Static Routes
  • DHCP Server
  • DHCP Relay

• DHCP Interface Relay

• DHCP VLAN Relay
  • DHCP L2 Relay
  • Static ARP
  • Proxy ARP
  • Gratuitous ARP
  • Link Aggregation

• Static link aggregation

• 802.3ad LACP

• Up to 8 aggregation groups and up to 8 ports
  per group
  • Spanning Tree Protocol

• 802.1D STP

• 802.1w RSTP

• 802.1s MSTP

• STP Security: TC Protect, BPDU Filter/Protect,
  Root Protect
  • Loopback Detection
  • Flow Control

• 802.3x Flow Control
  • Mirroring

• Port Mirroring

• CPU Mirroring

• One-to-One

• Many-to-One

• Flow-Based

• Ingress/Egress/Both
  • Device Link Detect Protocol (DLDP)
  • 802.1ab LLDP/ LLDP-MED
  VLAN • VLAN Group

• Max. 4K VLAN Groups
  • 802.1Q tag VLAN
  • MAC VLAN: 12 Entries
  • Protocol VLAN
  • GVRP
  • Voice VLAN
  Access Control List • Support up to 230 entries
  • Time-Range

• Time Slice

• Week Time-Range

• Absolute Time-Range

• Holiday
  • Time-based ACL
  • MAC ACL

• Source MAC

• Destination MAC

• VLAN ID

• User Priority

• Ether Type
  • IP ACL

• Source IP

• Destination IP

• IP Protocol

• TCP Flag

• TCP/UDP Source Port

• TCP/UDP Destination Port

• DSCP/IP TOS
  • IPv6 ACL
  • Combined ACL
  • Rule Operation

• Permit/Deny
  • Policy Action

• Mirror

• Rate Limit

• Redirect

• QoS Remark
  • ACL Rules Binding

• Port Binding

• VLAN Binding
  • Actions for flows

• Mirror (to supported interface)

• Redirect (to supported interface)

• Rate Limit

• QoS Remark
  Security • AAA
  • 802.1X

• Port based authentication

• MAC (Hosť) based authentication

• Authentication Method includes PAP/EAP-MD5

• MAB

• Guest VLAN

• Support Radius authentication and
  accountability
  • IP/IPv6-MAC Binding

• 512 Binding Entries

• DHCP Snooping

• DHCPv6 Snooping

• ARP Inspection

• ND Detection
  • IP Source Guard

• 253 Entries

• Source IP+Source MAC
  • IPv6 Source Guard

• 183 Entries

• Source IPv6 Address+Source MAC
  • DoS Defend
  • Static/Dynamic/Permanent Port Security

• Up to 64 MAC addresses per port
  • Broadcast/Multicast/Unicast Storm Control

• kbps/ratio control mode
  • Port Isolation
  • Secure web management through HTTPS with
  SSLv3/TLS 1.2
  • Secure Command Line Interface (CLI)
  management with SSHv1/SSHv2
  • IP/Port/MAC založený prístupový ovládač
  IPv6 • Static Routing and ACL IPv6
  • IPv6 Dual IPv4/IPv6
  • IPv6 Interface
  • Multicast Listener Discovery (MLD) Snooping
  • IPv6 neighbor discovery (ND)
  • Path maximum transmission unit (MTU) discovery
  • Internet Control Message Protocol (ICMP)
  version 6
  • TCPv6/UDPv6
  • IPv6 applications

• DHCPv6 Client

• Ping6

• Tracert6

• Telnet(v6)

• IPv6 SNMP

• IPv6 SSH

• IPv6 SSL

• Http/Https

• IPv6 TFTP
  Advanced Features • Automatic Device Discovery
  • Batch Configuration
  • Batch Firmware Upgrading
  • Intelligent Network Monitoring
  • Abnormal Event Warnings
  • Unified Configuration
  • Reboot Schedule
  MIBs • MIB II (RFC1213)
  • Bridge MIB (RFC1493)
  • P/Q-Bridge MIB (RFC2674)
  • Radius Accounting Client MIB (RFC2620)
  • Radius Authentication Client MIB (RFC2618)
  • Remote Ping, Traceroute MIB (RFC2925)
  • Support TP-Link private MIBs
  • RMON MIB(RFC1757, rmon 1,2,3,9)
  MANAGEMENT
  Omada App Yes, through
  • Omada Cloud-Based Controller
  • OC300
  • OC200
  • Omada Software Controller
  Centralized Management • Omada Cloud-Based Controller
  • Omada Hardvér Controller OC300
  • Omada Hardware Controller OC200
  • Omada Software Controller
  Cloud Access Yes, through
  • Omada Cloud-Based Controller
  • OC300
  • OC200
  • Omada Software Controller
  Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller
  Management Features • Web-based GUI
  • Command Line Interface (CLI) cez telnet
  • SNMPv1/v2c/v3
  • SNMP Trap/Inform
  • RMON (1,2,3,9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Cable Diagnostics
  • EEE
  • SNTP
  • System Log
  OTHERS
  Certification CE, FCC, RoHS
  Package Contents TL-SG2218P
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet
  System Requirements Microsoft® Windows® XP, Vista™ alebo Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® alebo Linux.
  Environment • Operating Temperature: 0–50 ? (32 – 122 ?);
  • Storage Temperature: -40–70 ? (-40–158 ?)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5-90% RH non-condensing
