Zyxel 1G Ethernet Surge Protector

Ethernet Surge Protector

Safeguarding Your Ethernet Devices from The Surge
SURGEPRO-GE je ethernet surge protector s robustným stupňom Line-Line, Line-Ground protection k štítkom obchodné siete produktov z power interference, nosures data security, a predĺženia device's lifespan, thereby offering uninterrupted business operations.

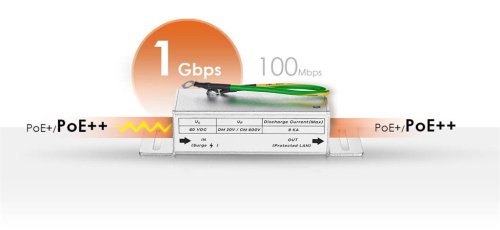

Support 802.3bt PoE++ (60W) a Gigabit Speed
SURGEPRO-GE je navrhnutý tak, aby chránil sieťové zariadenia, podporujúce štandardy IEEE 802.3af/at/bt a sieťové rýchlosti 10 Mbps, 100 Mbps, a 1 Gbps pre pripojenie až do 100 metrov.

Easy Installation
Nasledujte inštrukcie na etikete, Ide o rýchle a jednoduché na to, aby ste chránili svoju sieť v minútach.

Product Name
Ethernet Surge Protector

Interface Connections
2 RJ-45 connector

Data Line Protection
RJ-45 10/100/1000 Ethernet

IEEE 802.3af/at/bt Support
Yes (802.3bt 60 W supported)

Maximum Operation DC Voltage
60 VDC

Maximum Discharge Current
8 KA

Line to GND Protection Level
20 KV (10/700 us)/10 KA (8/20 us)

Line to Line Protection Level
4 KV (10/700 us)

Response Time
< 5 ns

Min. Power Consumption (watts)
1.62

Physical Specifications
Dimensions (WxDxH)(mm/in)
40 x 120 x 25/1.57 x 4.72 x 0.98

Weight (g/lb.)
121/0.27

Operating
Temperatúra: -40 °C až 85 °C/-40 °F až 185 °F

Humidity: 10% až 90% (non-condensing)
Storage
Temperatúra: -40°C až 85°C/-40°F až 185°F
Humidity: 10% až 90% (non-condensing)

Certification
FCC (class B), CE (class B), IEC 61000-4-5, IEC 61643-21, ITU-T K.21
