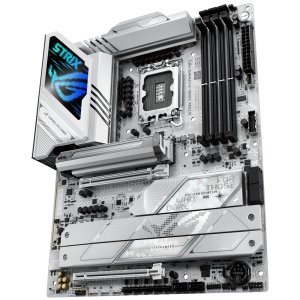

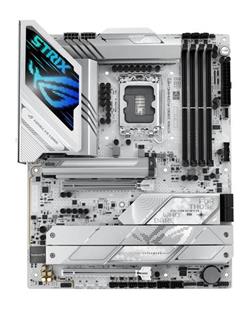

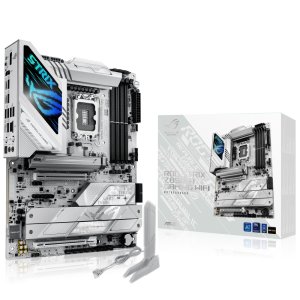

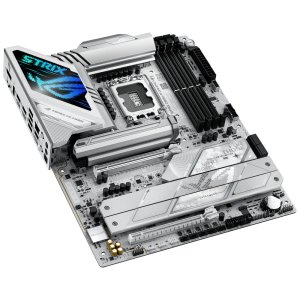

S Thunderbolt ™ 4, PCIe ® 5.0 a osvetlením Polymo poskytuje ROG Strix Z890-A bleskovo rýchle dátové prenosy, výnimočnú konektivitu a prispôsobiteľnú estetiku, ktorá môže byť jemná alebo odvážna.
Táto základná deska poskytuje výkon a rýchlosť, ktoré sú nevyhnutné pre elitné hry a požiadavky pokročilých AI PC aplikácií.

Technická špecifikácia:

Model
ROG STRIX Z890-A GAMING WIFI

News & Updates
2024/10/24: Nové BIOS má byť zreleased addressing various bugs, including no display z grafických kariet pri inštalácii Windows 11 24H2. It is recommended to use the new EZ Flash tool to update directly using the ZIP súbor downloaded z ASUS stránky.
Prečítajte si odkaz na globálnu stránku produktu na nasledujúcom odkaze na najnovšie správy a špecifickosti.
https://rog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/spec/

CPU
Support Intel® Core™ Ultra Processors (Series 2)*
Supports Intel Turbo Boost Technology 2.0 a Intel Turbo Boost Max Technology 3.0 **
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 podporuje depends on the CPU types.

Chipset
Intel® Z890 Chipset

Memory
4 x DIMM slots, max. 192GB, DDR5
Support up to 9066+MT/s (OC), bez ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
Supports DIMM FIT
ASUS Enhanced Memory Profile III (AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of production information site or visit https://www.asus.com/support/download-cent
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics
1 x DisplayPort*
1 x HDMI™ port**
2 x Intel Thunderbolt 4 support DisplayPort and Thunderbolt video outputs***
- Graphics specifications may vary between CPU types. Please refer to na www.intel.com for any updates.
* Supports max. 8K@60Hz a špecifikované v DisplayPort 1.4.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** V Thunderbolt™ 4 režime, podporou až 8K @ 60Hz x1 s DSC alebo 4K @ 60Hz x 2, maximálnou celkovou bandwidth až 23.8Gbps alebo 16Gbps/16Gbps, na riešenie podpory pre kontrolu DisplayPort 2. In DP alt mode, supports up to UHBR20.
**** VGA resolution support depends on processors' or graphic cards' resolution.
***** Keď inštalujete operačný systém, precízne využitie, že váš monitor je pripojený k HDMI portu na zadnej I/O paneli alebo k discrete grafických karte.

Expansion Slots
Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot

Intel® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
- Ak chcete získať kompatibilitu zariadenia nainštalovanú, prosím referte na https://www.asus.com/support/download-center/ pre list podporovaných peripherals.

Storage
Total Supports 5 x M.2 slotov a 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors (Series 2)*
M.2_1 slot (Key M), typ 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), typ 2280 (supports PCIe 4.0 x4 mode)
Intel® Z890 Chipset
M.2_3 slot (Key M), typ 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), typ 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot z CPU only supports RAID 0/1/5.

Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
Pre Windows 11, Wi-Fi 7 bude require 24H2 alebo posledná verzia pre úplné funkcie, Windows 11 21H2/22H2/23H2 bez podpory Wi-Fi 6E.
Pre Windows 10, only Wi-Fi 6 je supported.
** Wi-Fi 6GHz frekvencia band and bandwidth regulátory majú vary between countries.
*** The Bluetooth® verzia má vary, prosím referuje na Wi-Fi module manufacturer webovej stránky pre najnovšie špecifickosti.

USB
Rear USB (Total 10 ports)
2 x Thunderbolt™ 4 porty (2 x USB Type-C®)*
6 x USB 10 Gbps ports (5 x Type-A + 1 x USB Type-C® s 30 W PD/PPS Fast-charge)**
2 x USB 5Gbps ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps konektor (supports USB Type-C®)*
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A
** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedancia bez pre front a rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel

Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* Chassis s audio modulom HD v prednom paneli je potrebný na podporu 7.1 Surround Sound audio output.
** Prístup LINE OUT na paneli zadných častí nie je podporovaný spatial audio. Ak sa budete chcieť použiť spatial audio, budete chcieť pripojiť váš audio výstup zariadenia k audio jacku na prednej strane vášho chassis alebo použiť a USB interface audio zariadenia.

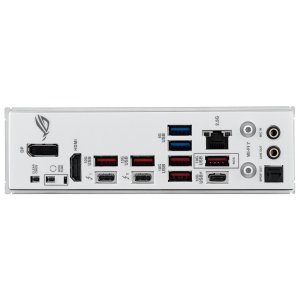

Back Panel I/O Ports
2 x Thunderbolt™ 4 porty (2 x USB Type-C®)*
6 x USB 10 Gbps ports (5 x Type-A + 1 x USB Type-C® s 30 W PD/PPD Fast-charge)
2 x USB 5Gbps ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps konektor (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Štart button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header

Special Features
Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (s PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-SlotASUS
Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers

Softvér Features
ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (s AI Cooling II)
- GameFirst
- Power Saving
AIDA64 Extreme (60 days free trial)
HWiNFO
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (30 Days Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
NPU Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey

BIOS
256 Mb UEFI AMI BIOS
Manageability
WOL by PME, PXE

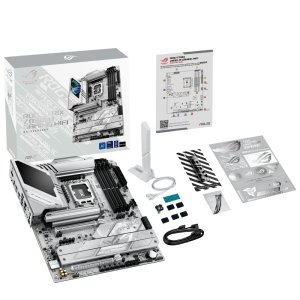

Accessories
Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad pre M.2 22110
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
5 x M.2 rubbers
Documentation
1 x Quick štart guide

Operating System
Windows 11 (22H2 later)

Form Factor
ATX Form Factor
12 palcov x 9.6 palcov (30.5 cm x 24.4 cm)
