CPU
AMD Socket AM4, podporu pre: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series a Ryzen™ 3000 a Ryzen™ 3000 G-Series Processors
(Please refer "CPU Support List" pre viac informácií.)
Chipset
AMD B550
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4733 ( OC ) / 4600 ( OC ) / 4400 ( OC ) / 4266 ( OC ) / 4133 ( OC ) / 4000 ( OC ) / 3866 ( OC ) / 360 ( 3 ) ) / 3400( OC . ) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*

• ECC memory (ECC mode) support varies by CPU
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (CPU a pamäťová konfigurácia môže povzbudiť pamäte typov, dátumové počítanie (speed), a číslo modulov DRAM, prosím odpovedať na "Memory Support List" na webovej stránke GIGABYTE pre viac informácií.)
  Onboard Graphics
  Integrated Graphics Processor with AMD Radeon™ Graphics support:
  1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz

• Support for DisplayPort 1.4 verzia, HDCP 2.3 a HDR.
  1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

• Support pre HDMI 2.1 verziu, HDCP 2.3, a HDR.
  Maximum shared memory of 16 GB
  Audio
  Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel

• Môžete zmeniť funkciu audio jack pomocou audio softvéru. To configure 7.1-channel audio, prístup k audio softvéru pre audio settings.
  LAN
  Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
  Expansion Slots
  1 x slot PCI Express x16, integrovaný v CPU:
  AMD Ryzen™ 5000 Series*/3000 Series Processors support PCIe 4.0 x16 mode

• Actual support may vary by AMD CPU's specification.
  AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode
  1 x slot PCI Express x1, integrovaný v chipsete:
  Supporting PCIe 3.0 x1 mode
  Storage Interface
  1 x M.2 konektor (M2A_CPU), integrovaný v CPU, supporting Socket 3, M kľúč, typ 2280 SSDs:
  AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
  AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
  1 x M.2 konektor (M2B_SB), integrovaný v chipsete, supporting Socket 3, M kľúč, typ 2280 SSDs:
  Supporting PCIe 3.0 x2 SSDs
  4 x SATA 6Gb/s konektory, integrated in the Chipset:
  Support for RAID 0, RAID 1, and RAID 10
  USB
  CPU:
  4 x USB 3.2 Gen 1 ports on the back panel
  Chipset:
  2 x USB 3.2 Gen 1 ports dostupný prostredníctvom vnútorného USB headeru
  6 x USB 2.0/1.1 ports (4 porty na back panel, 2 porty dostupný cez interný USB header)
  Internal I/O Connectors
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  1 x system fan header
  2 x M.2 Socket 3 konektory
  4 x SATA 6Gb/s konektory
  1 x front panel header
  1 x front panel audio header
  1 x USB 3.2 Gen 1 header
  1 x USB 2.0/1.1 header
  1 x Trusted Platform Module (TPM) header (2x6 pin, pre modul GC-TPM2.0_S only)
  1 x Clear CMOS jumper

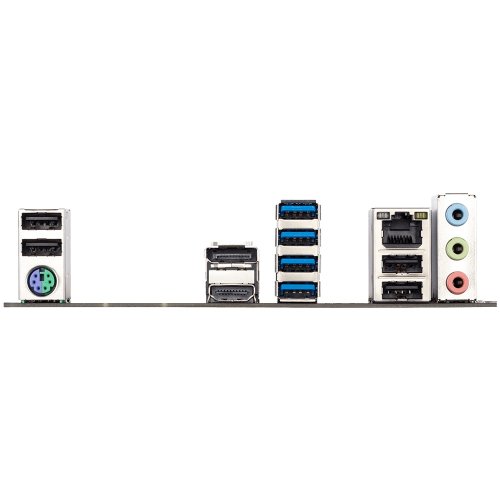

  Back Panel Connectors
  1 x PS/2 keyboard/mouse port
  1 x DisplayPort
  1 x HDMI port
  4 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
  1 x RJ-45 port
  3 x audio jacks
  I/O Controller
  iTE® I/O Controller Chip
  H/W Monitoring
  Voltage detection
  Temperature detection
  Fan speed detection
  Fan fail warning
  Fan speed control

• Ktorý fanúšik speed control function je podporovaný bude depend on the cooler you install.
  BIOS
  1 x 128 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  Unique Features
  Support for APP Center

• Available applications in APP centrum má vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Smart Backup
  System Information Viewer
  Support for Q-Flash
  Bundled Software
  Norton® Internet Security (OEM version)
  LAN bandwidth management softvér
  Operating System
  Support for Windows 11 64-bit
  Support for Windows 10 64-bit
  Form Factor
  Micro ATX Form Factor; 24.4cm x 24.4cm
  Remark
  Pretože rôzne Linux podporujú podmienky chipset vendors, download Linux driver z chipset vendors' website alebo 3rd party website.
  Most hardvér/softvér vendors má longer offer drivers na podporu Win9X/ME/2000/XP. Ak sú ovládače dostupné od venzorov, budú aktualizované na GIGABYTE webovej stránke.
