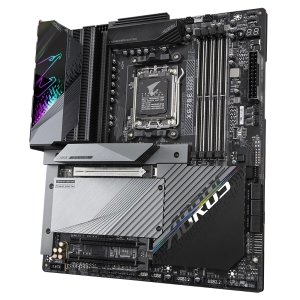

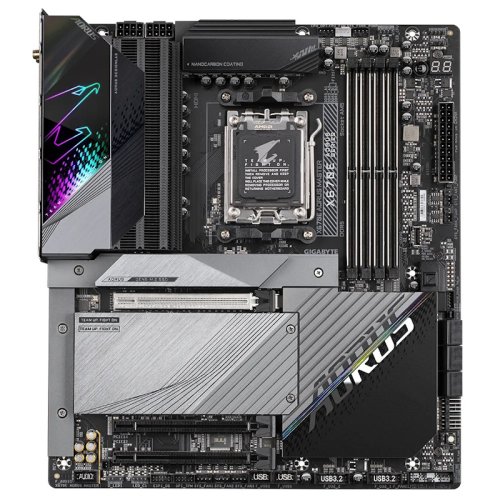

Chipset: AMD X670

Rozmerový formát: E-ATX Form Factor; (30.5cm x 26.9cm) Podpora pre procesory: AMD Ryzen 7000 Series Processors Pätica procesora: AM5

Pozícia na pamäti: 4 x DDR5 DIMM, Dual channel memory architecture Podpora pre pamäte: DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s Max. veľkosť operačnej pamäte: 128 GB (32 GB single DIMM capacity) Podpora pre pamäte typu: non-ECC, XMP

Grafické výstupy: (na základe procesora) *1 x DisplayPort 1.4, maximálne rozlíšenie 3840x2160@144 Hz *1 x USB Type-C port maximálne rozlíšenie 3840x2160@144 Hz *1 x HDMI port, maximálne rozlíšenie 4096x2160@60 Hz

Zvuková karta: Realtek ALC1220-VB CODEC *2/4/5.1/7.1-channel output *Podpora S/PDIF Out

Sieťová karta: *Intel 2.5GbE LAN čip (2.5Gbps/1Gbps/100Mbps) *Wi-Fi 6E AX210 a, b, g, n, ac, ax *Bluetooth 5.3

Rozširujúce sloty: *1 x PCI Express x16 slot, supporting PCIe 5.0 a bežiaci na x16 *1 x PCI Express x16 zásuvka, supporting PCIe 4.0 a bežiaci v x4 *1 x PCI Express x16 zásuvka, supporting PCIe 3.0 and runningat

RAID radič: RAID 0, RAID 1, RAID 10

SATA: 6 x SATA 6Gb/s konektory M.2 : 4 x M.2 Socket 3 konektory

USB: * Interné: *1 USB Type-C header, with USB 3.2 Gen 2x2 support *2 x USB 3.2 Gen 1 headers *2 x USB 2.0/1.1 headers

* Externý: *1 USB Type-C port (DisplayPort), s USB 3.2 Gen 2 support *1 x Type-C port USB, with USB 3.2 Gen 2x2 support *4 x USB 3.2 Gen 2 Type-A ports (red) *4 x USB 3.2 Gen 1 ports *2 x USB 2.0/1.1 ports

Interné porty: 1 x 24-pin ATX main power connector cooling pump headers *2 x addressable LED strip headers *2 x RGB LED strip headers *1 x CPU cooler LED strip/RGB LED strip header *4 x M.2 Socket 3 konektory *6 x SATA 6Gb/s connectors *1 x front panel header *1 x front panel audio header *1 x USB Type-C header, with USB 3.2 Gen 2x2 support *2 x USB 3.2 Gen 1 headers *2 x USB 2.0/1.1 headers *1 x noise detection header *1 x THB_U4 add-in card connector *1 x Trusted Platform Module header (For GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) *1 x power button *1 x reset button *1 x reset jumper *1 x Clear CMOS jumper *2 x temperature sensor headers

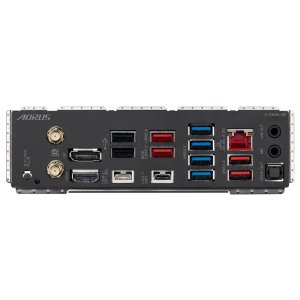

Externé porty: *1 x Q-Flash Plus tlačidlo *2 x SMA antény konektory (2T2R) *1 x DisplayPort *1 x HDMI port *1 x USB Type-C port (DisplayPort), s USB 3.2 Gen 2 support *1 x USB Type-C port, with USB 3.2 Gen 2x2 support *4 x USB 3.2 Gen 2 Type-A ports (red) *4 x USB 3.2 Gen 1 ports *2 x USB 2.0/1.1 ports *1 x RJ-45 port * 1 x optický S/PDIF Out connector *2 x audio jacks

BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash

Stránka výrobcu: http://www.gigabyte.com/Motherboard/X670E-AORUS-MASTER-rev-10#kf
