Procesor
AMD AM4 Socket pre AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ s Radeon™ Vega Graphics/ Athlon™ s Radeon™ Vega Graphics

• Referte na www.asus.com for CPU support list
  Čipová sada
  AMD B450
  Operačná pamäť
  3rd/2nd/1st Gen AMD Ryzén™/ 2nd and 1st Gen AMD Ryzén™ s Radeon™ Vega Graphics/ Athlon™ s Radeon™ Vega Graphics Processors
  4 x DIMM, Max. 128GB, DDR4 4400( OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3300(OC)/3200(OC)/3000(OC)/2800(OC ) Un-buffered Memory *
  Dual Channel Memory Architecture
  ECC Memory (ECC mode) na podporu varies by CPU.

• Pozrite si www.asus.com pre Memory QVL (Qualified Vendors Lists).

• The maximum memory frequency supported varies by processor.
  Grafická karta
  Integrated Graphics v 2. a 1. Gen AMD Ryzen™ s Radeon™ Vega Graphics/ Athlon™ s Radeon™ Vega Graphics Processors *
  1 x D-Sub
  1 x DVI-D
  1 x HDMI 2.0b
  *Graphics specifications majú vary between CPU types.
  Rozširujúce sloty
  3rd/2nd/1st Gen AMD Ryzen™ Processors
  1 x PCIe 3.0 x16 (x16 mode)
  2nd a 1st Gen AMD Ryzen™ s Radeon™ Vega Graphics Processors
  1 x PCIe 3.0 x16 (x8 mode)
  AMD Athlon™ s Radeónom™ Vega Graphics Processors
  1 x PCIe 3.0 x16 (x4 mode)
  AMD B450 chipset
  2 x PCIe 2.0 x1
  Úložný priestor
  Total supports 1 x M.2 slot(s) a 6 x SATA 6Gb/s ports
  3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ s Radeon™ Vega Graphics : *1
  1 x M.2 Socket 3, s kľúčom M, typ 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  Athlon™ s Radeon™ Vega Grafics Processors : *1
  1 x M.2 Socket 3, s kľúčom M, typ 2242/2260/2280/22110 storage devices support (SATA mode)
  3rd/2nd/1st Gen AMD Ryzén™/ 2nd and 1st Gén AMD Ryzén™ s Radeónom™ Vega Graphics/ Athlon™ s Radeónom™ Vega Graphics Processors :
  2 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 10
  AMD B450 chipset:
  4 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 10
  LAN
  Realtek® RTL8111H
  ASUS LANGuard
  Zvuk
  Realtek ALC887/897 7.1-Channel High Definition Audio CODEC *


• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  Audio Feature :

• LED-illuminated design

• Audio Shielding

• Dedicated audio PCB layers

• Premium Japanese audio capacitors


• Choose chassis with HD audio module na front panel na podporu 8-channel audio output.
  USB Porty
  Rear USB Port (Total 6)
  2 x USB 3.2 Gen 2 (up to 10 Gbps) port(s)(2 x Type-A)
  4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  Front USB Port (Total 6)
  2 x USB 3.2 Gen 1 port(s)
  4 x USB 2.0 port(s)
  Softvérových funkcií
  ASUS Exclusive Software
  Armoury Crate


• AURA Creator

• AURA Sync
  AI Suite 3

• Performance and Power Saving Utility
  TurboV EVO
  EPU
  DIGI+ VRM
  Fan Xpert 2+
  PC Cleaner

• EZ update

• System Information
  ASUS CPU-Z
  AI Charger
  ASUS EZ Installer
  DAEMON Tools
  Norton Anti-virus softvér (Free Trial for 60 days)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode
  Špeciálne funkcie ASUS
  ASUS 5X PROTECTION III

• ASUS DIGI+ VRM

• ASUS LANGuard

• ASUS Overvoltage Protection

• ASUS SafeSlot Core

• ASUS Stainless-Steel Back I/O
  ASUS Q-Design

• ASUS Q-DIMM

• ASUS Q-Slot
  ASUS Thermal Solution

• Aluminum heatsink design
  ASUS EZ DIY

• BIOS FlashBack™ button

• BIOS FlashBack™ LED
  AURA Sync

• AURA RGB header
  ASUS Lighting Control

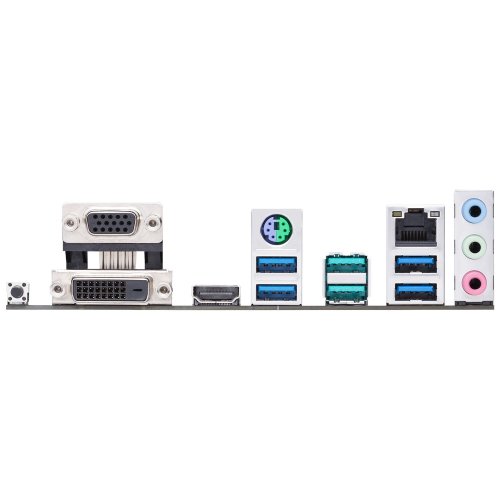

  Zadné vstupy a výstupy
  1 x PS/2 klávesnica/mouse combo port(s)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
  4 x USB 3.2 Gen 1 (blue) Type-A
  3 x Audio jack(s)
  1 x BIOS FlashBack™ Button(s)
  Vnútorné vstupy a výstupy
  1 x CPU Fan connector(s) (1 x 4 -pin)
  2 x Chassis Fan connector(s) (2 x 4 -pin)
  1 x USB 3.2 Gen 1(up to 5 Gbps) konektor(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 s kľúčom M, typ 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x SPI TPM header
  1 x COM port(s) connector(s)
  6 x SATA 6Gb/s connector(s)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio konektor(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
  1 x COM port header
  1 x Speaker connector
  1 x RGB Header

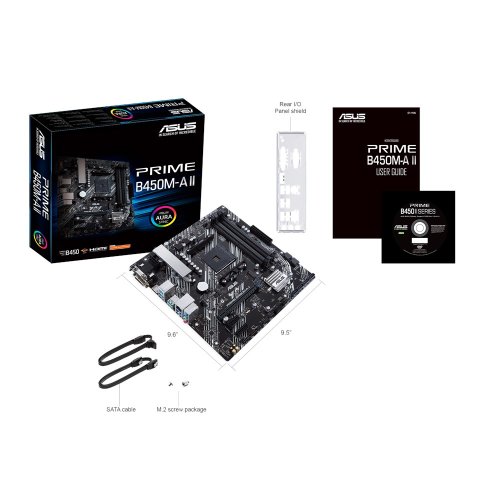

  Príslušenstvo
  User´s manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
  BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
  Operačný systém
  Windows® 10 64-bit
  Windows® 7 64-bit 2
  Formát
  mATX Form Factor
  9.6 palcov x 9.5 palcov (24.4 cm x 24 cm)
  Poznámka
  1 M.2 slot shares bandwidth with SATA6G_5/6 portov, a priradí SATA6G_5/6 portov cannot be used when an M.2 device is installed.
  2*To support Windows 7 64-bit, pre inštaláciu AMD Ryzen™ 2nd Generation alebo Ryzen™ 1st Generation Processor.
