EX3301, WiFi 6 AX1800 5 Port IAD Gigabit Ethernet Gateway with Easy Mesh Support

The Zyxel EX3301-T0 ponúka vysokorýchlostný prístup k internetu s podporou QoS na podporu globálneho trhu demand pre triple-play služby. S budovou 2x2 802.11ax WLAN funkciou a Zyxel MPro Mesh® Solutions, Series prevádza bezproblémové WiFi experimentovanie a superior, feature-rich WiFi connectivity for service providers to deliver high-performance internet access services.

WiFi 6 (11ax) pre vysokú performance and coverage
Zyxel MPro Mesh® Solutions (compliant with EasyMesh standards)
Remote management via TR-069 a TR-181 i2
NAT, firewall s SPI a DoS pre better security
VoIP SIP protokol s 3-way konferenčnými číslami
Multiple SSIDs for various service deployment scenarios
Zyxel-developed OPAL pre vysokú flexibilitu a faster time-to-market
Ecofriendly compact design

Benefits
WiFi 6 technology for superior lag-free performance
Supporting latest WiFi 6 (11ax) štandard, Series offers speeds of up to 1200 Mbps* with 2x2 802.11ax and 574 Mbps* with 2x2 802.11ax. uplink MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA) a prepojenia technológií podporujúca Series k deliver high speed internet pre multi-streaming dátový prístup a optimálne WiFi experimenty bez dead zones.

Zyxel OPAL firmware achieves superior flexibility a faster time-to-market
Compliant s tým istým OPAL firmvér kmeňa, ktorý sa aplikuje na všetkých Zyxel CPEs,Series inherits a rich, field-proven feature set pre garantovaný unchanged user experience even po migraci do nových devices.

Quality of Service (QoS) support
Pomocou QoS features, service providers môžu freely design ich QoS policies a priority mission-critical services such as IPTV a VoIP založený na ich service plán offerings. Tieto improves network efficiency and productivity that enable service providers offer a real multi-play solution to meet the residential user needs.

TR-069/TR-181 issue-2 remote management for lower OPEX
Compliant with TR-069, série signifikantne simplifies deployment complexity a lowers operating and maintenance costs. Additional support to latest TR-181 issue-2 data model and enhances service providers' visibility on subscriber LAN networks offer improved customer assistance.

Ecofriendly compact design
Zyxel sa spája s sustainable future a improving environmentálne well-being of the community. The Zyxel EX3301-T0 adoptuje foldable stands s ultra-thin exterior case to shrink každý balík volume, ktorý improves pallet utilization by approximately 46% pre low carbon emissions.

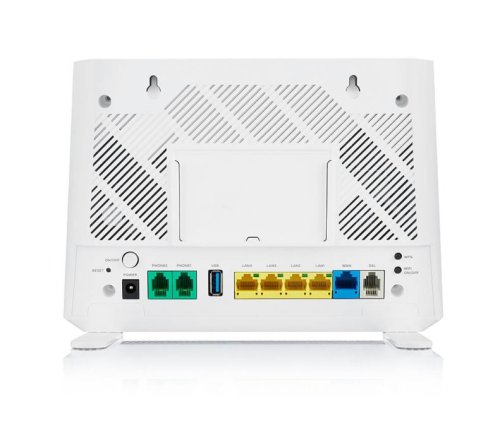

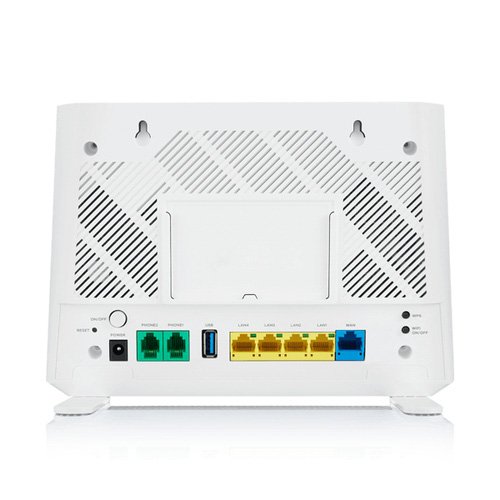

Hardvér
WAN interface
RJ45/GbE

Ethernet port (10/100/1000)
5 (1 for Ethernet WAN)

POTS FXS port
2

USB port
1 (USB 2.0)

Router features
IPv4/IPv6
NAT
Port forwarding
WAN connection types: DHCP, PPPoE
DHCP option 60/121/125
DHCP server na LAN
IGMP v1/v2
IGMP proxy
Dynamic DNS
Wireless

Auto channel selection
WiFi Multimedia (WMM)
Wireless scheduling
Wireless output power management
Multiple SSID up to 4
Wi-Fi Protected Setup (WPS)
Intra-BSS traffic block
MAC address filtering

VLAN
802.1q tag/tag založený VLAN
VLAN to ETH port mapping
Bridged/routed VLAN

WLAN
2.4 GHz 2x2x + 5GHz 2x2x

Network
TCP/IP
Yes

PPPoE
Yes

DHCP client/server/relay
Yes

PPPoA
Yes

DHCP server
Yes

UPnP
Yes

IP policy routing
Yes

Multi-to-multi NAT
Yes

Dynamic DNS (DDNS)
Yes

IGMP
Yes

Management
Web configurator

Yes
TR-069/TR-181 i2

Yes
Remote firmware upgrade

Yes
SNMP

Yes

Button
Power on/off
Wireless on/off
WPS
Reset

Status LEDs indicators
Power
WAN
Internet
LAN
2.4 GHz
5 GHz
WPS
Phone (DX3301-T0 a EX3301-T0)

Power consumption
12V DC, 2A

Package contents
Wireless gateway/IAD
Power adaptér
Ethernet cable
Phone cable
Quick Start Guide

Dimensions (WxDxH)(mm/in.)
220 x 35 x 153/8.66 x 1.38 x 6.02

Weight (g/lb.)
377/0.83
