| Vaša cena | 56,00 € |
| Vaša cena bez DPH | 45,53 € |
| Dostupnosť | Skladom > 5 ks |
| Odosielame dnes | |

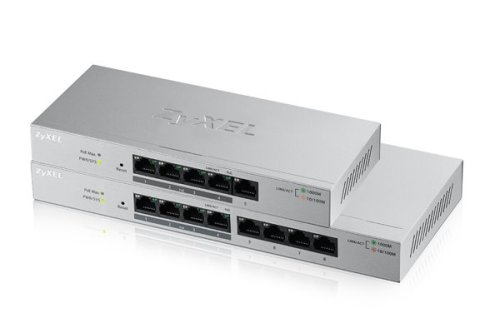

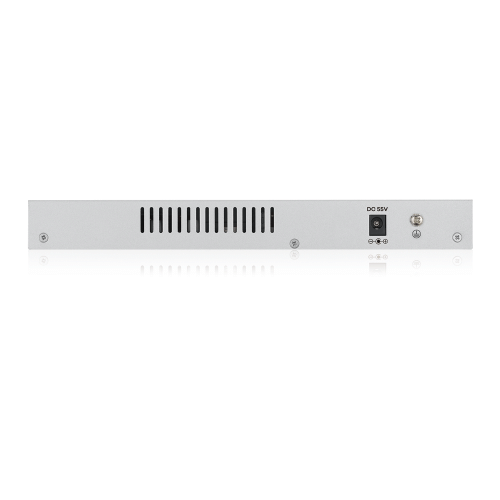

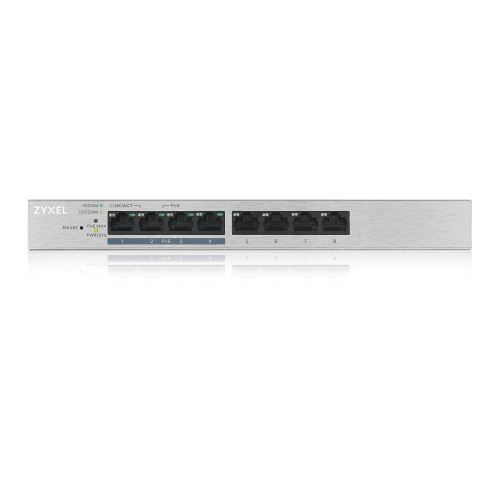

GS1200-8HPV2-EU0101F8-port Desktop Gigabit Web Smart switch: 8x Gigabit metal, 4x PoE (802.3at, 30W), PoE Power budget 60W, IPv6, 802.3az (Green), Easy set up wizard
OVERVIEW
Smart features
ZyXEL GS1200 series Web Manažérsky PoE Gigabit Switch umožňuje jednoduché riadenie pre správnu manažment. Unlike ďalšie rozšírené ale komplexné riadiace spínače, ZyXEL GS1200 série sú suitable pre most užívateľov a vykonávajú affordable riešenie s hlavnou povesťou vrátane PoE, VLAN, QoS, IGMP snooping v1/v2 a v3 kompatibility.
PoE support
ZyXEL GS1200-5HP a GS1200-8HPV2 deliver PoE schopnosti IEEE 802.3at (30 watts/per port s celkovým Power power budget 60 watts) napájanie energie do IP-káble sieťové zariadenia suché as wire. Web GUI manažment je schopný monitorovať výkonný štatút každého portu a/alebo obnoviť sieťové zariadenia.
Easy Configuration
The ZyXEL GS1200 series nie je require any additional softvér. Je to viac visualized with easy, friendly a intuitive Web GUI, ktoré pomáhajú konfigurovať účty, aby sa dokončili v jednoduchých kliknutiach. It is much easier for small office users.
Energy Saving For IEEE 802.3az
The ZyXEL GS1200 series built-in IEEE 802.3az Energy Efficient Ethernet (EEE) funkcia automatickej detekcie sieťových trafík a adjusts power consumptions dynamically to redukcia power consumption počas nízkej link utilization periods.
TECHNICAL SPECS
Model
GS1200-8HP *8-port GbE Web Managed PoE Switch
Chipset
Main chip *GS1200-8HPV2 : Broadcom BCM53128KQLEG
CPU *IC Plus IP210W
Port Density
Total port count *GS1200-8HPV2 : 8
1000BASE-T *GS1200-8HPV2 : 4
1000BASE-T PoE *4
Performance
Switching capacity *GS1200-8HPV2 : 16 Gbps
Packet buffer *GS1200-8HPV2 : 192 KB
MAC address *4K
Jumbo frame *9 KB
LED
Power *Yes
Per port *Yes
PoE power status *Yes (Max)
Power
Input voltage *55 V/1.3 A
Power supply *External
Maximum power consumption (watt) *72
PoE power budget (watt) *60
Physical Specifications
Dimensions (WxDxH) (mm) *GS1200-8HPV2 : 240 x 105 x 26
Weight (kg) *GS1200-8HPV2 : 0.65
Environmental Specifications
Operating temperature *0°C až 40°C
Operating humidity *10% až 90% (non-condensing)
Storage temperature *-40°C až 70°C
Storage temperature *10% až 90% (non-condensing)
Štandard Compliance
IEEE 802.3u 100BASE-TX Ethernet *Yes
IEEE 802.3ab 1000BASE-T Ethernet *Yes
IEEE 802.3az EEE support *Yes
IEEE 802.3x flow control *Yes
IEEE 802.3z 1000BASE-X *Yes
IEEE 802.1p CoS *Yes
IEEE 802.3af PoE *Yes
IEEE 802.3at PoE Plus *Yes (30W per port)
Auto MDI/MDI-X *Yes
IEEE802.1Q VLAN tagging *Yes
Features
Web-based management *Yes
System password *Yes
Port-based VLAN *Yes
VLAN (# Supported) *GS1200-8HPV2 : 8
Port-based QoS *Yes
802.1p CoS *Yes
Broadcast storm control *Yes
Loop detection *GS1200-8HPV2 : Yes
Weighted Round Robin (WRR) priority QoS *Yes
IGMP snooping v1/v2/and v3 compatible *Yes
Supported multicast groups *20
Firmware update *Yes
Certification
EMC *CE, FCC, C-Tick, Class A : Yes
Safety *LVD EN60950-1 : Yes *RoHS compliant : Yes
