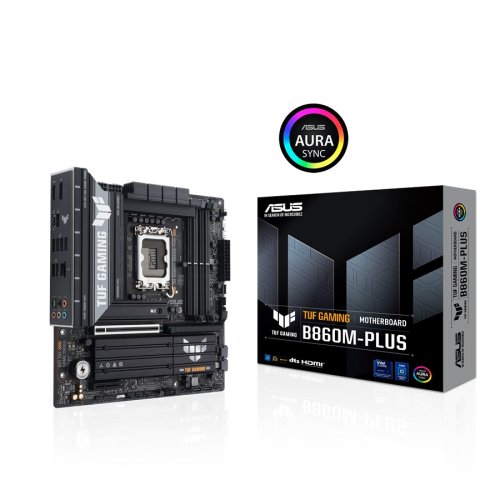

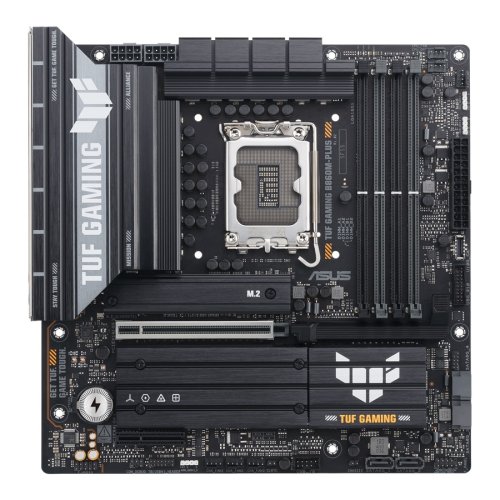

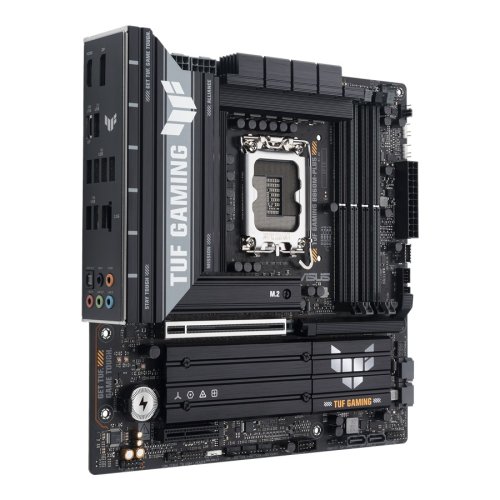

ASUS TUF GAMING B860M-PLUS preberá všetky základné prvky najnovších procesorov Intel Core Ultra (séria 2) a kombinuje ich s funkciami pripravenými na hry a overenou odolnostou.
Táto základná deska, navrhnutá s komponentmi vojenskej kvality, vylepšeným riešením napájania a komplexným chladiacim systémom, presahuje očakávania so skalopevným a stabilným výkonom pre maratónske hranie.
Základné desky TUF GAMING taktiež prechádzajú prísnym testovaním odolnosti, aby sa zaistilo, že zvládnu podmienky, v ktorých ostatní môžu selhať.
Táto platforma poskytuje výkon a konektivitu, ktoré vyžadujú pokročilé AI PC aplikácie.

Špecifikácia:

CPU
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851*
Supports Intel Turbo Boost Technology 2.0 a Intel Turbo Boost Max Technology 3.0 **

• Refer to https://www.asus.com/support/download-center/ for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 podporuje depends on the CPU types.

  Chipset Intel® B860 Chipset

  Memory
  4 x DIMM slots, max. 192GB, DDR5
  Support up to 8800+MT/s (OC), bez ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*"
  Dual Channel Memory Architecture
  DIMM Fit
  Supports Intel® Extreme Memory Profile (XMP) memory module
  ASUS Enhanced Memory Profile III(AEMPIII)

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of production information site or visit https://www.asus.com/support/download-cent-center

• Adjustments budú urobené na základe špecifikácií masovo-výrobných značiek produkovaných na trhu.

• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

  Graphics
  1 x DisplayPort**
  1 x HDMI™ port***
  1 x port USB 20 Gbps (USB Type-C®) supports DisplayPort video output**

• Graphics specifications majú vary between CPU types. Please refer to na www.intel.com for any updates.
  ** Supports max. 4K@60Hz as špecifikované v DisplayPort 1.4.
  ***Supports 4K@60Hz a špecifikované v HDMI 2.1.
  **** VGA resolution support depends on processors' or graphic cards' resolution.
  ***** Keď inštalujete operačný systém, precízne využitie, že váš monitor je pripojený k HDMI portu na zadnej I/O paneli alebo k discrete grafických karte.

  Expansion Slots
  Intel® Core™ Ultra Processors(Series 2)
  1 x PCIe 5.0 x16 slot
  Intel® B860 Chipset
  1 x PCIe 4.0 x4 slot


• Ak chcete získať kompatibilitu zariadenia inštalovaný, prosím referte na https://www.asus.com/support/ pre list podporovaných peripherals.

  Storage
  Total supports 3 x M.2 slotov a 4 x SATA 6Gb/s ports*
  Intel® Core™ Ultra Processors(Series 2)*
  M.2_1 slot (Key M), typ 2280 (supports PCIe 5.0 x4 mode)
  Intel® B860 Chipset
  M.2_2 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  M.2_3 slot (Key M), typ 2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports


• Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

  Ethernet
  1 x Realtek 2.5Gb Ethernet
  TUF LANGuard

  USB
  Rear USB (Total 8 ports)
  1 x USB 20 Gbps port (1 x USB Type-C®)
  2 x USB 10 Gbps ports (2 x Type-A)
  4 x USB 5Gbps ports (4 x Type-A)
  1 x USB 2.0 port (1 x Type-A)
  Front USB (Total 5 ports)
  1 x USB 10Gbps konektor (supports USB Type-C®)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  1 x USB 2.0 headers support 2 additional USB 2.0 ports

• USB Type-C® power delivery output: max. 5V/3A

  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC


• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• Supports up to 24-bit/192 kHz playback"
  Audio Features

• Audio Shielding

• Rear optical S/PDIF out port

• Premium audio capacitors

• Dedicated audio PCB layers

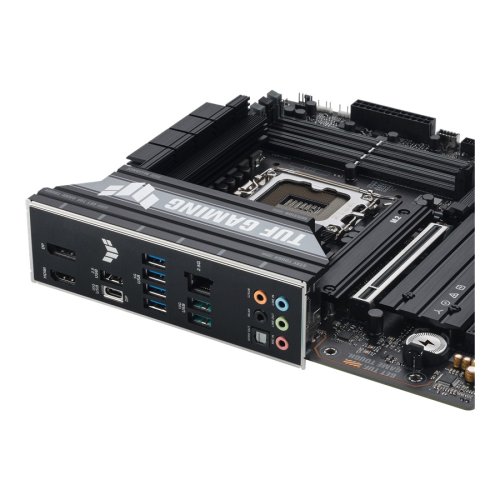

  Back Panel I/O Ports
  1 x USB 20 Gbps port (1 x Type-C® USB s DP Alt mode)
  2 x USB 10 Gbps ports (2 x Type-A)
  4 x USB 5Gbps ports (4 x Type-A)
  1 x USB 2.0 port (1 x Type-A)
  1 x DisplayPort
  1 x HDMI™ port
  1 x Realtek 2.5Gb Ethernet port
  5 x Audio jacks
  1 x Optical S/PDIF out port

  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  3 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connectors
  Storage related
  3 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 10Gbps konektor (supports USB Type-C®)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  1 x USB 2.0 header supports 2 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Clear CMOS header
  1 x Chassis Intrusion header
  1 x Front panel audio header (F_AUDIO)
  1 x 10-1 pin Front System Panel header
  1 x Thunderbolt™ (USB4®) header

  Special Features
  ASUS TUF PROTECTION

• DIGI+ VRM (- Digital power design with DrMOS)

• ESD Guards

• TUF LANGuard

• Overvoltage Protection

• SafeSlot

• Stainless-steel back I/O
  ASUS Q-Design

• M.2 Q-Latch

• PCIe Slot Q-Release

• Q-Dashboard

• Q-DIMM

• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  ASUS Thermal Solution

• M.2 heatsinks

• VRM heatsink design
  ASUS EZ DIY

• CPU Socket lever protector

• ProCool

• Pre-mounted I/O shield

• SafeDIMM
  AURA Sync

• Addressable Gen 2 headers

  Softvér Features
  ASUS Exclusive Software
  Armoury Crate

• AURA Creator

• AURA Sync

• Fan Xpert 2+

• Power Saving
  ASUS DriverHub
  TurboV Core
  TUF GAMING CPU-Z
  DTS Audio Processing
  Norton 360 for Gamers (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash

• ASUS UEFI BIOS EZ Mode

• ASUS MyHotkey
  NPU Boost

  BIOS
  2 x 128 Mb Flash ROM, UEFI AMI BIOS

  Manažment WOL by PME, PXE

  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  2 x M.2 Rubber Packages
  1 x TUF Gaming sticker
  1 x Screw package for M.2 SSD
  Documentation
  1 x Quick štart guide

  Operating System Windows 11, Windows 10 64-bit

  Form Factor micro-ATX Form Factor
  9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
