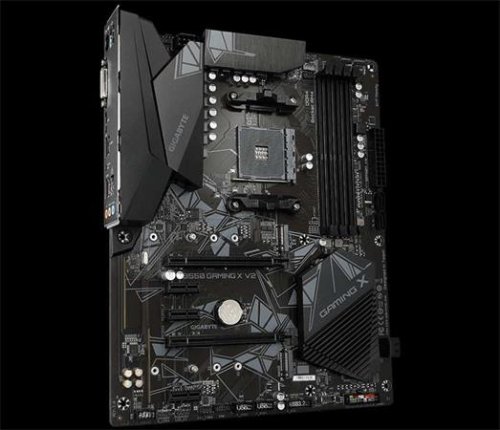

AMD B550 gaming matka s 10 + 3 fázami digitálneho dvojitého dizajnu, rozšíreným povrchom Heatsinks, PCIe 4.0 x16 Slot, dvojitým PCIe 4.0/3.0 x4 M.2 , gigabyte gaming LAN s badwidth management, front USB Type-C ™, RGB FU

Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ a 3rd Gen Ryzen™ s Radeon™ Graphics Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
Ultra Durable™ PCIe 4.0 Ready x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
Front USB 3.2 Gen1 Type-C™ a HDMI & DVI-D pre multiple displej
High Quality Audio Capacitors a Audio Noise Guard for Ultimate Audio Quality
RGB FUSION 2.0 support Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS bez inštalácie CPU, Memory and Graphics Card
Anti-Sulfur Resistors Design

CPU
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ a 3rd Gen Ryzen™ s Radeon™ Graphics Processors
(Please refer "CPU Support List" pre viac informácií.)
Chipset
AMD B550
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
AMD Ryzen™ 5000 series processors:
Support for DDR4 4266( OC )/4000( OC )/3866( OC )/3800( OC )/3733( OC )/3600( OC )/3466( OC )/ 3300 ( 3 ) 3300( OC .) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen™ Processors:
Support for DDR4 4400( OC .) / 4000( OC .) / 3600( OC .) / 3333( OC .) /3200/2933/2667/2400/2133 MHz memory modules
3rd Gen AMD Ryzen™ s Radeónom™ Graphics processors:
Support for DDR4 4733 ( OC ) / 4600 ( OC ) / 4400 ( OC ) / 4000 ( OC ) / 3600 ( OC ) / 3333 ( OC ) / 3200/2933/2667/240
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" pre viac informácií.)
Onboard Graphics
Integrovaný v 3. generácii AMD Ryzen™ s Radeónom™ Graphics processors:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

• Port DVI-D nie je podporovaný D-Sub connection by adaptér.
  1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

• Support pre HDMI 2.1 verziu, HDCP 2.3, a HDR.
  Maximum shared memory of 16 GB
  Audio
  Realtek® ALC887 kódec
  High Definition Audio
  2/4/5.1/7.1-channel

• To configure 7.1-channel audio, budete potrebovať otvorený zvukový softvér a vyberte Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website pre detaily on configuring the audio software.
  LAN
  Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
  Expansion Slots
  1? x PCI Express x16 slot (PCIEX16), integrovaný v CPU:
  3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
  3. generácia AMD Ryzen™ s Radeónom™ Graphics processors support PCIe 3.0 x16 mode

• Pre optimálnu performance, ak je len jeden PCI Express grafika karta je nainštalovaná, musí byť nainštalovaná v PCIEX16 slot.
  1 x slot PCI Express x16 (PCIEX2), integrovaný v chipset:
  Supporting PCIe 3.0 x2 mode
  3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrovaný v chipsete:
  Supporting PCIe 3.0 x1 mode
  Storage Interface
  1? x M.2 konektor (M2A_CPU), integrovaný v CPU, supporting Socket 3, M kľúč, typ 2242/2260/2280/22110 SSDs:
  3rd generácie AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
  3. generácia AMD Ryzen™ s Radeon™ grafickými procesormi SATA a PCIe 3.0 x4/x2 SSDs
  1 x M.2 konektor (M2B_SB), integrovaný v chipsete, podporujúci Socket 3, M kľúč, typ 2242/2260/2280/22110 SSDs:
  Supporting SATA and PCIe 3.0 x4/x2 SSDs
  4 x SATA 6Gb/s konektory, integrated in the Chipset:
  Support for RAID 0, RAID 1, and RAID 10
  USB
  Chipset:
  1 x USB 3.2 Gen 2 Type-A port (red) na zadnom paneli
  3 x USB 3.2 Gen 1 ports on the back panel
  Chipset:
  1 x port USB Type-C™ s USB 3.2 Gen 1 support, dostupný prostredníctvom vnútorného USB headeru
  2 x USB 3.2 Gen 1 ports dostupný prostredníctvom vnútorného USB headeru
  6 x USB 2.0/1.1 ports (2 porty na zadnom paneli, 4 porty dostupné cez vnútorné USB headers)
  Internal I/O Connectors
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  1 x water cooling CPU fan header
  3 x system fan headers
  2 x addressable LED strip headers
  2 x RGB LED strip headers
  1 x CPU cooler LED strip/RGB LED strip header
  2 x M.2 Socket 3 konektory
  4 x SATA 6Gb/s konektory
  1 x front panel header
  1 x front panel audio header
  1 x port Type-C™ s USB 3.2 Gen 1 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module (TPM) header (2x6 pin, pre modul GC-TPM2.0_S only)
  1 x Clear CMOS jumper
  Back Panel Connectors
  2 x USB 2.0/1.1 ports
  1 x PS/2 keyboard/mouse port
  1 x DVI-D port
  1 x HDMI port
  3 x USB 3.2 Gen 1 ports
  1 x USB 3.2 Gen 2 Type-A port (red)
  1 x Q-Flash Plus button
  1 x RJ-45 port
  3 x audio jacks
  I/O Controller
  iTE® I/O Controller Chip
  H/W Monitoring
  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Overheating warning
  Fan fail warning
  Fan speed control

• Ktorý fanúšik speed control function je podporovaný bude depend on the cooler you install.
  BIOS
  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  Unique Features
  Support for APP Center

• Available applications in APP centrum má vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
  Support for Q-Flash Plus
  Support for Q-Flash
  Support for Xpress Install
  Bundled Software
  Norton® Internet Security (OEM version)
  Realtek® 8118 Gaming LAN Bandwidth Control Utility
  Operating System
  Support for Windows 10 64-bit
  Form Factor
  ATX Form Factor; 30.5cm x 24.4cm
