Chipset: AMD B550

Rozmerový formát: mATX Form Factor (244 mm x 244 mm) Podpora pre procesory: AMD Socket AM4 pre AMD Ryzen ™ 5000 Series / 4000 G-Series / 3000 Series Desktop Processors Pätica procesora: AM4 TPM 2.0 IC Onboard - TPM 2.0 MB

Pozícia na pamäti: 4x DDR4 DIMM Podpora pre pamäte: *AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors - 4600( OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866( OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *AMD Ryzen™ 4000 G-Series Desktop Processors 4800( OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/ 3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Max. veľkosť operačnej pamäte: 128 GB Podpora pre pamäte typu: DDR4 *Dual Channel Memory Architecture *ECC Memory mode) support varies by CPU.

Grafická karta: Integrated Graphics Processor (na základe procesora) *2x DisplayPort *1x HDMI 2.1(4K@60HZ)

Zvuková karta: *Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC

Sieťová karta: *Realtek RTL8111H 1Gb Ethernet

Rozširujúce sloty: * AMD Ryzen ™ 5000 Series/ 3000 Series Desktop Processors * 1x PCIe 4.0 x16 (x16 mode) * AMD Ryzen ™ 4000 G-Series Desktop Processors * 1x PCIe 3.0 x16 (x16 mode) * x4 *1x PCI

RAID radič: 0, 1, 10

SATA: *4x SATA 6Gb/s port(s)

M.2 : * AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : *1x M.2_1 socket 3, s M Key, Type 2242/2260/2280 (PCIE 4.0 x4 a SATA modes) storage devices support * AMD Ryzen G-Series Processors : *1x M.2_1 socket 3, s M Key, Type 2242/2260/2280 (PCIE 3.0 x4 a SATA modes) storage devices support * AMD B550 Chipset *1x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 a SATA modes) storage devices support

USB: * zadné USB porty ( celkom 6 ) *2x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) *2x USB 3.2 Gen 1 port(s)(2 x Type- A) *2x USB 2.0 port(s)(2 x Type-A) * predné USB porty ( celkom 7 ) *4x USB 3.2 Gen 1 port(s)(4 x Type-A) *3x USB 2.0 port(s)

Interné porty: *1x CPU Fan connector(s) *2x Chassis Fan connector(s) *2x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) *2x USB 2.0 konektor(s) support(s) additional 3 USB 2.0 port(s) *2x M.2 Socket 3 s kľúčom M, typ 2242/2260/2280 storage devices support (SATA mode a X4 PCIE mode) *1x M. 2 s E-key pre Wi-Fi moduly *1x LPT header *4x SATA 6Gb/s konektor(s) *1x Thunderbolt header(s) *1x 24-pin EATX Power connector(s) *1x 8-pin EATX 12V Power connectors *1x Front panel audio konektor(s) (AAFP) *1x SMBus header(s) *1x System panel(s) *1x Clear CMOS jumper(s) *1x COM port header *1x Chassis intrusion header *1x LPC Debug header * 1x Speaker connector

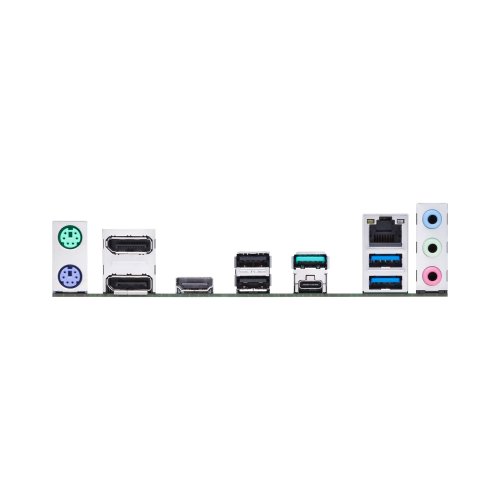

Externé porty: *1x Realtek® RTL8111H *1x PS/2 klávesnica (purple) *1x PS/2 myš (green) *2x DisplayPort *1x HDMI *2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type- C®) *2x USB 3.2 Gen 1 Type-A *2x USB 2.0 *3x Audio jack(s)

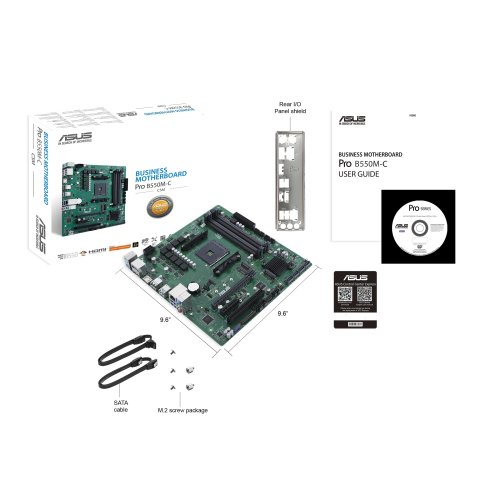

Obsah balenia: *1x ACC Express Activation Key Card *I/O Shield *2x SATA 6Gb/s cable(s) *1x Supporting DVD *User manual *3x M.2 SSD screw package(s) *2x M.2 SSD Hex screw packages

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobcu: https://www.asus.com/Motherboards-Components/Motherboards/All-series/Pro-B550M-C-CSMhttps://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11- ready/ https://www.asus.com/support/FAQ/1046215
