Overview
Dimensions
160 x 40.4 x 40.55 mm
(6.3 x 1.59 x 1.6")
Integrated Camera
Yes
NFC Card & Keyfob Access
Yes
PIN Access
Yes
Apple Touch Pass
Yes
Mobile Unlock
Yes
Two-Way Intercom & Doorbell Access
Yes
Weatherproofing
IP55
UniFi Application Suite
Access
Mechanical
Weight
136 g (4.8 oz)
Enclosure Material
Polycarbonate, glass

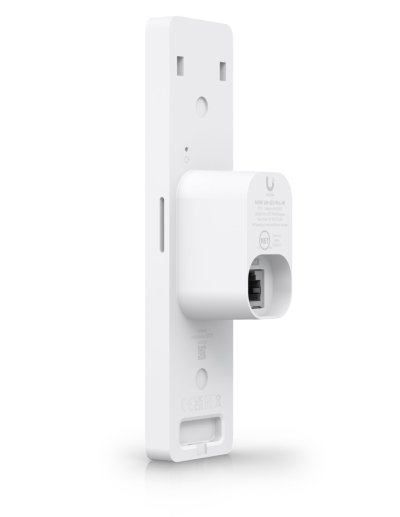

Mount Material
Aluminum alloy
Mounting
Wall, gang-box mount (Included)
Angle mount, junction box (Optional)
Hardvér
Indoor and Outdoor Use
Yes
Ambient Operating Temperature
Device: -30 až 45 ° C (-22 až 113 ° F)
Display: -10 až 45 ° C (14 až 113 ° F)
Ambient Operating Humidity
5 to 90% noncondensing
Networking Interface
(1) GbE RJ45 port
Connectivity
BLE 4.2
NFC
Power Method
PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption
6W
Supported Voltage Range
48V DC
ESD/EMP Protection
Air: ±15kV, kontakt: ±8kV
Sensors
Proximity sensor

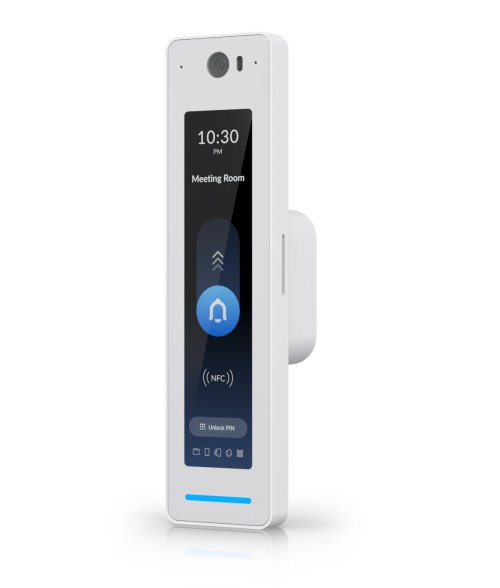

Display
120 mm (4.7") diagonal
Touch Screen Technology
Capacitive touch
Display Luminance
480 nits (Typical)
Screen Orientation
Portrait
Resolution
1280 x 286 px
Microphone
Yes
Speaker
Yes
LEDs
R/G/B/W/Amber Learn More
Button
(1) Factory-reset
NFC Frequency
13.56 MHz
NFC Read Range
< 30 mm (1.18'')
NFC Technology
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum značky T1T, T2T, T3T, T4T a T5T
ECP 2.0
PoE Cabling Requirements
Cat 5e cabling is minimum performance category recommended. Performance category utilized should match the transmission speed required at the installation site.
Minimálny drôt gauge, ktorý sa dá pripojiť medzi PSE alebo výkonným injectorom a PD shall be 26 AWG (0.13 mm2 ) pre patch cords; 24 AWG (0.21 mm2 ) pre horizontálne alebo riser cable.
UL 294 Level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
UL 294 Statement
Compliance with IEEE 802.3 specifications nie je verified as part of UL 294.
Equipment je integrovaný do kompletnej s kapitolou Národného elektrického kódu, ANSI/NFPA 70, Article 725.121, Power Sources pre 2. a 3. triedu Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-G3-A-W/UA-G3-A-B, V01
Softvér
Management Application
Access
Software Information
The software version can be checked at
https://unifi.ui.com
