Chipset: AMD B550

Rozmerový formát: mATX Form Factor (244 mm x 244 mm) Podpora pre procesory: AMD AM4 Socket pre AMD Ryzen ™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Pätica procesora: AM4

Pozícia na pamäti: 4x DDR4 DIMM Podpora pre pamäte: *AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors - 4600( OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/24 *AMD Ryzen™ 4000 G-Series Desktop Processors - 4800( OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC) /3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Max. veľkosť operačnej pamäte: 128 GB Podpora pre pamäte typu: DDR4 *Dual Channel Memory Architecture *ECC Memory (ECC mode)

Grafická karta: Integrated Graphics Processor (na základe procesora) *1x D-Sub *1x DVI-D *1x HDMI 2.1(4K@60HZ)

Zvuková karta: *Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC

Sieťová karta: *Realtek RTL8111H 1Gb Ethernet

Rozširujúce sloty: * AMD Ryzen ™ 5000 Series/ 3000 Series Desktop Processors * 1x PCIe 4.0 x16 (x16 mode) * AMD Ryzen ™ 4000 G-Series Desktop Processors * 1x PCIe 3.0 x16 (x16 mode) * AMD x1

RAID radič: 0, 1, 10

SATA: *4x SATA 6Gb/s port(s)

M.2 : * AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : *1x M.2_1 socket 3, s M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 a SATA modes) storage devices Desktop Processors : *1x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 a SATA modes) storage devices support * AMD B550 Chipset *1x M.2_2 socket 3,2 M2 (PCIE 3.0 x4 a SATA modes) storage devices support

USB: * zadné USB porty ( celkom 6 ) *2x USB 3.2 Gen 2 port(s)(2 x Type-A) *4x USB 3.2 Gen 1 port(s)(4 x Type-A) * predné USB porty ( celkom 6 ) *2x USB 3.2 Gen 1 port(s)(0 x Type-A Type-A)

Interné porty: *1x CPU Fan konektor(s) *1x CPU OPT Fan konektor(s) *2x Chassis Fan konektor(s) *2x Aura RGB Strip Headers *1x Addressable Gen 2 header(s) *1x USB 3.2 Gen 1(up to 5Gbps) konektor2(3) port(s) *2x USB 2.0 konektor(s) support(s) additional 4 USB 2.0 port(s) *1x M.2 Socket 3 with M Key, typ 2242/2260/2280/22110 storage devices support (SATA mode a X3 PCIE mode) * 1 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) *1x SPI TPM header *4x SATA 6Gb/s konektor(s) *1x S/PDIF out header(s) *1x 24-pin EATX Power konektor(s) *1x 8- connector(s) (AAFP) *1x Clear CMOS jumper(s) *1x System panel connector *1x COM port header *1x Speaker connector

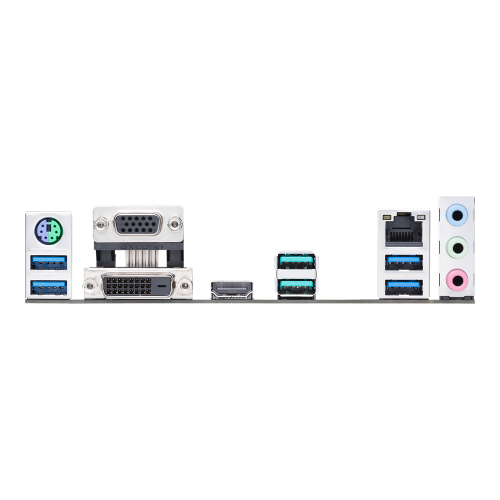

Externé porty: *1x PS/2 klávesnica/mouse combo port(s) *1x DVI-D *1x D-Sub *1x HDMI *1x LAN(RJ45) port(s)

Obsah balenia: *1 x ACC Express Activation Key Card *I/O Shield *2x SATA 6Gb/s cable(s) *1x Supporting DVD *User manual *1x M.2 SSD screw package(s)

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
