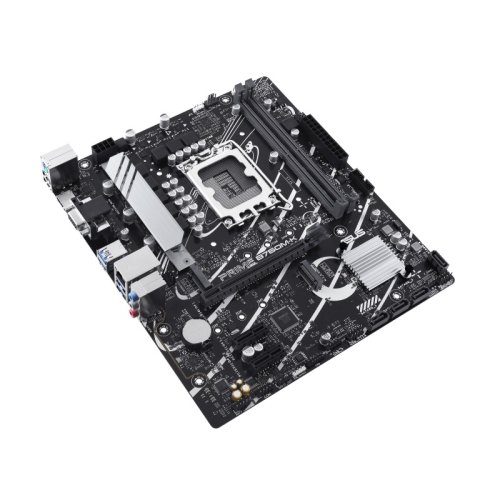

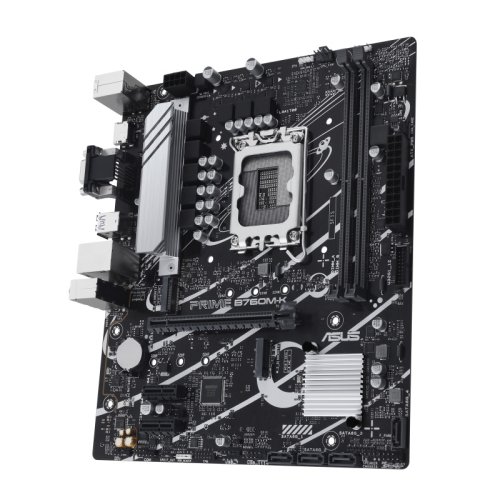

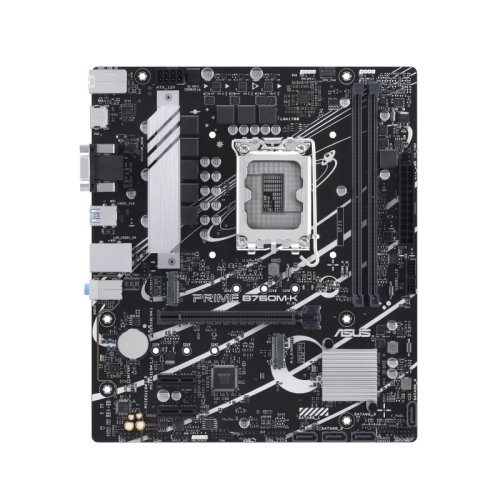

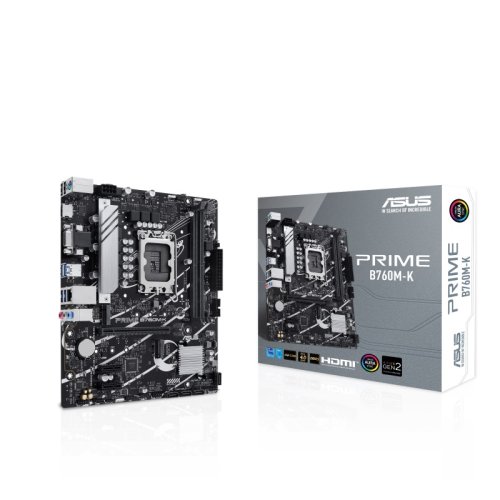

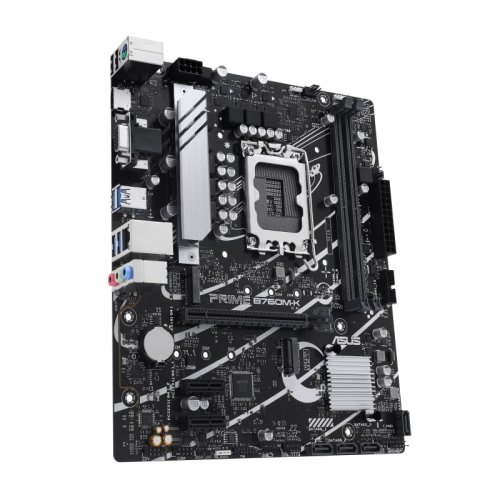

Základná deska ASUS Prime B760M-K s procesorom Intel® B760 LGA 1700 vo formáte mATX, PCIe 4.0, dva PCIe 4.0 M.2 sloty, DDR5, Realtek 2,5 Gbit Ethernet, VGA, HDMI ™, SATA 6 Gbit/s, predný USB .
Pätica Intel® LGA 1700: Pripravené pre procesory Intel® 12. a 13. generacie
Ultra rýchla konektivita: PCIe 4.0, dva PCIe 4.0 M.2 sloty, Realtek 2,5 Gbit Ethernet a podpora predného USB 3.2 Gen 1
Komplexné chladenie: VRM chladič, PCH chladič, headery hybridných ventilátorov a Fan Xpert 2+
Osvetlenie Aura Sync RGB: Integrované adresovateľné headery 2. generácie a header Aura RGB pre RGB LED pásky, ľahko synchronizovateľné s hardvérom podporujúcim Aura Sync

Špecifikácia:

Model
PRIME B760M-K
News & Updates
2024/08/12: Nový BIOS with Intel microcode (0x129) posilňuje stabilitu Intel Core 13. a 14. Gen desktop processors is now available. Please visit support site pre najnovšie BIOS updates.

CPU
Intel® Socket LGA1700 pre Intel® CoreTM 14. & 13. Gen Processors, Intel® CoreTM 12. Gen, Pentium® Gold and Celeron® Processors*
Supports Intel Turbo Boost Technology 2.0 a Intel Turbo Boost Max Technology 3.0 **

• Refer to www.asus.com pre CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 podporuje depends on the CPU types.

  Chipset
  Intel® B760 Chipset

  Pamäť
  2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/660 0(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ .

• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

  Grafika
  1 x VGA port
  1 x HDMITM port**

• Graphics specifications majú vary between CPU types. Please refer to na www.intel.com for any updates.
  ** Supports 4K@60Hz a špecifikované v HDMITM 2.1.

  Rozširujúce sloty
  Intel® CoreTM Processors (14. & 13. & 12. Gen)
  1 x PCIe 4.0 x16 slot
  Intel® B760 Chipset
  2 x PCIe 4.0 x1 slots


• Ak chcete získať kompatibilitu zariadenia inštalovaný, prosím referte na https://www.asus.com/support/ pre list podporovaných peripherals.

  Úložisko
  Total supports 2 x M.2 slotov a 4 x SATA 6Gb/s ports*
  Intel® CoreTM Processors (14. & 13. & 12. Gen)
  M.2_1 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  Intel® B760 Chipset
  M.2_2 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports


• Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

  Ethernet
  1 x Realtek 2.5Gb Ethernet

  USB
  Rear USB (Total 6 ports)
  4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  Front USB (Total 5 ports)
  1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support 3 additional USB 2.0 ports

  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*


• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• Supports up to 24-bit/192 kHz playback
  Audio Features

• Audio Shielding

• Premium audio capacitors

• Dedicated audio PCB layers


• Chassis s audio modulom HD v prednom paneli je potrebný na podporu 7.1 Surround Sound audio output.

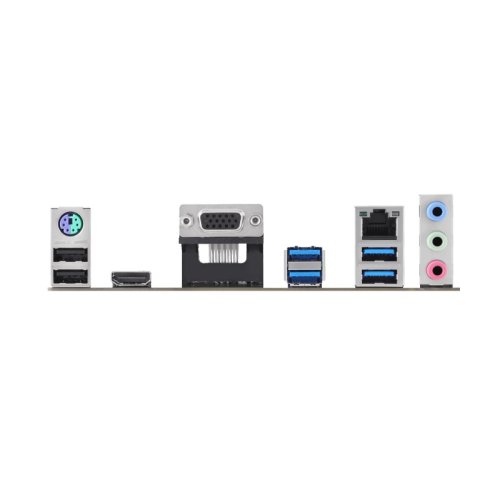

  Porty na zadnom paneli
  4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x VGA port
  1 x HDMITM port
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo port

  Vnútorné konektory
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  2 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support 3 additional USB 2.0 ports
  Miscellaneous
  2 x Addressable Gen 2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x S/PDIF Out header
  1 x Speaker header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin System Panel header

  Špeciálne funkcie
  ASUS 5X PROTECTION III


• DIGI+ VRM

• LANGuard

• Overvoltage Protection

• SafeSlot Core

• Stainless-Steel Back I/O
  ASUS Q-Design

• Q-DIMM

• Q-LED Core

• Q-Slot
  ASUS EZ DIY

• ProCool
  ASUS Thermal Solution

• VRM heatsink design
  Aura Sync

• Aura RGB header

• Addressable Gen 2 headers

  Softvérové funkcie
  ASUS Exclusive Software
  Armoury Crate

• Aura Sync

• Fan Xpert 2+

• Power Saving

• Two-Way AI Noise Cancellation
  AI Suite 3

• DIGI+ VRM

• PC Cleaner
  ASUS CPU-Z
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode

  BIOS
  128 Mb Flash ROM, UEFI AMI BIOS
  Správa
  WOL by PME, PXE

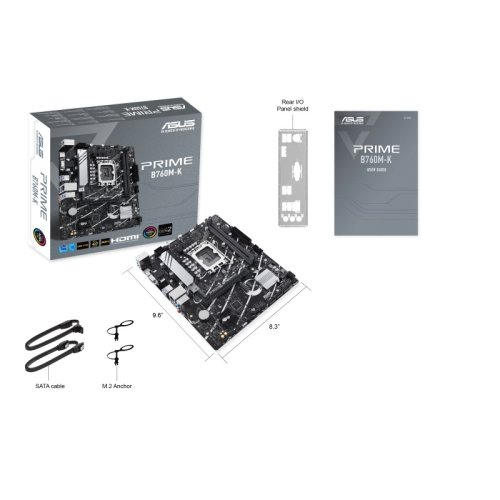

  Príslušenstvo
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x I/O Shield
  2 x M.2 anchors
  Documentation
  1 x User guide

  Operačný systém
  Windows® 11, Windows® 10 64-bit

  Formát ATX
  mATX Form Factor
  9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
