Intel® H610 (LGA 1700) mic-ATX motherboard s DDR4, PCIe 4.0, dual M.2 slots, Intel® 1 Gb Ethernet, WIFI 5, DisplayPort, HDMI®, D-Sub, USB 3.2 Gen 2 porty, SATA 6 Gbps, Addressable
Intel® LGA 1700 socket: Ready for 13. & 12. Gen Intel® processors
Comprehensive cooling: VRM heatsink, PCH heatsink a Fan Xpert 2+
Ultrafast connectivity: 32 Gbps M.2 slot, Intel® 1 Gb Ethernet, WIFI 5 a USB 3.2 Gen 2 ports
Aura Sync RGB: Onboard addressable Gen 2 headers pre RGB LED strips, easily synced with Aura Sync-capable hardware

Model

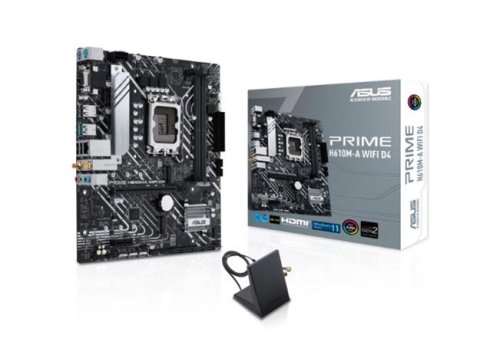

PRIME H610M-A WIFI D4
CPU
Intel® Socket LGA1700 pre 13. Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel Turbo Boost Technology 2.0 a Intel Turbo Boost Max Technology 3.0 **

• Refer to www.asus.com pre CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 podporuje depends on the CPU types.
  Chipset
  Intel® H610 Chipset

  Memory
  2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

  Dual Channel Memory Architecture

  Supports Intel® Extreme Memory Profile (XMP)

  Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

  Graphics
  1 x DisplayPort *

  1 x D-Sub port

  1 x HDMI® port***


• Graphics specifications majú vary between CPU types. Please refer to na www.intel.com for any updates.

  ** Supports max. 4K@60Hz as špecifikované v DisplayPort 1.4.

  *** Supports 4K@60Hz a špecifikované v HDMI 2.1.

  Expansion Slots
  Intel® 13. & 12. Gen Processors

  1 x PCIe 4.0 x16 slot

  Intel® H610 Chipset

  1 x PCIe 3.0 x1 slot

  Storage
  Total supports 2 x M.2 slots a 4 x SATA 6Gb/s ports

  Intel® H610 Chipset

  M.2_1 slot (Key M), typ 2242/2260/2280 (supports PCIe 3.0 x4 mode)

  M.2_2 slot (Key M), typ 2242/2260/2280 (supports PCIe 3.0 x2 mode)

  4 x SATA 6Gb/s ports

  Ethernet
  1 x Intel® 1Gb Ethernet
  Wireless & Bluetooth
  Wi-Fi 5

  Wi-Fi 5 (802.11 a/b/g/n/ac)

  Supports 2.4/5GHz frequency band

  Bluetooth v5.0

  USB
  Rear USB (Total 6 ports)

  2 x USB 3.2 Gen 2 ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)

  Front USB (Total 5 ports)

  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

  2 x USB 2.0 headers support additional 3 USB 2.0 ports

  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*



• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking


• Supports up to 24-bit/192 kHz playback

  Audio Features


• Audio Shielding


• Premium audio capacitors


• Dedicated audio PCB layers



• Chassis s audio modulom HD v prednom paneli je potrebný na podporu 7.1 Surround Sound audio output.

  Back Panel I/O Ports
  2 x USB 3.2 Gen 2 ports (2 x Type-A)

  4 x USB 2.0 ports (4 x Type-A)

  1 x DisplayPort

  1 x HDMI® port

  1 x D-Sub port

  1 x Wi-Fi Module

  1 x Intel® 1Gb Ethernet port

  3 x Audio jacks

  1 x PS/2 Keyboard (purple) port

  1 x PS/2 Mouse (green) port

  Internal I/O Connectors
  Fan and Cooling related

  1 x 4-pin CPU Fan header

  2 x 4-pin Chassis Fan headers

  Power related

  1 x 24-pin Main Power connector

  1 x 8-pin +12V Power connector

  Storage related

  2 x M.2 slots (Key M)

  4 x SATA 6Gb/s ports

  USB

  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

  2 x USB 2.0 headers support additional 3 USB 2.0 ports

  Miscellaneous

  3 x Addressable Gen 2 headers

  2 x AURA RGB headers

  1 x Clear CMOS header

  1 x Front Panel Audio header (AAFP)

  1 x COM Port header

  1 x S/PDIF Out header

  1 x Speaker header

  1 x SPI TPM header (14-1pin)

  1 x 10-1 pin System Panel header

  Special Features
  ASUS 5X PROTECTION III



• DIGI+ VRM


• LANGuard


• Overvoltage Protection


• SafeSlot Core


• Stainless-Steel Back I/O

  ASUS Q-Design


• Q-DIMM


• Q-Slot

  ASUS Thermal Solution


• VRM heatsink design

  AURA Sync


• AURA RGB headers


• Addressable Gen 2 headers

  Softvér Features
  ASUS Exclusive Software

  Armoury Crate


• AURA Creator


• AURA Sync


• Fan Xpert 2+

  AI Suite 3


• Performance And Power Saving Utility

  TurboV EVO

  EPU

  DIGI+ VRM

  ASUS CPU-Z

  MyASUS

  Norton Anti-virus softvér (Free Trial version)

  WinRAR

  UEFI BIOS

  ASUS EZ DIY


• ASUS CrashFree BIOS 3


• ASUS EZ Flash 3


• ASUS UEFI BIOS EZ Mode

  BIOS
  128 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE
  Accessories
  Cables

  2 x SATA 6Gb/s cables

  Miscellaneous

  1 x ASUS Wi-Fi moving antennas

  1 x I/O Shield

  1 x M.2 SSD screw package

  Installation Media

  1 x Support DVD

  Documentation

  1 x User guide

  Operating System
  Windows® 11 64-bit, Windows® 10 64-bit
  Form Factor
  mATX Form Factor

  9.6 in x 8.3 in (24.4 cm x 21.1 cm)
