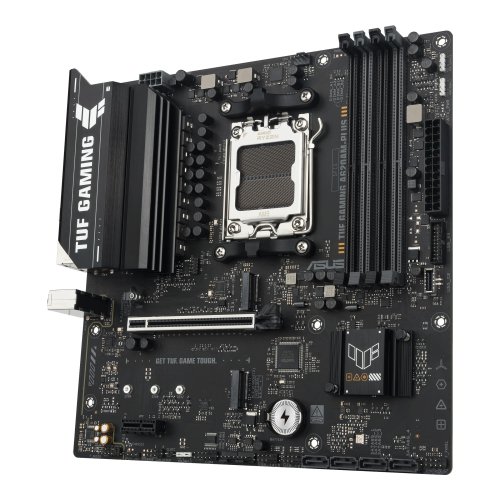

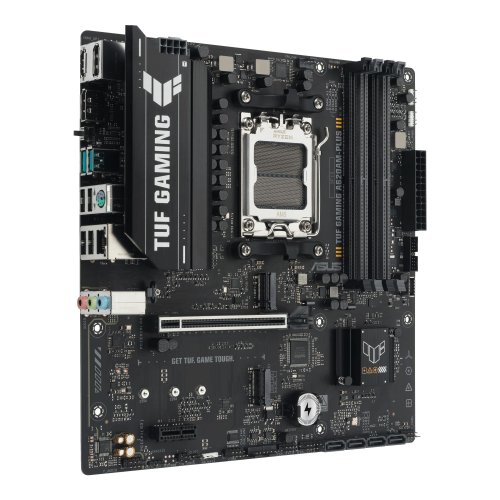

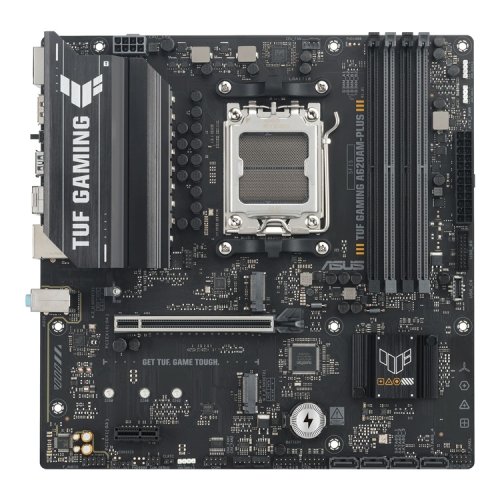

ASUS TUF GAMING A620AM-PLUS

CPU: Socket AM5 pre AMD Ryzen radu 9000, 8000 a 7000 Chipset: AMD A620A Pamäť: 4 sloty DIMM, až 256 GB DDR5 Podpora ECC aj ne-ECC nebufferovaných pamätí (Enhanced Memory Profile) Dvojkanálová architektúra

Grafika (integrované výstupy): 2× DisplayPort 1× HDMI

Rozširujúce sloty AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (support x 16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot 3.0 x1 slot

Úložisko: 2× M.2 sloty 4× SATA 6 Gb/s

Sieť: Realtek 2,5 Gb Ethernet s TUF LANGuard

USB: Zadný USB 2 x USB 10 Gbps portov (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Predný USB 1 x USB 5 Gbps konektor (supports USB Type-C®) 1 x USB 5 Gbps header supports 2 additional USB 5 Gbps ports 4 2.0 ports

Audio: Realtek 7.1 Surround HD Audio CODEC

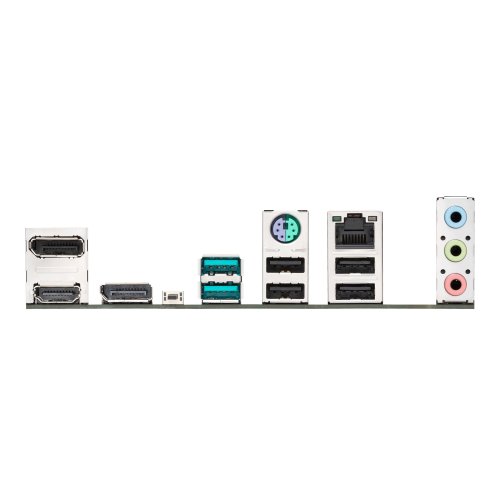

Zadné I/O porty: 2 x USB 10 Gbps portov (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMI port 1 x Realtek 2.5 Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button 1

Interné I/O konektory:

Chladenie a ventilátor 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Napájanie 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Pamäť 2 x M.2 slots (Key M) ) 1 x USB 5 Gbps header supports 2 additional USB 5 Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Rôzne 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio 1 x 10-1 pin Front Panel System header

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Formát: micro-ATX (24,4 × 24,4 cm)

Odkaz na oficiálny web: https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-a620am-plus/
