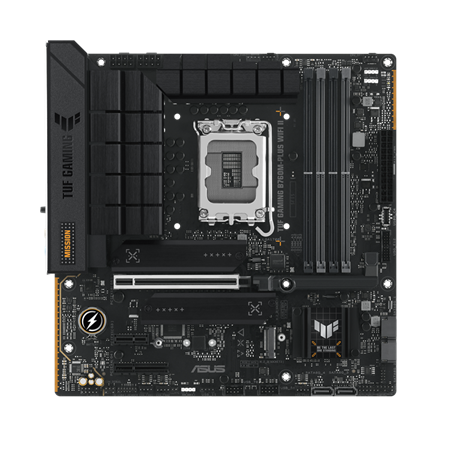

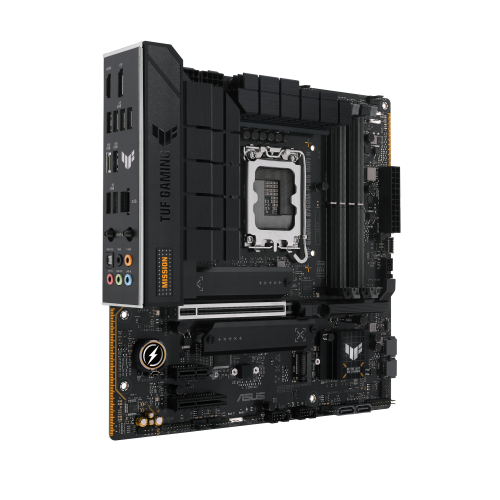

TUF GAMING B760M-PLUS WIFI II využíva všetky základné prvky najnovších procesorov Intel® a kombinuje ich s funkciami pripravenými na hry a overenou odolnosťou.
Táto základná doska, navrhnutá s komponentmi vojenskej kvality, vylepšeným riešením napájania a komplexným chladiacim systémom, presahuje očakávania so skalopevným výkonom pre maratónske hranie.
Základné desky TUF GAMING taktiež prechádzajú prísnym testovaním odolnosti, aby sa zaistilo, že zvládnu podmienky, v ktorých ostatní môžu selhať. Esteticky tento model obsahuje reliéfny štítok a geometrické dizajnové prvky, ktoré odrážajú spoľahlivosť a stabilitu, ktorá definuje sériu TUF GAMING.
Táto platforma poskytuje výkon a konektivitu, ktoré vyžadujú pokročilé AI PC aplikácie.

Špecifikácia:

CPU
Intel® Socket LGA1700 pre Intel® Core™ 14. & 13. Gen Processors, Intel® Core™ 12. Gen, Pentium® Gold and Celeron® Processors*
Supports Intel Turbo Boost Technology 2.0 a Intel Turbo Boost Max Technology 3.0 **

• Refer to www.asus.com pre CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 podporuje depends on the CPU types.

  Chipset
  Intel® B760 Chipset

  Memory
  4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5 Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  OptiMom II

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/

• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

  Graphics
  1 x DisplayPort**
  1 x HDMI™port***

• Graphics specifications majú vary between CPU types. Please refer to na www.intel.com for any updates.
  ** Supports max. 4K@60Hz as špecifikované v DisplayPort 1.4.
  ** Supports 4K@60Hz as specified in HDMI 2.1.

  Expansion Slots
  Intel® CoreTM Processors (14. & 13. & 12. Gen)
  1 x PCIe 5.0 x16 slot
  Intel® B760 Chipset
  1 x PCIe 4.0 x4 slot
  1 x PCIe 3.0 x1 slot


• Ak chcete získať kompatibilitu zariadenia inštalovaný, prosím referte na https://www.asus.com/support/ pre list podporovaných peripherals.

  Storage
  Supports 3 x M.2 slotov a 4 x SATA 6Gb/s ports*
  Intel® CoreTM Processors (14. & 13. & 12. Gen)
  M.2_1 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  Intel® B760 Chipset
  M.2_2 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  M.2_3 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x2 mode)
  4 x SATA 6Gb/s ports


• Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

  Ethernet
  1 x Realtek 2.5Gb Ethernet
  TUF LANGuard

  Wireless & Bluetooth
  Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11ax)
  Supports 2.4/5/6GHz frequency band*
  Bluetooth® v5.3**

• Wi-Fi 6GHz frequency band regulátory majú vary between countries.
  ** The Bluetooth verzia má vary, prosím refer to na Wi-Fi module manufacturer's webová stránka pre najnovšie špecifickosti.

  USB
  Rear USB (Total 8 ports)
  1 x USB 20 Gbps port (1 x USB Type-C®)
  1 x USB 10 Gbps port (1 x Type-A)
  2 x USB 5Gbps ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  Front USB (Total 8 ports)
  1 x USB 10Gbps konektor (supports USB Type-C®)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  3 x USB 2.0 headers support 5 additional USB 2.0 ports

  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC


• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• Supports up to 24-bit/192 kHz playback
  Audio Features

• Audio Shielding

• Rear optical S/PDIF out port

• Premium audio capacitors

• Dedicated audio PCB layers

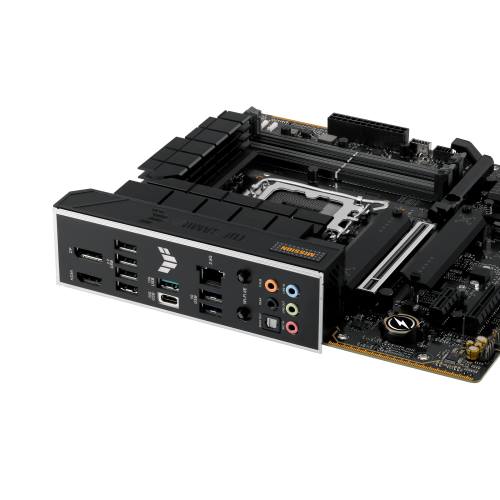

  Back Panel I/O Ports
  1 x USB 20 Gbps port (1 x USB Type-C®)
  1 x USB 10 Gbps port (1 x Type-A)
  2 x USB 5Gbps ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  1 x DisplayPort
  1 x HDMI™ port
  1 x Wi-Fi Module
  1 x Realtek 2.5Gb Ethernet port
  5 x Audio jacks
  1 x Optical S/PDIF out port

  Internal I/O Connectors
  I/O Connectors Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  3 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V Power connectors
  Storage related
  3 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 10Gbps konektor (supports USB Type-C®)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  3 x USB 2.0 headers support 5 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Clear CMOS header
  1 x Front Panel Audio header (AAFP)
  1 x 20-3 pin System Panel hlavy s Chassis intrude function
  1 x Thunderbolt™ (USB4®) header

  Special Features
  ASUS TUF PROTECTION

• DIGI+ VRM (- Digital power design with DrMOS)

• ESD Guards

• TUF LANGuard

• Overvoltage Protection

• SafeSlot Core+

• Stainless-Steel Back I/O
  ASUS Q-Design

• M.2 Q-Latch

• PCIe Slot Q-Release

• Q-Antenna

• Q-DIMM

• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  ASUS Thermal Solution

• M.2 heatsinks

• VRM heatsink design
  ASUS EZ DIY

• CPU Socket lever protector

• ProCool

• Pre-mounted I/O shield

• SafeDIMM
  AURA Sync

• Addressable Gen 2 headers

  Softvér Features
  ASUS Exclusive Software
  Armoury Crate

• AURA Creator

• AURA Sync

• Fan Xpert 2+

• Power Saving

• Two-Way AI Noise Cancelation
  AI Suite 3

• DIGI+ VRM

• PC Cleaner
  TUF GAMING CPU-Z
  DTS Audio Processing
  MyASUS
  Norton 360 for Gamers (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode

  BIOS
  128 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE

  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS Q-Antenna
  1 x M.2 Rubber Package
  1 x TUF Gaming sticker
  2 x Screw packages for M.2 SSD
  Documentation
  1 x TUF Certification card
  1 x User guide

  Operating System
  Windows® 11, Windows® 10 64-bit

  Form Factor
  mATX Form Factor
  9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
