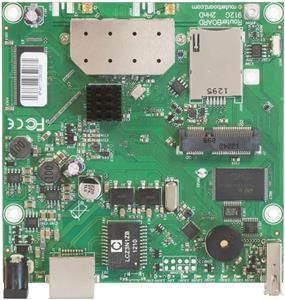

RB912UAG-5HPnD

OVERVIEW The RB912UAG-5HPnD is very versatile device. Je to malý bezdrôtový router s integrovanou vysokorýchlostnou bezdrôtovou kartou a dodatočné miniPCIe slot pre 802.11 bezdrôtový, alebo 3G karta. The Gigabit port helps to utilize the full potential of 802.11n bezdrôtové rýchlosti.

Integrovaná bezdrôtová karta je schopná získať až 1000mW output power. It has built in 16kV ESD protection on both the Ethernet and the MMCX ports.

SPECIFICATIONS Product code • RB912UAG-5HPnD

CPU speed • 600MHz

CPU cores • 1

RAM • 64

LAN ports • 1

Gigabit • Yes

MiniPCI • 0

miniPCI-e • 1

Integrated Wireless • Yes

Wireless standards • 802.11an

USB • 1

Memory Cards • No

Power Jack • Yes

802.3af support • No

PoE • 8-30V DC

Voltage Monitor • Yes

CPU temperature monitor • No

PCB temperature monitor • Yes

Dimensions • 105x105mm

Operating System • RouterOS

RouterOS License • L4

Current Monitor • No

TX power • 30dBm

Max Power consumption • 14W at 24v
