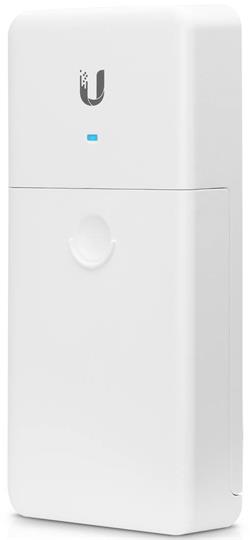

Outdoor 4-Port PoE Passthrough Switch

Dimensions
• 196.4 x 93.5 x 32.4 mm

Weight
• 271 g

Enclosure Characteristics
• White Polycarbonate

Total Non-Blocking Line Rate
• 4 Gbps

Typical Power Consumption
• 1.5W

Max. Power Consumption
• 30W

Power Method
• Passive 24V, 2-Pair PoE In

Power Supply
• PoE-24-30W-GW PoE adaptér (Not Included)

LEDs
• Speed/Link/Activity (All Ports)

Networking Interfaces

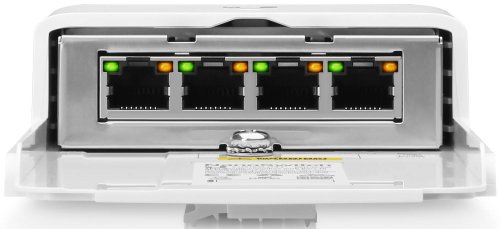

• (4) 10/100/1000 Mbps RJ45 Ports

PoE Interfaces
• Passive 24V, 2-Pair PoE In

Total Passive PoE Max. Wattage
• 24V, 2-Pair, 1A pre 3 Porty (30W)

Passive PoE Max. Wattage per Port
• 24V, 2-Pair, 1A per Port (24W)

Passive PoE Voltage Range
• 21.6 – 30V

ESD/EMP Protection
• Air: ± 24 kV, Contact: ± 24 kV

Shock and Vibration
• ETSI300-019-1.4 Štandard

Operating Temperature
• -30 až 70 ° C

Operating Humidity
• 5 až 95% Noncondensing

Certifications
• CE, FCC, IC
