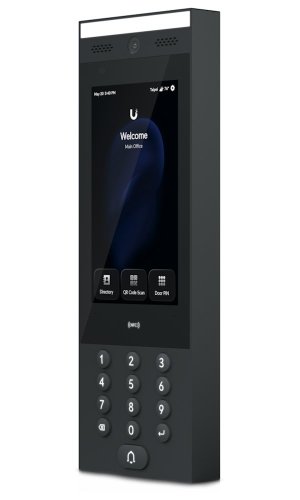

Overview
Dimensions
324.8 x 113.7 x 28.3 mm
(12.8 x 4.5 x 1.1")
Integrated Camera
Yes
NFC Card & Keyfob Access
Yes
PIN Access
Yes
Touch Pass
Yes
Mobile Unlock
Yes
Two-Way Intercom & Doorbell Access
Yes
Weatherproofing
IP65
Mechanical
Weight
Device: 965 g (2.1 lb)
Bracket: 445 g (1 lb)
Enclosure Material
Aluminum alloy, UV-stabilizovaný polycarbonate, glass
Mount Material
Powder-coated stainless steel
Mounting
Wall mount, adapter na gooseneck pedestal (Included)
Surface angl, flush mount, sunshield kit (Optional)
Hardvér
Indoor and Outdoor Use
Yes
Ambient Operating Temperature
Device: -30 až 60 ° C (-22 až 140 ° F)
Display: -25 až 60 ° C (-13 až 140 ° F)
Ambient Operating Humidity
5 to 90% noncondensing
Networking Interface
(1) GbE RJ45 port
Connectivity
BLE 4.2
NFC
Power Method
PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption
13W
Supported Voltage Range
48V DC
Sensors
Proximity sensor
ALS sensor
Display
177 mm (7") diagonal
Touch Screen Technology
Capacitive multi-touch
Display Luminance
Max. 1000 nits (Typical)
Screen Orientation
Portrait
Resolution
1024 x 600 px
Microphone
Yes
Speaker
Yes
NFC Frequency
13.56 MHz
NFC Read Range
< 30 mm (1.18'')
NFC Technology
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum značky T1T, T2T, T3T, T4T a T5T
ECP 2.0
LEDs
Amber Learn More
Buttons
(1) Factory-reset
PoE Cabling Requirements
Cat 5e cabling is minimum performance category recommended. Performance category utilized should match the transmission speed required at the installation site.
Minimálny drôt gauge, ktorý sa dá pripojiť medzi PSE alebo výkonným injectorom a PD shall be 26 AWG (0.13 mm2 ) pre patch cords; 24 AWG (0.21 mm2 ) pre horizontálne alebo riser cable.
UL 294 Level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
UL 294 Statement
Compliance with IEEE 802.3 specifications nie je verified as part of UL 294.
Equipment je integrovaný do kompletnej s kapitolou Národného elektrického kódu, ANSI/NFPA 70, Article 725.121, Power Sources pre 2. a 3. triedu Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
NDAA Compliant
Yes
Document number, and issue date and/or revision level
UA-G3-Intercom, V01
Softvér
Management Application
Access
Software Information
The software version can be checked at https://unifi.ui.com
