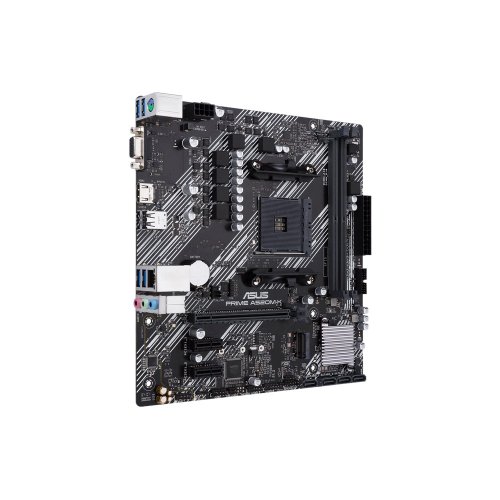

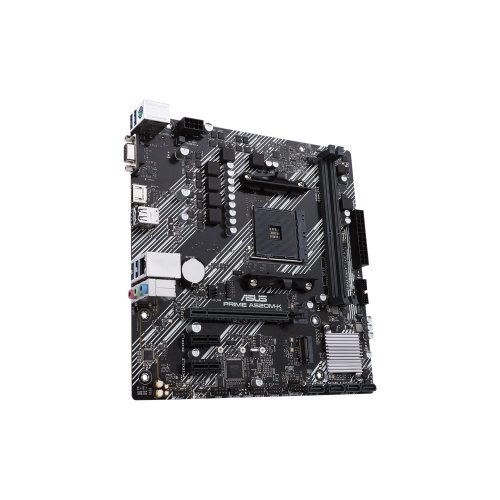

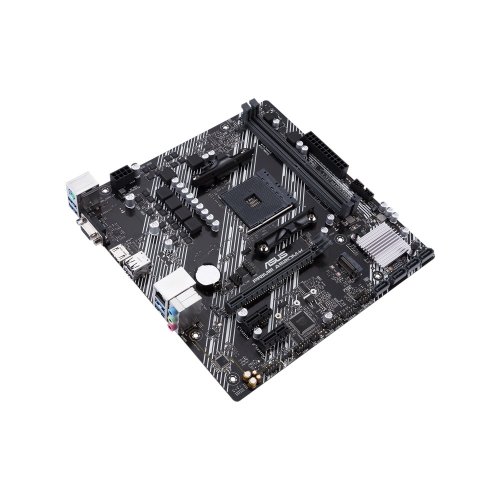

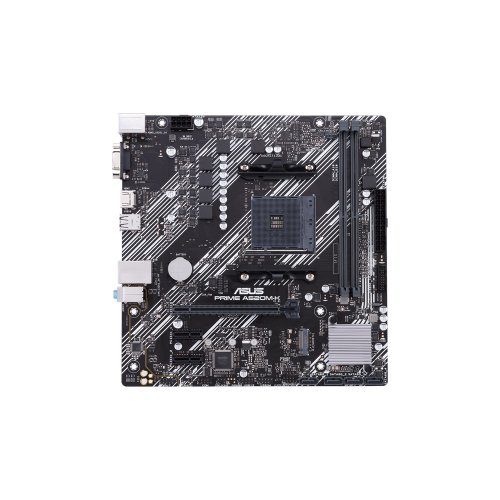

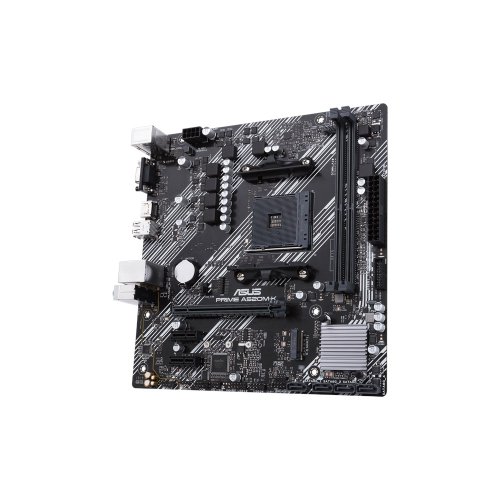

Chipset: AMD A520

Rozmerový formát: mATX Form Factor (226 mm x 221 mm) Podpora pre procesory: 3. Gen AMD Ryzen ™ a 3. Gen AMD Ryzen ™ s Radeon ™ Graphics Processors Pätica procesora: AM4

Pozícia na pamäti: 2x DDR4 DIMM Podpora pre pamäte: *4600( OC)/4400(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC )/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Max.veľkosť operačnej pamäte: 64 GB Podpora pre pamäte typu: DDR4 (Dual Channel Memory Architecture) *ECC Memory (ECC mode) support varies by CPU.

Grafické výstupy: (na základe CPU)

Zvuková karta: *Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC

Sieťová karta: *Realtek RTL8111H 1Gb Ethernet

Rozširujúce sloty: *1x PCIe 3.0 x16 (x16 mode) *2x PCIe 3.0 x1

RAID radič: 0, 1, 10

SATA: *4x SATA 6Gb/s port(s)

M.2 : *1x M.2 Socket 3 s M Key, Type 2242/2260/2280 (PCIE 3.0 x4 a SATA modes) storage devices support

USB: * zadné USB porty (celkom 6) *4x USB 3.2 Gen 1 port(s)(4 x Type-A) *2x USB 2.0 port(s)(2 x Type-A) * predné USB porty (celkom 6) *2x USB 3.2 Gen 1 port(s)(2 x Type-A) *4x USB 2.0 port(s)(4 x Type-A)

Interné porty: *1x CPU Fan connector(s) *1x Chassis Fan connector(s) *1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) *2x USB 2.0 connector( s ) support(s) 4 USB 2.0 port(s) TPM header *4x SATA 6Gb/s connector(s) *1x S/PDIF out header(s) *1x 24-pin EATX Power connector(s) *1x 8-pin EATX 12V Power connectors *1x Front panel audio connector(s ) (AAFP) *1x Clear CMOS jumper(s) *1x System panel konektora *1x COM port header *1x Speaker connector

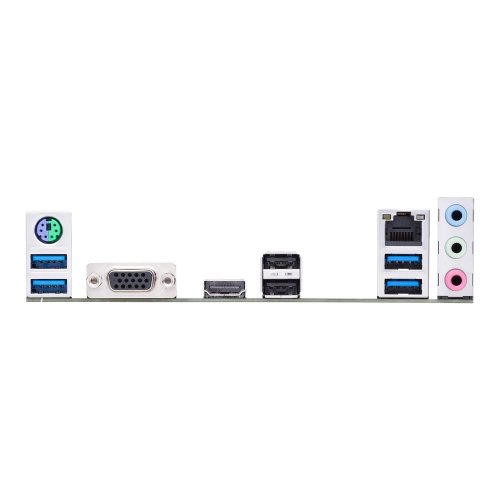

Externé porty: *1x PS/2 klávesnica/mouse combo port(s) *1x D-Sub *1x HDMI *1x LAN (RJ45) port(s) *4x USB 3.2 Gen 1 (blue) Type-A *2x USB 2.0 *3x Audio jack(s)

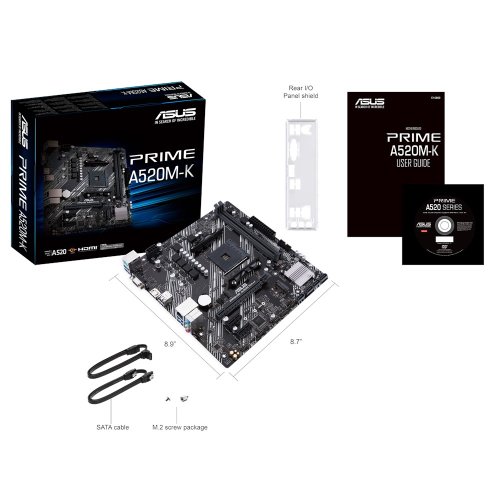

Príslušenstvo: *užívateľská príručka *I/O Shield *2x SATA 6Gb/s cable(s) *1x Supporting DVD *1x M.2 SSD screw package(s)

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobcu: https://www.asus.com/Motherboards/PRIME-A520M-Khttps://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus. com/support/FAQ/1046215
