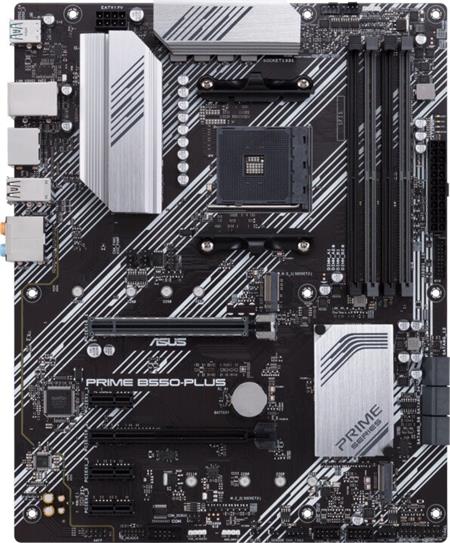

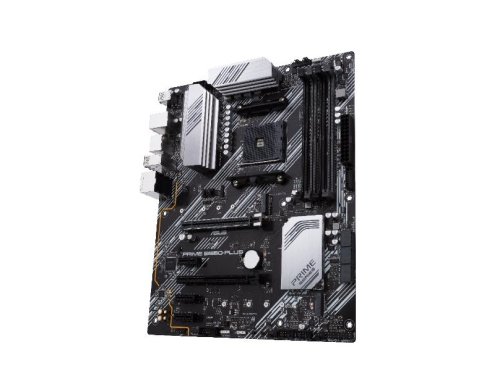

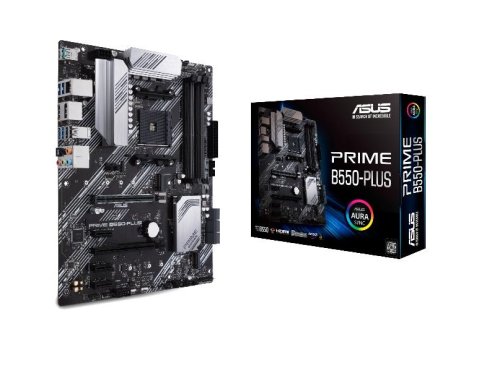

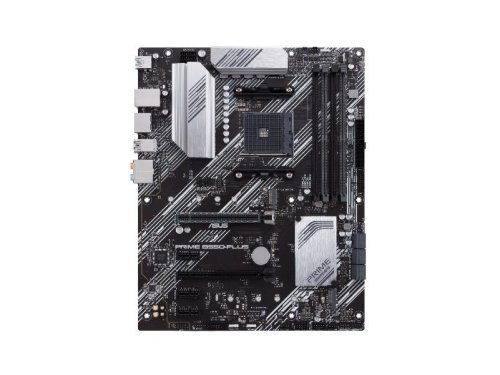

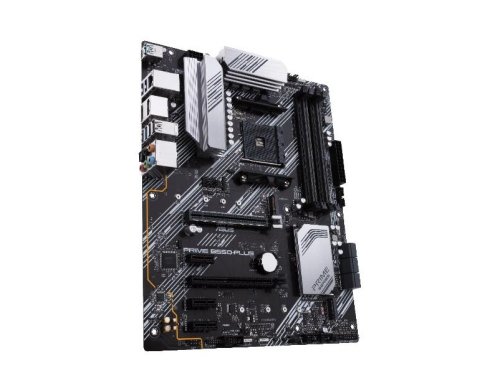

Chipset: AMD B550

Rozmerový formát: ATX Form Factor (305 mm x 244 mm) Podpora pre procesory: AMD AM4 Socket 3. Gen AMD Ryzen™ Processors

Pozícia na pamäti: 4x DDR4 DIMM Podpora pre pamäte: *4600( OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/24 Un-buffered Memory *Next Generation AMD Ryzen PRO Processors - 4800( OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3600(OC)/3466(OC)/3200/3000/2800/2666/24 Un-buffered Memory Max. veľkosť operačnej pamäte: 128 GB Podpora pre pamäte typu: DDR4 *Dual Channel Memory Architecture

Grafické výstupy: (na základe procesora) *1x DisplayPort 1.2 *1x HDMI 2.1(4K@60HZ)

Multi GPU: *AMD 2-Way CrossFireX Technology

Zvuková karta: *Realtek ALC887 7.1-Channel High Definition Audio CODEC

Sieťová karta: *Realtek® RTL8111H(ASUS LANGuard)

Rozširujúce sloty: *1x PCIe 4.0 x16 (x16 mode) *1x PCIe 3.0 x16 (x4 mode) *3x PCIe 3.0 x1

RAID radič: 0, 1, 10

SATA: *6x SATA 6Gb/s port(s)

M.2 : *1x M.2 Socket 3, s M kľúčom, typ 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) *1x M.2 Socket 3, s kľúčom M, 2242/2260/22 & PCIE 3.0 x 4 mode)

USB: * zadné USB porty ( celkom 8 ) *2x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) *4x USB 3.2 Gen 1 port(s)(4 x Type-A) *2x USB 2.0 port(s)(2 x Type-A) * 2 USB port port(s)(2 x Type-A) *4x USB 2.0 port(s)(4 x Type-A)

Interné porty: *1x CPU Fan konektor(s) *1x CPU OPT Fan konektor(s) *3x Chassis Fan konektor(s) *1x AIO_PUMP konektor *2x Aura RGB Strip Headers *1x Addressable Gen 2 header(s) *1x USB 3.2 Gen 1(up) 2 USB 3.2 Gen 1 port(s) M.2 Socket 3 s kľúčom M, typ 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 8-pin EATX 12V Power connectors *1x Front panel audio konektor(s) (AAFP) *1x Thermal sensor connector(s) *1x Clear CMOS jumper(s) *1x System panel connector *1x COM port header

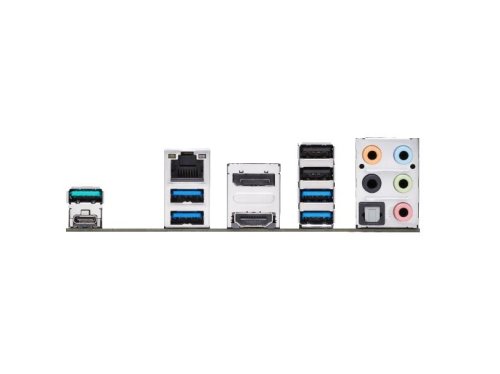

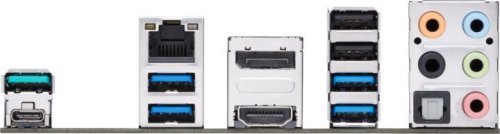

Externé porty: *1x DisplayPort *1x HDMI *1x LAN (RJ45) port(s) *2x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®) *4x USB 3.2 Gen 1 (blue) Type-A *2x USB 2.0 *1x Optica

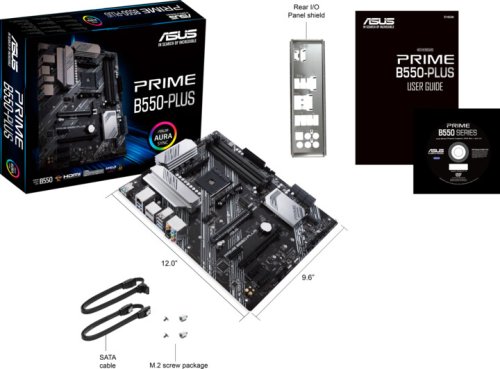

Obsah balenia: *User's manual *I/O Shield *2x SATA 6Gb/s cable(s) *1x Supporting DVD *1x M.2 SSD screw package(s)

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
