Chipset: AMD B550

Rozmerový formát: micro ATX (24.4cm x 24.4cm) Podpora pre procesory: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Pozícia na pamäti: 4 x DIMM DDR4 Dual Channel Memory Architecture Podpora pre pamäte: 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC) /4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/ 2933/2800/2666/2400/2133 MHz Max. veľkosť operačnej pamäte: 128 GB Podpora pre pamäte typu: ECC

Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC

Sieťová karta: *1 x Realtek 1Gb Ethernet *Wi-Fi 6 (802.11 a/b/g/n/ac/ax) *Bluetooth 5.2

Rozširujúce sloty: *2 x PCIe 4.0 x16 slot *2 x PCIe 3.0 x1 slots

RAID radič: RAID 0, 1, 10

SATA: 4 x SATA 6Gb/s ports

M.2 : 2 x M.2 slots

USB: * Interné: *1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *2 x USB 2.0 headers support additional 4 USB 2.0 ports * Externý: *2 x USB 3.2 Gen 2 ports (2 x Type-A ) *4 x USB 3.2 Gen 1 ports (4 x Type-A)

Interné porty: * Fan and Cooling related *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *2 x 4-pin Chassis Fan headers * Power related *1 x 24-pin Main Power connector *1 x 8-pin +12V Power connector * Storage related *2 x M.2 slots (Key M) *4 x SATA 6Gb/s ports * USB *1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *2 x USB 2.0 headers support additional 4 USB 2.0 ports * Miscellaneous *1 x Addressable Gen 2 header *2 x AURA RGB headers *1 x Clear CMOS header *1 x COM Port header *1 x Front Panel Audio header (AAFP) *1 x S/PDIF Out header *1 x Speaker header *1 x SPI TPM header (14-1pin) *1 x 10-1 pin System Panel header

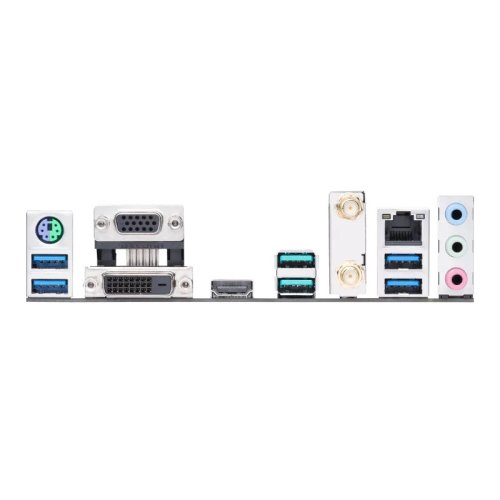

Externé porty: *2 x USB 3.2 Gen 2 ports (2 x Type-A) *4 x USB 3.2 Gen 1 ports (4 x Type-A) *1 x D-Sub port *1 x DVI-D port *1 x HDMI port *1 x Wi-Fi Module *1 x Realtek 1Gb Ethernet port *3 x Audio jacks *1 x PS/2 Keyboard/Mouse combo port

BIOS: UEFI AMI BIOS, 256 Mb Flash ROM
