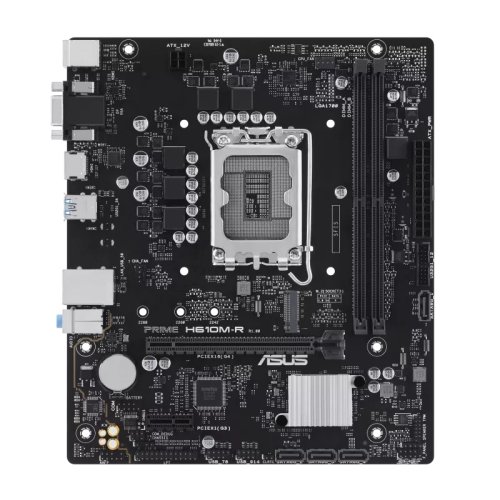

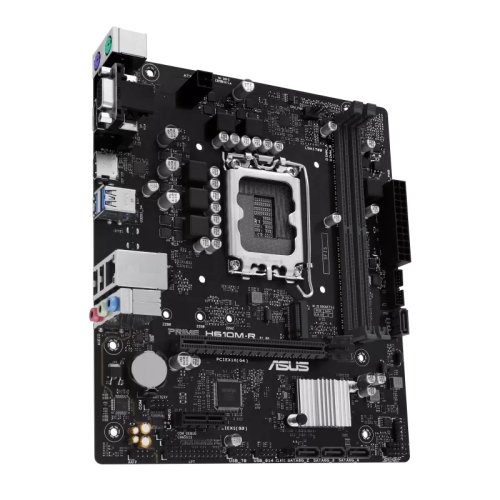

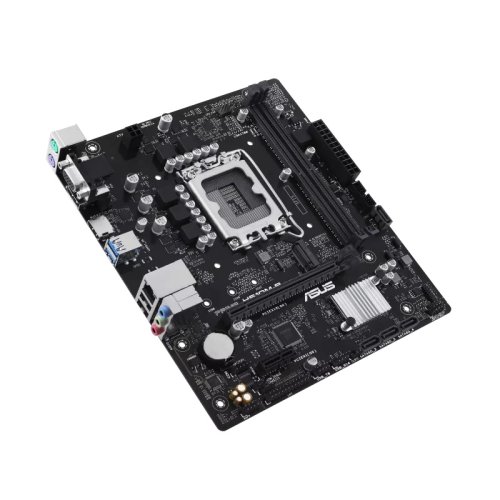

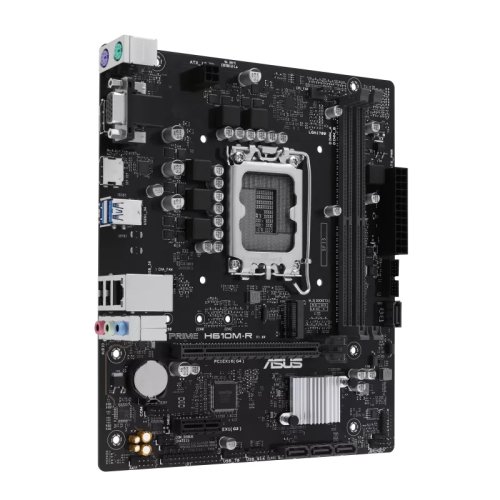

Základná deska Intel® H610 (LGA 1700) micro-ATX s DDR5, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, DisplayPort, HDMI ™, VGA, porty USB 3.2 Gen 1, SATA 6 Gbps, COM hlavička, LPT hlavička, Hlavička TPM
Socket Intel® LGA 1700: Pripravený pre procesory Intel® 14..-12. generácia
Komplexné chladenie: PCH chladič
Ultrarýchle pripojenie: PCIe 4.0, 32 Gbps M.2 slot, Realtek 1 Gb Ethernet a podpora USB 3.2 Gen 1
5X Protection III: Viacnásobné hardvérové ochrany pre všestrannú ochranu

Technická špecifikácia:

Model
PRIME H610M-R

CPU
Intel® Socket LGA1700 pre Intel® Core™ 14. & 13. Gen Processors, Intel® Core™ 12. Gen, Pentium® Gold and Celeron® Processors*
Supports up to Intel® 65W CPU
Supports Intel Turbo Boost Technology 2.0 a Intel Turbo Boost Max Technology 3.0 **

• Refer to www.asus.com pre CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 podporuje depends on the CPU types.

  Chipset
  Intel® H610 Chipset
  Memory

  2 x DIMM, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ .

• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

  Graphics
  1 x DisplayPort**
  1 x VGA port
  1 x HDMI port***

• Graphics specifications majú vary between CPU types. Please refer to na www.intel.com for any updates.
  ** Supports max. 4K@60Hz as špecifikované v DisplayPort 1.4.
  *** Supports 4K@60Hz a špecifikované v HDMITM 2.1.
  Expansion Slots
  Intel® Core™ Processors (14. & 13. & 12. Gen)
  1 x PCIe 4.0 x16 slot
  Intel® H610 Chipset
  1 x PCIe 3.0 x1 slot


• Ak chcete získať kompatibilitu zariadenia inštalovaný, prosím referte na https://www.asus.com/support/ pre list podporovaných peripherals.

  Storage
  Total supports 1 x M.2 slot a 4 x SATA 6Gb/s ports
  Intel® H610 Chipset
  M.2 slot (Key M), typ 2242/2260/2280 (supports PCIe 3.0 x4 mode)
  4 x SATA 6Gb/s ports

  Ethernet
  1 x Realtek 1Gb Ethernet

  USB
  Rear USB (Total 4 ports)
  2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  Front USB (Total 6 ports)
  1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports

  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• Supports up to 24-bit/192 kHz playback
  Audio Features

• Audio Shielding

• Premium audio capacitors

• Dedicated audio PCB layers


• Chassis s audio modulom HD v prednom paneli je potrebný na podporu 7.1 Surround Sound audio output.

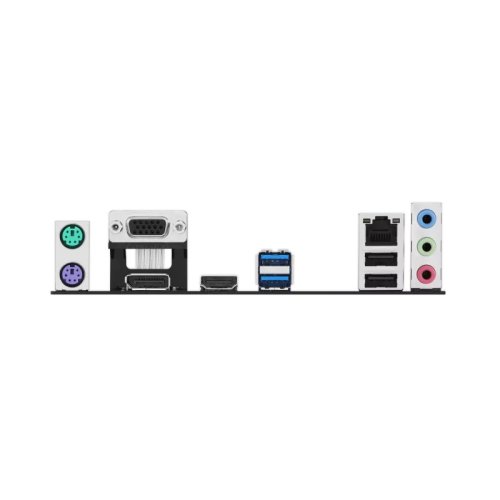

  Back Panel I/O Ports
  2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x DisplayPort
  1 x VGA port
  1 x HDMITM port
  1 x Realtek 1Gb Ethernet port
  3 x Audio jacks
  1 x PS/2 Keyboard (purple) port
  1 x PS/2 Mouse (green) port

  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin Chassis Fan header
  Power related
  1 x 24-pin Main Power connector
  1 x 4-pin +12V Power connector
  Storage related
  1 x M.2 slot (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Miscellaneous
  1 x Clear CMOS header
  1 x Chassis Intrusion header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x LPT header
  1 x Speaker header
  1 x SPI TPM header (14-1 pin)
  1 x 10-1 pin System Panel header

  Special Features
  ASUS 5X PROTECTION III


• DIGI+ VRM

• LANGuard

• Overvoltage Protection

• SafeSlot Core

• Stainless-Steel Back I/O
  ASUS Q-Design

• Q-DIMM

• Q-Slot

• Q-LED Core
  ASUS Thermal Solution

• Aluminum heatsink design

  Softvér Features
  ASUS Exclusive Software
  Armoury Crate
  AI Suite 3
  EPU
  DIGI+ VRM
  PC Cleaner
  ASUS CPU-Z
  Norton 360 for Deluxe (60 Days Free Trial)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode
  BIOS
  128 Mb Flash ROM, UEFI AMI BIOS

  Manageability
  WOL by PME, PXE
  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x I/O Shield
  1 x M.2 ANCHOR
  Documentation
  1 x User guide
  Operating System
  Windows® 11 64-bit, Windows® 10 64-bit
  Form Factor
  mATX Form Factor
  8.9 in x 7.7 in (22.6 cm x 19.5 cm)
