Základné desky radu ASUS PRIME sú odborne navrhnuté tak, aby naplno využili potenciál najnovších procesorov Intel Core Ultra (séria 2).

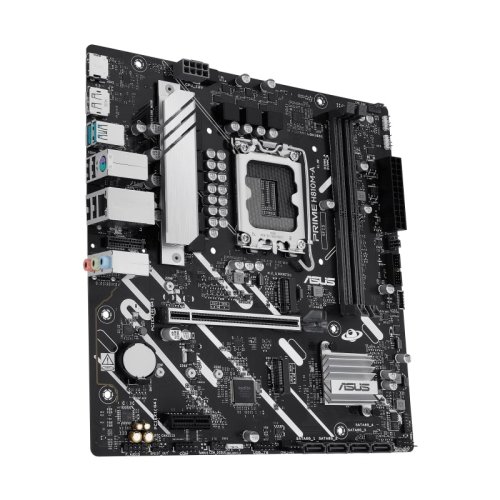

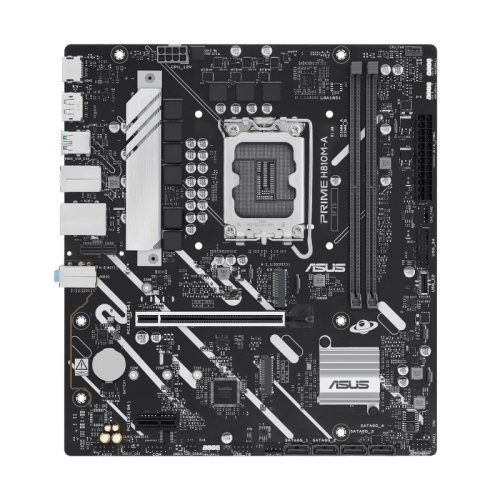

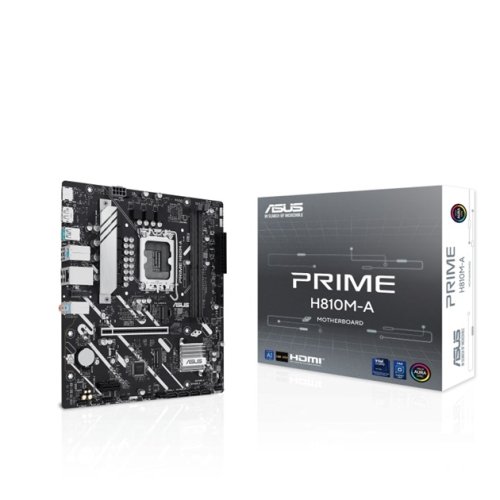

Základná deska PRIME H810M-A-CSM, ktorá sa môže pochváliť robustnou konštrukciou napájania, komplexnými riešeniami chladenia a inteligentnými možnosťami ladenia, poskytuje používateľom a tvorcom osobných počítačov rady optimalizácií výkonu prostredníctvom intuitívnych funkcií softvéru a firmvéru. Je navrhnutý tak, aby bol pripravený na počítač s pokročilou AI a ponúka výkon a konektivitu potrebnú pre náročné aplikácie AI.

Špecifikácia:

CPU
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
Supports Intel Turbo Boost Technology 2.0 a Intel Turbo Boost Max Technology 3.0 **

• Refer to https://www.asus.com/support/download-center/ for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 podporuje depends on the CPU types.

  Chipset
  Intel® H810 Chipset

  Memory
  2 x DIMM slots, max. 96GB, DDR5
  Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*"
  Dual channel memory architecture
  DIMM Fit
  Supports Intel® Extreme Memory Profile (XMP) memory module
  ASUS Enhanced Memory Profile II (AEMP II)

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of production information site or visit https://www.asus.com/support/download-cent-center Adjustments budú urobené na základe špecifikácií masovo-výrobných značiek produkovaných na trhu.
  ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

  Graphics
  1 x DisplayPort**
  1 x HDMI™ port***

• Graphics specifications majú vary between CPU types. Please refer to na www.intel.com for any updates.
  ** Supports max. 4K@60Hz as špecifikované v DisplayPort 1.4.
  *** Supports 4K@60Hz a špecifikované v HDMI 2.1.
  **** VGA resolution support depends on processors' or graphic cards' resolution.

  Expansion Slots
  Intel® Core™ Ultra Processors (Series 2)
  1 x PCIe 4.0 x16 slot
  Intel® H810 Chipset
  1 x PCIe 4.0 x1 slot


• Ak chcete získať kompatibilitu zariadenia inštalovaný, prosím referte na https://www.asus.com/support/download-center/ pre list podporovaných peripherals.

  Storage
  Total supports 2 x M.2 slots a 4 x SATA 6Gb/s ports
  Intel® H810 Chipset
  M.2_1 slot (Key M), typ 2280 (supports PCIe 4.0 x4 mode)
  M.2_2 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x2 mode)
  4 x SATA 6Gb/s ports

  Ethernet
  1 x Intel® 1Gb Ethernet port
  ASUS LANGuard

  Wireless & Bluetooth®
  "V- M.2 slot only (Key E, CNVi & PCIe)
  Wi-Fi module is sold separately."

  USB
  Rear USB (Total 6 ports)
  2 x USB 10 Gbps ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  Front USB (Total 5 ports)
  1 x USB 5Gbps konektor (supports USB Type-C®)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  1 x USB 2.0 header supports 2 additional USB 2.0 ports


• USB Type-C® power delivery output: max. 5V/3A
  ** USB_E1 port, USB_E2 port, USB_E3 port a USB_E4 port share the bandwidth.

  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*


• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• Supports up to 24-bit/192 kHz playback"
  Audio Features

• Audio Shielding

• Premium audio capacitors

• Dedicated audio PCB layers


• Chassis s audio modulom HD v prednom paneli je potrebný na podporu 7.1 Surround Sound audio output.

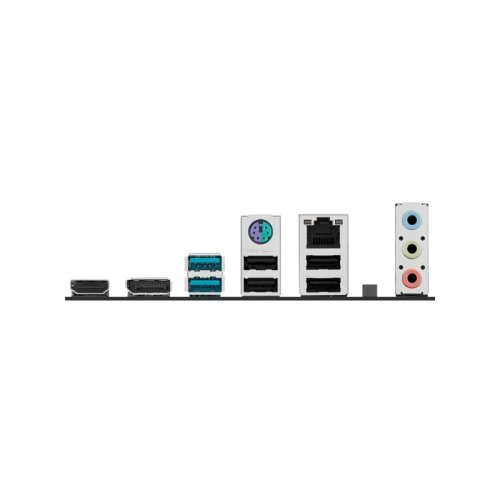

  Back Panel I/O Ports
  2 x USB 10 Gbps ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  1 x DisplayPort
  1 x HDMI™ port
  1 x Vertical M.2 slot (Key E)
  1 x Intel® 1Gb Ethernet port
  3 x Audio jacks
  1 x PS/2 klávesnica/mouse combo port

  Internal I/O Connectors
  Fan and Cooling Related
  1 x 4-pin CPU Fan header
  2 x 4-pin Chassis Fan headers
  Power Related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V CPU Power connector
  Storage Related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 5Gbps konektor (supports USB Type-C®)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  1 x USB 2.0 header supports 2 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen2 headers
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (F_AUDIO)
  1 x S/PDIF Out header
  1 x SPI TPM header (14-1 pin)
  1 x 10-1 pin Front Panel System header

  Special Features
  ASUS 5X PROTECTION III


• DIGI+ VRM

• LANGuard

• Overvoltage protection

• SafeSlot Core+

• Stainless-steel back I/O
  ASUS Q-Design

• Q-DIMM

• Q-Dashboard

• Q-LED Core

• Q-Slot
  ASUS Thermal Solution

• VRM heatsink design
  Aura Sync

• Addressable Gen2 headers

  Softvér Features
  ASUS Exclusive Software
  Armoury Crate

• Aura Creator

• Aura Sync

• Fan Xpert 2+

• Power Saving
  ASUS DriverHub
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash

• ASUS UEFI BIOS EZ Mode

• ASUS MyHotkey

  BIOS 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
  Manažment WOL by PME, PXE

  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x I/O shield
  1 x Screw package for M.2 SSD
  Documentation
  1 x Quick štart guide

  Operating System Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)

  Form Factor micro-ATX Form Factor
  9.6 palcov x 8.75 palcov (24.4 cm x 22.2 cm)

  Dimension
  Product (mm)_ L W H 244mm 222mm 37mm
