Základné desky radu ASUS PRIME sú odborne navrhnuté tak, aby naplno využili potenciál najnovších procesorov Intel Core Ultra (séria 2).
Základná deska PRIME Z890-P, ktorá sa môže pochváliť robustným dizajnom napájania, komplexnými riešeniami chladenia a inteligentnými možnosťami ladenia, poskytuje používateľom a konštruktérom PC rád optimalizácií výkonu prostredníctvom intuitívnych funkcií softvéru a firmvéru. Je navrhnutý tak, aby bol pripravený na počítač s pokročilou AI a ponúka výkon a konektivitu potrebnú pre náročné aplikácie AI.

Technická špecifikácia:

Model
PRIME Z890-P

News & Updates
2024/10/24: Nové BIOS má byť zreleased addressing various bugs, including no display z grafických kariet pri inštalácii Windows 11 24H2. It is recommended to use the new EZ Flash tool to update directly using the ZIP súbor downloaded z ASUS stránky.
Please visit our GLOBAL webové stránky na kontrolu a na stiahnutie najnovších aktualizácií.

CPU
Supports Intel Core Ultra Processors (Series 2), LGA1851*
Supports Intel Turbo Boost Technology 2.0 a Intel Turbo Boost Max Technology 3.0 **

• Refer to https://www.asus.com/support/download-center/ for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 podporuje depends on the CPU types.

  Chipset
  Intel® Z890 Chipset
  Memory
  4 x DIMM slots, max. 192GB, DDR5
  Support up to 8666+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
  Dual channel memory architecture
  DIMM Fit
  Supports Intel® Extreme Memory Profile (XMP) memory module
  ASUS Enhanced Memory Profile III(AEMPIII)

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of production information site or visit https://www.asus.com/support/download-cent-center Adjustments budú urobené na základe špecifikácií masovo-výrobných značiek produkovaných na trhu.
  ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

  Graphics
  1 x DisplayPort**
  1 x HDMITM port***
  1 x port USB 20 Gbps (USB Type-C®) supports DisplayPort video output****

• Graphics specifications majú vary between CPU types. Please refer to na www.intel.com for any updates.
  ** Supports max. 4K@60Hz as špecifikované v DisplayPort 1.4.
  *** Supports 4K@60Hz a špecifikované v HDMI 2.1.
  **** Supports max. 4K@120Hz as špecifikované v DisplayPort 1.4.
  ***** VGA resolution support depends on processors' or graphic cards' resolution.
  ****** Keď inštalujete operačný systém, precízne využitie, že váš monitor je pripojený k HDMI portu na zadnom paneli I/O alebo k discrete grafickým karte.

  Expansion Slots
  Intel® Core™ Ultra Processors (Series 2)*
  1 x PCIe 5.0 x16 slot
  Intel® Z890 Chipset
  2 x PCIe 4.0 x16 slots (support x4 mode)
  1 x PCIe 4.0 x16 slot (supports x1 mode)

• Pozrite si PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ).


• Ak chcete získať kompatibilitu zariadenia inštalovaný, prosím referte na https://www.asus.com/support/download-center/ pre list podporovaných peripherals.

  Storage
  Total supports 4 x M.2 slotov a 4 x SATA 6Gb/s ports*
  Intel® Core™ Ultra Processors (Series 2)*
  M.2_1 slot (Key M), typ 2280/22110 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), typ 2280 (supports PCIe 4.0 x4 mode)
  Intel® Z890 Chipset
  M.2_3 slot (Key M), typ 2280/22110 (supports PCIe 4.0 x4 mode)
  M.2_4 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  4 x SATA 6Gb/s ports


• Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot z CPU only supports RAID 0/1/5.

  Ethernet
  1 x Realtek 2.5Gb Ethernet
  ASUS LANGuard

  USB
  Rear USB (Total 8 ports)
  1 x USB 20 Gbps port (1 x Type-C® USB s DP Alt mode)
  1 x USB 10 Gbps port (1 x Type-A)
  2 x USB 5Gbps ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  Front USB (Total 9 ports)
  1 x USB 10Gbps konektor (supports USB Type-C®)
  2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports

• USB Type-C® power delivery output: max. 5V/3A
  ** USB_E1 port, USB_E2 port, USB_E3 port a USB_E4 port share the bandwidth.
  ** USB_E5 port, USB_E6 port a USB_E7 port share the bandwidth.

  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*


• Supports: Jack-detection,
  Multi-streaming, Front Panel Jack-retasking

• Supports up to 24-bit/192 kHz playback
  Audio Features

• Audio Shielding

• Premium audio capacitors

• Dedicated audio PCB layers


• Chassis s audio modulom HD v prednom paneli je potrebný na podporu 7.1 Surround Sound audio output.

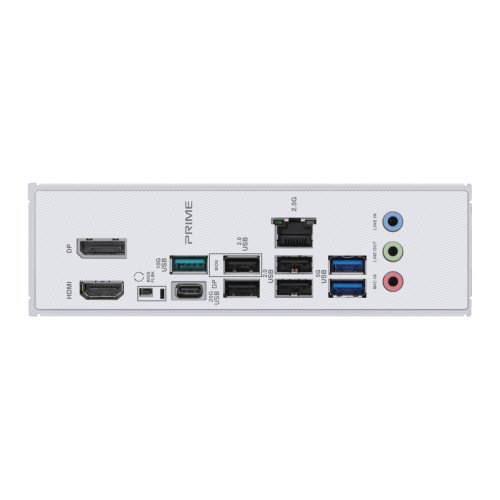

  Back Panel I/O Ports
  1 x USB 20 Gbps port (1 x Type-C® USB s DP Alt mode)
  1 x USB 10 Gbps port (1 x Type-A)
  2 x USB 5Gbps ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  1 x DisplayPort
  1 x HDMITM port
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks
  1 x BIOS FlashBack™ button

  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connector
  Storage related
  4 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 10Gbps konektor (supports USB Type-C®)
  2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (F_AUDIO)
  1 x S/PDIF Out header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin Front Panel System header
  1 x Thunderbolt™ (USB4®) header
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connector
  Storage related
  4 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 10Gbps konektor (supports USB Type-C®)
  2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (F_AUDIO)
  1 x S/PDIF Out header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin Front PanelSystem header
  1 x Thunderbolt™ (USB4®) header

  Special Features
  ASUS 5X PROTECTION III


• DIGI+ VRM (- Digital power design with DrMOS)

• LANGuard

• Overvoltage Protection

• SafeSlot

• Stainless-Steel Back I/O
  ASUS Q-Design

• M.2 Q-Latch

• PCIe Slot Q-Release

• Q-Dashboard

• Q-DIMM

• Q-LED Core

• Q-Slot
  ASUS Thermal Solution

• M.2 heatsink

• VRM heatsink design
  ASUS EZ DIY

• BIOS FlashBack™ button

• BIOS FlashBack™ LED

• ProCool

• Pre-mounted I/O shield
  Aura Sync

• Aura RGB header

• Addressable Gen2 headers

  Softvér Features
  ASUS Exclusive Software
  Armoury Crate

• Aura Creator

• Aura Sync

• Fan Xpert 4 (s AI Cooling II)

• Power Saving
  ASUS DriverHub
  ASUS CPU-Z
  TurboV Core
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash

• ASUS UEFI BIOS EZ Mode

• ASUS MyHotkey
  NPU Boost (Intel K-series Processors only)

  BIOS
  256 (128+128) Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE

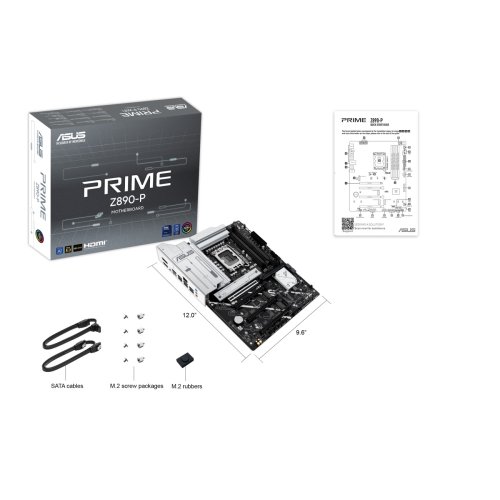

  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x M.2 rubber package
  2 x Screw packages for M.2 SSD
  Documentation
  1 x Quick štart guide

  Operating System
  Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

  Form Factor
  ATX Form Factor
  12 palcov x 9.6 palcov (30.5 cm x 24.4 cm)
