Chipset: AMD B550

Rozmerový formát: ATX Form Factor (305 mm x 244 mm) Podpora pre procesory: AMD AM4 Socket pre AMD Ryzen ™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Pätica procesora: AM4

Pozícia na pamäti: 4x DDR4 DIMM Podpora pre pamäte: *5100( OC)/4800(OC)/4600(OC)/4400(OC)/4133(OC)/4000(OC)/3866(OC)/3600(OC) )/3466(OC)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *4600( OC)/4400(OC)/4133(OC)/4000(OC)/3866(OC)/3600 (OC)/3466(OC)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Max. veľkosť operačnej pamäte: 128 GB Podpora pre pamäte typu: DDR4 *Dual Channel Memory Architecture *ECC Memory (ECC mode ) support varies by CPU.

Grafické výstupy: *Integrated Graphics Processor (na základe procesora)

Multi GPU: AMD 2-Way CrossFireX Technology

Zvuková karta: *ROG SupremeFX8-Channel High Definition Audio CODEC S1220A

Sieťová karta: *Intel® I225-V 2.5Gb Ethernet (ASUS LANGuard)

Rozširujúce sloty: *3x PCIe 3.0 x1 *1x PCIe 4.0 x16 (x16 mode) *1x PCIe 3.0 x16 (x16 mode)

RAID radič: 0, 1, 10

SATA: *6x SATA 6Gb/s

M.2 : *1x M.2 Socket 1 s M kľúčom, typ 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) *1x M.2 Socket 2 s kľúčom M, typ 2242/2260/ 2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

USB: * zadné USB porty (celkom 8) *2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) *4x USB 3.2 Gen 1 *2x USB 2.0 * predné USB porty (celkom 6) * 2x USB 3.2 Gen 1 port(s) *4x USB 2.0 port(s)

Interné porty: *1x M.2 Socket 1 s M kľúčom, typ 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) *1x M.2 Socket 2 s kľúčom M, typ 2242/2260/220 /22110 storage devices support (SATA & PCIE 3.0 x 4 mode) *1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) *1x Thunderbolt header(s) *1x CPU Fan connector(s) *1x CPU OPT Fan connector(s) *3x Chassis Fan connector(s) *1x AIO_PUMP connector *1x AAFP connector *2x Aura RGB Strip Header(s) *1x Addressable Gen 2 header(s ) *2x USB 2.0 konektor(s) support(s) additional 4 USB 2.0 port(s) *6x SATA 6Gb/s connector(s) *1x 24-pin EATX Power connector(s) *1x 8-pin ATX 12V Power connector(s) *1x 4-pin ATX 12V Power connector(s) *1x System panel(s) *1x Thermal sensor connector(s) *1x Clear CMOS jumper(s)

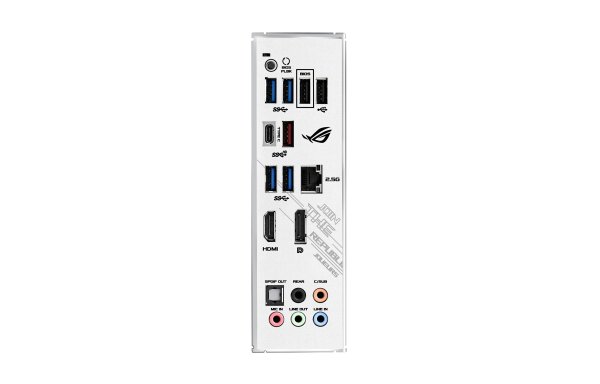

Externé porty: *1 BIOS FlashBack™ Button(s) 1x DisplayPort *1x HDMI *2x USB 2.0 *1x Optical S/PDIF out *5x Gold-plated audio jacks

Obsah balenia: *1 x M.2 SSD screw package(s) *1x M.2 Rubber Package(s) *User's manual *4x SATA 6 Gb/s cable(s) 1x Cable ties pack(s) *1x Extension cable for Addressable LED *1x ROG Thank you card

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobcu: https://rog.asus.com/motherboards/rog-strix/rog-strix-b550-a-gaming-model/https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11 -ready/ https://www.asus.com/support/FAQ/1046215
