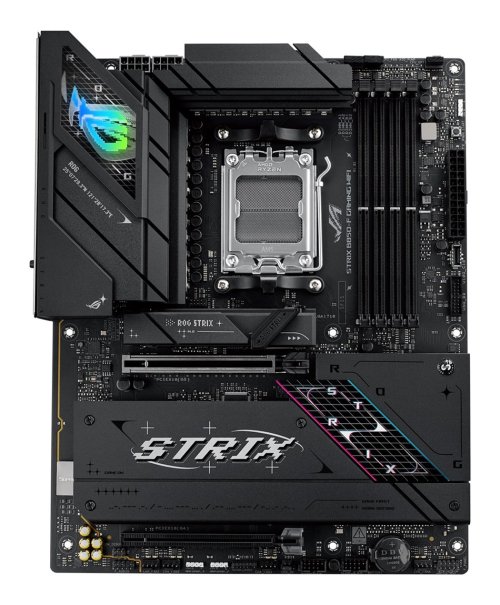

ROG Strix B850-F Gaming WiFi je zkonštruovaný tak, aby dominoval stolným procesorom AMD Ryzen™ 9000 Series.
Pokročilý dizajn napájania a riešenia AI zaisťujú špičkový výkon.
Okrem toho celková podpora 19 USB portov vrátane USB 20 Gbps, ako aj WIFI 7 a 2,5 Gbps ethernetu, poskytuje špičkovú konektivitu.
Táto základná deska poskytuje výkon a rýchlosť, ktoré sú nevyhnutné pre elitné hry a požiadavky pokročilých AI PC aplikácií.

Špecifikácia:

CPU
AMD Socket AM5 pre AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

• Refer to https://www.asus.com/support/download-center/ for CPU support list.

  Chipset
  AMD B850 Chipset

  Memory
  4 x DIMM slots, max. 192GB, DDR5
  Supports up to 8000+MT/s (OC) s Ryzen™ 9000 & 8000 & 7000 Series Processors
  ECC a bez ECC, Un-buffered DIMM
  Dual channel memory architecture
  Supports AMD Extended Profiles for Overclocking (EXPO™)
  ASUS Enhanced Memory Profile (AEMP)

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of production information site or visit https://www.asus.com/support/download-cent-center
  ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

  Graphics
  1 x DisplayPort*
  1 x HDMI™ port**


• Graphics specifications majú vary between CPU types. Please refer to AMD CPU specifications.


• Supports max. 8K@30Hz a špecifikovaný v DisplayPort 1.4
  ** Supports 4K@60Hz as specified in HDMI 2.1
  *** VGA resolution support depends on processors' or graphic cards' resolution.

  Expansion Slots
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  1 x PCIe 5.0 x16 slot s Q-Release Slim
  AMD Ryzen™ 8000 Series Desktop Processors
  1 x PCIe 5.0 x16 slot s Q-Rlease Slim (supports PCIe 4.0 x8 alebo x4 mode)*
  AMD B850 Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)**

• Specifications vary by CPU types.
  ** PCIEX16(G4) slot (support x4 mode) z AMD B850 Chipset shares bandwidth with M.2_3


• Ak chcete získať kompatibilitu zariadenia inštalovaný, prosím referte na https://www.asus.com/support/download-center/ pre list podporovaných peripherals.

  Storage
  Total supports 4 x M.2 slots a 2 x SATA 6Gb/s ports

  AMD Ryzen™ 7000 & 9000 Series Desktop Processors
  M.2_1 (Key M), typ 2242/2260/2280 (supports PCIe 5.0x4 mode)
  M.2_2 (Key M), typ 2280/22110 (supports PCIe 5.0 x4 mode)
  AMD Ryzen™ 8000 Series Desktop Processors
  M.2_1 (Key M), typ 2242/2260/2280 (supports PCIe 4.0x4 mode)
  M.2_2 (Key M), typ 2280/22110 (supports PCIe 4.0 x4/x2 mode)*

  AMD B850 Chipset
  M.2_3 (Key M), typ 2280 (supports PCIe 4.0 x4)**
  M.2_4 (Key M), typ 2280 (supports PCIe 4.0 x4)
  2 x SATA 6Gb/s ports


• Specifications vary by CPU types.
  ** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot je operačný, M.2_3 will be disabled.

  AMD RAIDXpert2 Technology
  Ryzen™ 9000 Series Processors: RAID 0/1/5/10
  Ryzen™ 8000 Series Processors: RAID 0/1
  Ryzen™ 7000 Series Processors: RAID 0/1/10

  Ethernet
  1 x Intel® 2.5Gb Ethernet
  ASUS LANGuard

  Wireless & Bluetooth
  Wi-Fi 7*
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band**
  Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
  Bluetooth® v5.4***

  *Wi-Fi features may vary depending on the operating system
  Pre Windows 11, Wi-Fi 7 bude require 24H2 alebo posledná verzia pre úplné funkcie, Windows 11 21H2/22H2/23H2 bez podpory Wi-Fi 6E.
  Pre Windows 10, only Wi-Fi 6 je supported.
  ** Wi-Fi 6GHz frekvencia band and bandwidth regulátory majú vary between countries.
  *** The Bluetooth® verzia má vary, prosím referuje na Wi-Fi module manufacturer webovej stránky pre najnovšie špecifickosti.

  USB
  Rear USB (Total 12 ports)
  1 x USB 20 Gbps port (1 x USB Type-C®)
  3 x USB 10 Gbps ports (2 x Type-A + 1 x USB Type-C®)
  4 x USB 5Gbps ports (4 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)

  Front USB (Total 7 ports)
  1 x USB 10Gbps konektor (supports USB Type-C®)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports

• USB Type-C® power delivery output: max. 5V/3A

  Audio
  ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*


• Impedancia pre front a rear headphone outputs

• Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

• High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

• Supports up to 32-Bit/384 kHz playback on front panel

  Audio Features

• SupremeFX Shielding Technology

• Savitech SV3H712 AMP

• Rear optical S/PDIF out port

• Premium audio capacitors

• Audio cover


• Chassis s audio modulom HD v prednom paneli je potrebný na podporu 7.1 Surround Sound audio output.
  ** Prístup LINE OUT na paneli zadných častí nie je podporovaný spatial audio. Ak sa budete chcieť použiť spatial audio, budete chcieť pripojiť váš audio výstup zariadenia k audio jacku na prednej strane vášho chassis alebo použiť USB interface audio zariadenia.

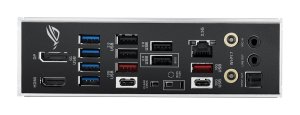

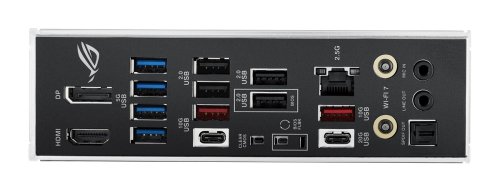

  Back Panel I/O Ports
  1 x USB 20 Gbps port (1 x USB Type-C®)
  3 x USB 10 Gbps ports (2 x Type-A + 1 x USB Type-C®)
  4 x USB 5Gbps ports (4 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  1 x DisplayPort
  1 x HDMI™ port
  1 x Wi-Fi module
  1 x Intel® 2.5Gb Ethernet port
  2 x Audio jacks
  1 x Optical S/PDIF out port
  1 x BIOS FlashBack™ button
  1 x Clear CMOS button

  Internal I/O Connectors
  Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  Power Related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connector
  Storage Related
  4 x M.2 slots (Key M)
  2 x SATA 6Gb/s ports
  USB
  1 x USB 10Gbps konektor (supports USB Type-C®)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x CPU Over voltage jumper
  1 x Front Panel Audio header (F_AUDIO)
  1 x Power button
  1 x 10-1 pin Front System Panel header
  1 x Thermal Sensor header
  1 x Thunderbolt™ (USB4®) header

  Special Features
  Extreme Engine Digi+


• 5K Black metallic capacitors
  ASUS Q-Design

• M.2 Q-Latch

• M.2 Q-Release

• M.2 Q-Slide

• PCIe Slot Q-Release Slim (s PCIe SafeSlot)

• Q-Antenna

• Q-Dashboard

• Q-DIMM

• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

• Q-Slot
  ASUS Thermal Solution

• M.2 heatsink backplate

• M.2 heatsink
  ASUS EZ DIY

• BIOS FlashBack™ button

• BIOS FlashBack™ LED

• Clear CMOS button

• ProCool

• Pre-mounted I/O shield

• SafeSlot

• SafeDIMM
  Aura Sync

• Addressable Gen 2 headers

  Softvér Features
  ROG Exclusive Software

• ROG CPU-Z

• Dolby Atmos
  ASUS Exclusive Software
  Armoury Crate

• AIDA64 Extreme (60 days free trial)

• Aura Creator

• Aura Sync

• Fan Xpert 4

• GameFirst

• HWiNFO

• Power Saving
  ASUS DriverHub
  ASUS GlideX
  TurboV Core
  Adobe Creative Cloud (Free Trial)
  Norton 360 for Gamers (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode

• ASUS MyHotkey
  BIOS
  256 Mb Flash ROM, UEFI AMI BIOS

  Manageability
  WOL by PME, PXE

  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS WiFi Q-Antenna
  1 x Cable ties package
  1 x M.2 Q-Latch package
  1 x M.2 Q-Slide package
  1 x ROG key chain
  1 x ROG Strix stickers
  4 x M.2 rubbers

  Documentation
  1 x Quick štart guide

  Operating System
  Windows 11

  Form Factor
  ATX Form Factor
  12 palcov x 9.6 palcov (30.5 cm x 24.4 cm)
