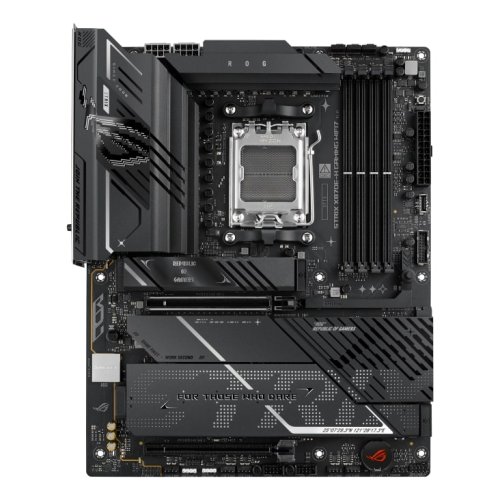

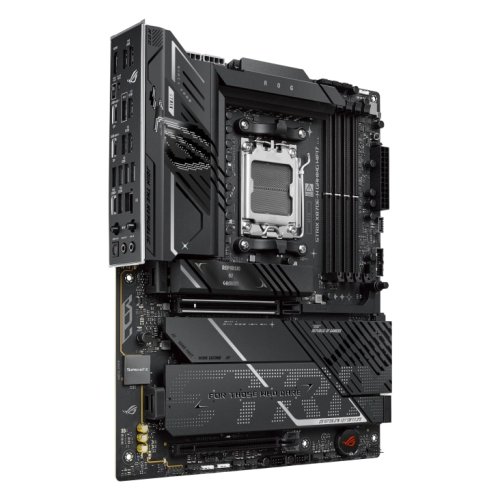

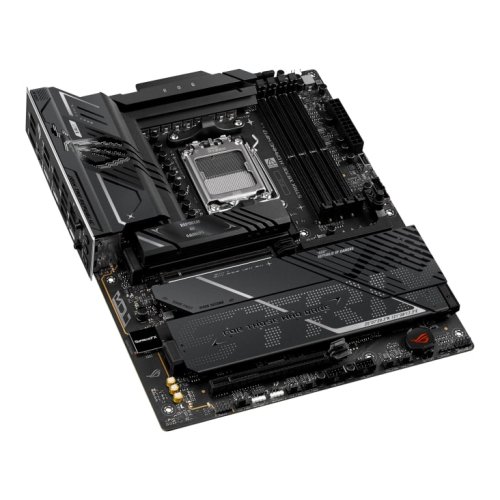

ASUS ROG STRIX X870E-H GAMING WIFI7

CPU: Socket AM5 pre procesory AMD Ryzen 9000, 8000 a 7000 séria desktopových procesorov Chipset: AMD X870E Pamäť: 4× DIMM sloty, maximálne 256 GB DDR5 Podpora až 8000+ MT/s (pri pretaktovaní) s procesom 7000 séria Dvojkanálová architektúra Podpora AMD EXPO™ Podpora DIMM Fit / DIMM Fit Pro ASUS Enhanced Memory Profile (AEMP)

Grafika (integrované výstupy): 1 HDMI port 2 USB4 porty s podporou DisplayPort 1.4a

Rozširujúce sloty AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (support x 16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot 4.0 x16 slot (supports x4 mode)

Úložisko: 4 x M.2 slot a 4 x SATA 6Gb/s port

Sieť: 1 x Realtek 5Gb Ethernet, Wi-Fi 7, Bluetooth v5.4

USB: Zadné USB 2 x USB4® (40 Gbps) portov (2 x USB Type-C®) 4 x USB 10 Gbps portov (3 x Type-A + 1 x USB Type-C® s 30 W PD/PPS Fast-charge) 6 x USB 5 Gbps ports (6 x Type-2) Predný USB 1 x USB 20 Gbps konektor (supports USB Type-C®) 1 x USB 5 Gbps header supports 2 additional USB 5 Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio: Realtek ALC1220P 7.1 Surround Sound

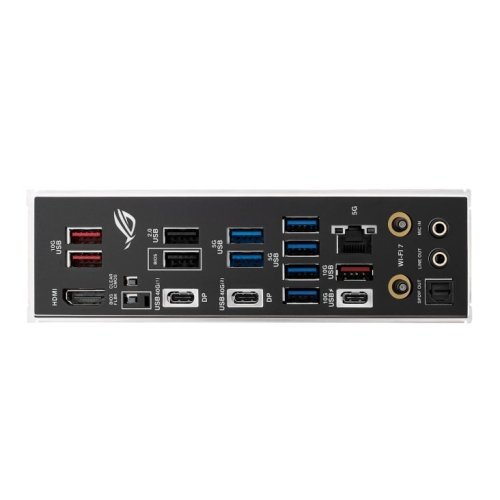

Zadné I/O porty: 2 x USB4® (40 Gbps) portov (2 x USB Type-C®) 4 x USB 10 Gbps portov (3 x Type-A + 1 x USB Type-C® s 30 W PD/PPS Fast-charge) 6 x USB 5 Gbps ports (6 x Type 2 Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 5Gb Ethernet 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button

Interné I/O konektory: Chladenie a ventilátor 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Napájanie 1 x 24-pin Main Power connector 2 x 8-pin + 12V CPU Power connect 4 x SATA 6 Gb/s ports USB 1 x USB 20 Gbps konektor (supports USB Type-C®) 1 x USB 5 Gbps header supports 2 additional USB 5 Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Rôzne 3 x Ad header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Štart button 1 x 10-1 pin Front Panel System header 1 x Thermal Sensor header

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Formát: ATX Form Factor
