Chipset: AMD A520

Rozmerový formát: mATX Form Factor (244 mm x 244 mm) Podpora pre procesory: AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Pätica procesora: AM4

Pozícia na pamäti: 4x DDR4 DIMM Podpora pre pamäte: *4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866( OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory Max.veľkosť operačnej pamäte: 128 GB Podpora pre pamäte typu: DDR4 (Dual Channel Memory Architecture) *ECC Memory (ECC mode) support varies by CPU.

Grafické výstupy: (na základe CPU)

Zvuková karta: *Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC

Sieťová karta: *Realtek 1Gb Ethernet (TUF LANGuard)

Rozširujúce sloty: *1x PCIe 3.0 x16 slot (supports x16 mode) *2x PCIe 3.0 x1 slots

RAID radič: 0, 1, 10

SATA: *4x SATA 6Gb/s port(s)

M.2 : *1x M.2 slot (Key M), typ 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

USB: * zadné USB porty (celkom 6) *4x USB 3.2 Gen 1 ports (4 x Type-A) *2x USB 2.0 ports (2 x Type-A) * predné USB porty (celkom 6) *2x USB 3.2 Gen 1 ports *4x USB 2.0 ports

Interné porty: *1x 4-pin CPU Fan header *2x 4-pin Chassis Fan headers *1x 24-pin Main Power connector *1x 8-pin +12V Power connector *1x M.2 slot (Key M) *4x SATA 6Gb/s ports *1x USB 3.2 Gen 1. *2x USB 2.0 headers support additional 4 USB 2.0 ports *2x AURA Addressable Gen 2 header *2x AURA RGB headers *1x Clear CMOS header *1x COM Port header *1x Front Panel Audio header (AAFP) *1x S/PDIF Out header T1x Spea *1x 10-1 pin System Panel header

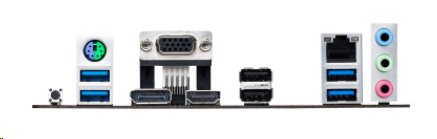

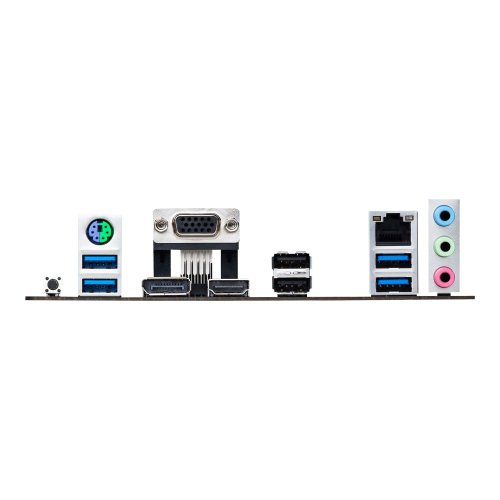

Externé porty: *4x USB 3.2 Gen 1 ports (4 x Type-A) *2x USB 2.0 ports (2 x Type-A) *1x BIOS FlashBack™ tlačidlo *1x DisplayPort *1x HDMI port *1x D-Sub *1x Realtek 1Gb Ethernet port *3Key Audio jacks

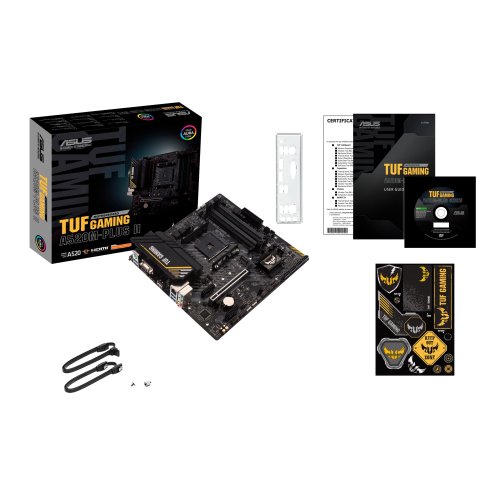

Príslušenstvo: *užívateľská príručka *2x SATA 6Gb/s cables *1x I/O Shield *1x M.2 SSD screw package *1x TUF Gaming sticker *1x Support DVD *1x TUF Certification card

BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
