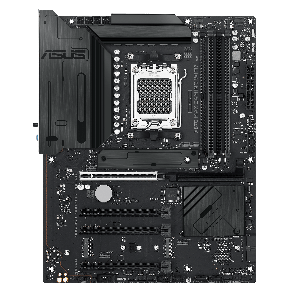

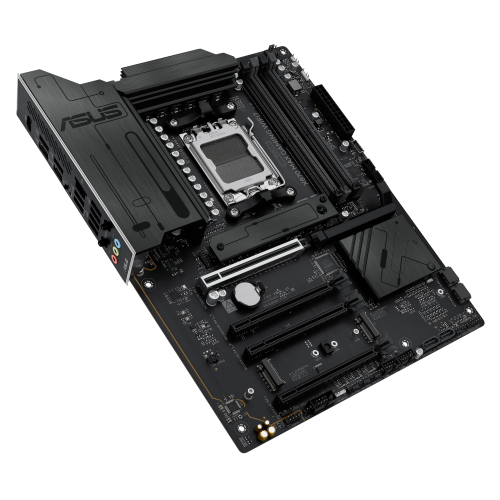

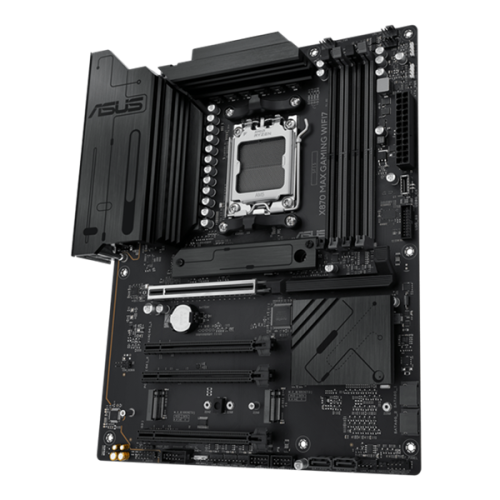

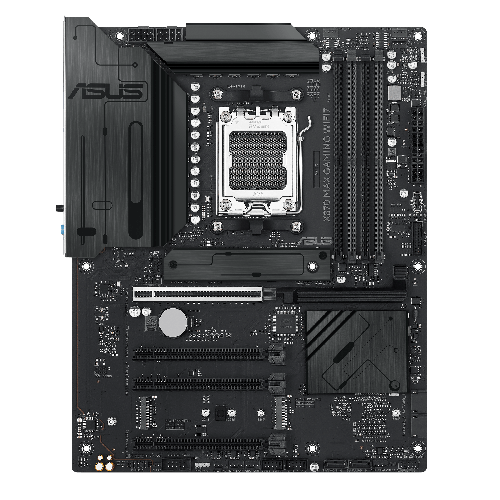

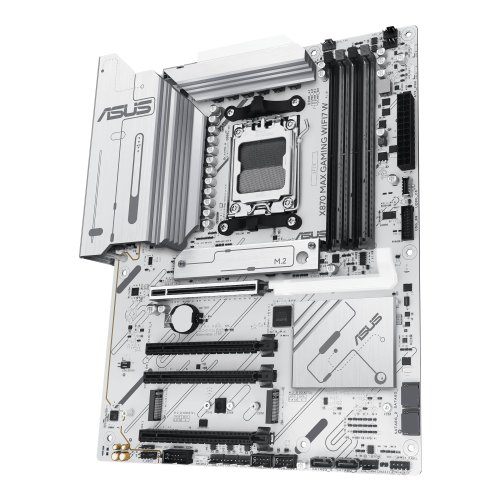

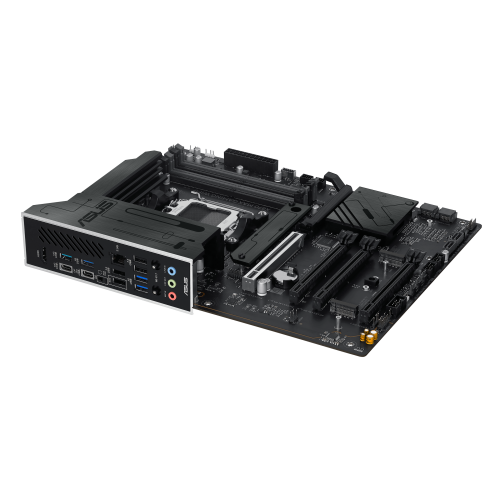

X870
MAX GAMING WIFI7
Základné desky ASUS série X870 sú odborne navrhnuté tak, aby naplno využili potenciál procesorov AMD Ryzen ™ série 9000. Základná deska X870 MAX GAMING WIFI7, ktorá sa môže pochváliť robustným dizajnom napájania, komplexnými riešeniami chladenia a inteligentnými možnosťami ladenia, poskytuje užívateľom a výrobcom softvéru a firmvéru. Je navrhnutý tak, aby bol pripravený na počítač s pokročilou AI a ponúka výkon a konektivitu potrebnú pre náročné aplikácie AI.

Špecifikácia:


CPU AMD Socket AM5 pre AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

• Refer to https://www.asus.com/support/download-center/ for CPU support list.

  Chipset AMD X870 Chipset

  Memory "4 x DIMM slots, max. 256GB, DDR5
  Supports up to 8000+MT/s(OC) s Ryzen™ 9000 & 8000 & 7000 Processors, ECC and Non-ECC Un-buffered DIMM*"
  Dual channel memory architecture
  Supports AMD Extended Profiles for Overclocking (EXPO™)
  ASUS Enhanced Memory Profile (AEMP)

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of production information site or visit https://www.asus.com/support/download-cent-center Adjustments budú urobené na základe špecifikácií masovo-výrobných značiek produkovaných na trhu.

• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

  Graphics 1 x HDMI port**
  2 x USB4® (40Gbps) ports support USB Type-C® display outputs***

• Graphics specifications majú vary between CPU types. Please refer to AMD CPU specifications.
  ** Supports 4K@60Hz as specified in HDMI 2.1.
  *** Supports max. 4K@60Hz as špecifikovaným v DisplayPort 1.4a.
  *** VGA resolution support depends on processors' or graphic cards' resolution.

  Expansion Slots AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
  1 x PCIe 5.0 x16 slot (supports x16 mode)
  AMD Ryzen™ 8000 Series Desktop Processors
  1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
  AMD X870 Chipset
  2 x PCIe 4.0 x16 slots (support x1 mode)
  1 x PCIe 3.0 x16 slot (supports x1 mode) *

• Pozrite si PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ).
  ** Specifications vary by CPU types.
  *** PCIEX16(G3) lot slot bandwidth with SATA6G_3 and SATA6G_4 ports. Both SATA ports bude disabled pri PCIEX16(G3) slot is running. Môžeš zadať BIOS, aby ste sa uistili, že default Settings as required.


• Ak chcete získať kompatibilitu zariadenia inštalovaný, prosím referte na https://www.asus.com/support/download-center/ pre list podporovaných peripherals.

  Storage Total supports 3 x M.2 slots a 4 x SATA 6Gb/s ports*
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  M.2_1 slot (Key M), typ 2280 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  AMD Ryzen™ 8000 Series Desktop Processors
  M.2_1 slot (Key M), typ 2280 (supports PCIe 4.0 x4 mode)
  M.2_2 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
  AMD X870 Chipset
  M.2_3 slot (Key M), typ 2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports


• 2 x USB4® (40Gbps) porty share bandwidth with M.2_2 slot. Slot M.2_2 bude disabled, keď má dve USB4® (40 Gbps) porty aj s bežiacim. Môžeš zadať BIOS, aby ste sa uistili, že default Settings as required.

• PCIEX16(G3) lot slot bandwidth with SATA6G_3 a SATA6G_4 porty. Topánky SATA porty budú disabled pri PCIEX16(G3) slot is running. Môžeš zadať BIOS, aby ste sa uistili, že default Settings as required.
  ** Specifications vary by CPU types.

  RAID Support AMD RAIDXpert2 Technology
  Ryzen™ 9000 Series Processors: RAID 0/1/5/10
  Ryzen™ 8000 Series Processors: RAID 0/1
  Ryzen™ 7000 Series Processors: RAID 0/1/10

  Ethernet 1 x Realtek 2.5Gb Ethernet
  ASUS LANGuard

  Wireless & Bluetooth® "Wi-Fi 7*
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band**
  Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
  Bluetooth® v5.4***

• Wi-Fi features majú vary depending on the operating system.
  Pre Windows 11, Wi-Fi 7 bude require 24H2 alebo posledná verzia pre úplné funkcie, Windows 11 21H2/22H2/23H2 bez podpory Wi-Fi 6E.
  Pre Windows 10, only Wi-Fi 6 je supported.
  ** Wi-Fi 6GHz frekvencia band and bandwidth regulátory majú vary between countries.
  *** The Bluetooth® verzia má vary, prosím refer to na Wi-Fi module manufacturer's website pre ďalšie špecifickosti."

  USB Rear USB (Total 10 ports)
  2 x USB4® (40 Gbps) ports (2 x USB Type-C®)
  1 x USB 10 Gbps port (1 x USB Type-A)
  3 x USB 5Gbps ports (3 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  Front USB (Total 7 ports)
  1 x USB 20Gbps konektor (supports USB Type-C®)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports

• USB Type-C® power delivery output: max. 5V/3A

  Audio "Realtek 7.1 Surround Sound High Definition Audio CODEC*


• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• Supports up to 24-bit/192 kHz playback"
  Audio Features

• Audio Shielding

• Premium audio capacitors

• Dedicated audio PCB layers


• Chassis s audio modulom HD v prednom paneli je potrebný na podporu 7.1 Surround Sound audio output.

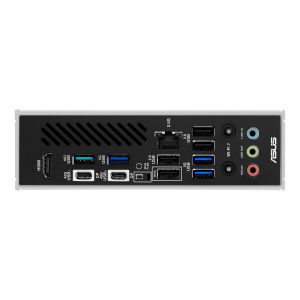

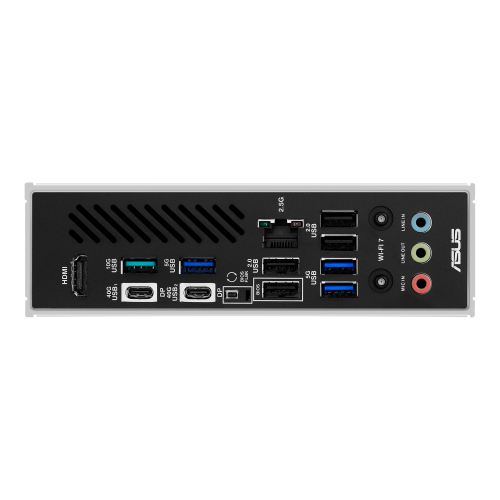

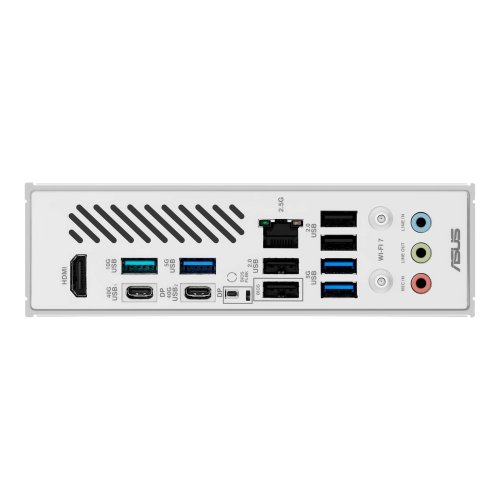

  Back Panel I/O Ports 2 x USB4® (40 Gbps) (2 x USB Type-C®)
  1 x USB 10 Gbps port (1 x USB Type-A)
  3 x USB 5Gbps ports (3 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  1 x HDMI™ port
  1 x Wi-Fi module
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks
  1 x BIOS FlashBack™ button

  Internal I/O Connectors Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  Power Related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connectors
  Storage Related
  3 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 20Gbps konektor (supports USB Type-C®)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable RGB Gen 2 headers
  1 x Clear CMOS header
  1 x Chassis Intrusion header
  1 x COM Port header
  1 x Front Panel Audio header (F_AUDIO)
  1 x S/PDIF Out header
  1 x SPI TPM header (14-1 pin)
  1 x 10-1 pin Front Panel System header

  Special Features ASUS 5X PROTECTION III


• DIGI+ VRM (- Digital power design with DrMOS)

• LANGuard

• Overvoltage protection

• SafeSlot

• Stainless-steel back I/O
  ASUS Q-Design

• PCIe Slot Q-Release

• Q-Antenna

• Q-Dashboard

• Q-DIMM

• Q-LED Core

• Q-Slot
  ASUS Thermal Solution

• Flexible M.2 heatsink

• VRM heatsink design
  ASUS EZ DIY

• BIOS FlashBack™ button

• BIOS FlashBack™ LED

• ProCool

• Pre-mounted I/O shield

• SafeSlot
  Aura Sync

• Addressable RGB Gen 2 headers

  Softvér Features ASUS Exclusive Software
  Armoury Crate

• Aura Creator

• Aura Sync

• Fan Xpert 4 (s AI Cooling II)
  ASUS AI Advisor
  ASUS DriverHub
  ASUS GlideX
  TurboV Core
  ASUS CPU-Z
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode

• ASUS MyHotkey

  BIOS 256 Mb Flash ROM, UEFI AMI BIOS
  Manažment WOL by PME, PXE

  Accessories Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS WiFi Q-Antenna
  1 x M.2 rubber package
  1 x Screw package for M.2 SSD
  Documentation
  1 x Quick štart guide

  Operating System Windows 11
  Form Factor ATX Form Factor
  12 palcov x 9.6 palcov (30.5 cm x 24.4 cm)
