ech Specs
Product Type
Desk mount (adjustable arm)
Tilt
-35° až 80°
Pán
180°
Lift
26.6 cm
Rotation
-90° až 90°
Swivel
180°
Adjustments
Height, tilt, swivel, rotation, depth
Recommended Use
LCD display
Recommended Display Size
19"-38"
VESA Mounting Interface
100 x 100 mm
Max Load Weight
22 lbs
Color
Black
Manufacturer Warranty
3-year warranty
Product Description

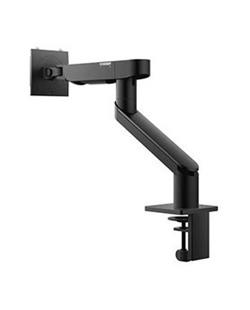

Dell Single Monitor Arm - MSA20
Color
Black
Panel mount
Dell Quick Release mounting
VESA Compliant Monitor (100 mm x 100 mm)
VESA Adapter Plate sets included
Individual weight range per arm
4.8 to 22.0 lbs (2.2 to 10.0kg)
Individual monitor screen size per arm
19" to 38" (monitor mounting only). Pre PC a monitor prevodu, prosím refer to the compatibility matrix.
Individual monitor tilt
-35° to +80°
Individual monitor swivel
Switchable 180 ° a 360 ° v základnej a joint. 180° at monitor
Individual monitor pivot
-/+ 90°
Individual monitor height range
10.5” (266mm)
Individual monitor depth range
21.6” (548mm)
Cable management
Cable management slot on the upper and lower arms
Installation Type
Clamp up to 2.1” (53mm) doska thickness and Grommet palice up to 2” (50.8mm) diameter
Client Mounting
Select OptiPlex Micro & Ultra a Wyse Thin Clients
