Chipset: Intel H610 Express Chipset

Rozmerový formát: Mini-ITX (17.0cm x 17.0cm) Podpora pre procesory: 12th Generation Intel Core, Pentium Gold and Celeron Processors Pätica procesora: LGA 1700

Pozícia na pamäti: 2 x DDR4 DIMM, Dual channel memory architecture Podpora pre pamäte: DDR4 3200/3000/2933/2666/2400/2133 MHz Max.veľkosť operačnej pamäte: 64 GB Podpora pre pamäte typu: ECC, XMP

Grafické výstupy: (Intel HD Graphics) * 1 x D-Sub port - 1920 x 1200 @ 60 Hz * 1 x HDMI 2.1 port - 4096 x 2160 @ 60 Hz * 2 x DisplayPort 1.2 - 4096 x 2304 @ 60 Hz

Zvuková karta: Realtek Audio CODEC *2/4/5.1/7.1-channel

Sieťová karta: Intel GbE LAN čip (1 Gbps/100 Mbps)

Rozširujúce sloty: 1 x PCI Express x16 slot, running at x16 (PCI Express 4.0 štandard)

SATA: 4 x SATA 6Gb/s konektory

M.2 : 1 x M.2 connector

USB: * Interné: *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers * Externé: *2 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports

Interné porty: 1 x 24-pin ATX main power connector connector *4 x SATA 6Gb/s connectors *1 x front panel header *1 x front panel audio header *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *1 x Trusted Platform Module header (For the GC- TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) *2 sériový port headers *1 x Clear CMOS jumpe *1 x chassis intrusion header

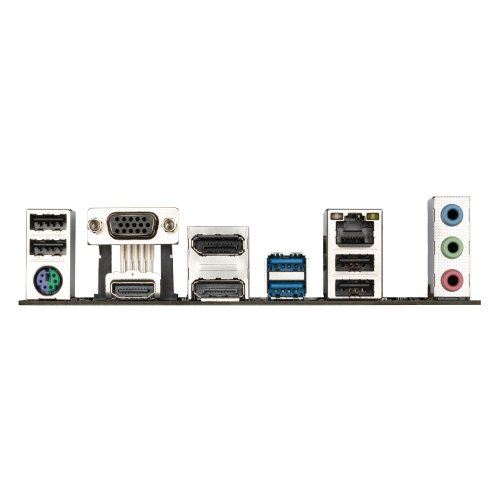

Externé porty: *1 x PS/2 keyboard/mouse port *2 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports *1 x D-Sub port *2 x DisplayPorts *1 x HDMI 2.0 port *1 x RJ -45 port *3 x audio jacks

BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash

Stránka výrobcu: http://www.gigabyte.com/Motherboard/H610I-DDR4-rev-10#kf
