Chipset: AMD A520

Rozmerový formát: Micro-ATX Form Factor (236 mm x 200 mm) Podpora pre procesory: AMD Ryzen™ 5000 & 3000 Series desktop processors Series desktop processors Pätica procesora: AM4

Pozícia na pamäti: 2x DDR4 DIMM Podpora pre pamäte: *1866/2133/2400/2667/2800/2933/3000/3066/3200 MHz by JEDEC *2667/2800/2933/330 3 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE Max.veľkosť operačnej pamäte: 64 GB Podpora pre pamäte typu: DDR4 *Dual channel memory architecture *Supports non-ECC UDIMM memory *Sup memory (non-ECC mode) *Supports un-buffered memory

Grafické výstupy: *Integrated Graphics Processor (na základe procesora)

Zvuková karta: *Realtek® ALC892/ALC897 Codec

Sieťová karta: *1x Realtek® RTL8111H Gigabit LAN controller

Rozširujúce sloty: *1x PCIe 3.0 x1 slot *1x PCIe x16 slot

RAID radič: 0, 1, 10

SATA: *4x SATA 6Gb/s

M.2 : *1x M.2 slots

USB: * zadné USB porty ( celkom 6 ) *2x USB 2.0 ports *4x USB 3.2 Gen 1 5Gbps Type-A ports * predné USB porty ( celkom 6 ) *2x USB 3.2 Gen 1 5Gbps ports *4x USB 2.0 ports

Interné porty: *1x 24-pin ATX main power connector *1x 4-pin ATX 12V power connector *4x SATA 6 Gb/s connectors *1x M.2 slots (M-Key) 2 USB 3.2 Gen 1 5Gbps ports) *2x USB 2.0 konektory (supports additional 4 USB 2.0 ports) *1x 4-pin CPU fan connector *1x 4-pin system fan connectors *1x Front panel audio connector *2x System panel connectors *1x Chassis Intrusion connector *1x TPM module connector *1x Clear CMOS jumper

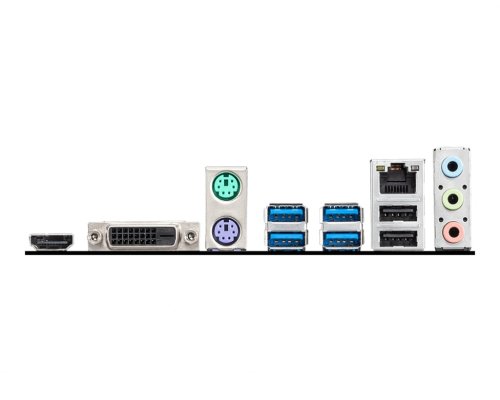

Externé porty: *LAN port *HDMI *DVI-D *Keyboard / Mouse *4x USB 3.2 Gen 1 5Gbps Type-A *2x USB 2.0 Ports *Audio Connectors

Stránka výrobcu: https://www.msi.com/Motherboard/A520M-A-PRO
