Simultánne pripojenie 450Mbit/s na frekvencii 2.4GHz a 867Mbit/s na frekvencii 5GHz, celková rýchlosť až 1317Mbit/s
EAP Controller Software umožňuje správcom ľahko ovládať stovky EAPov
Kompatibilný so štandardom 802.3af, aktívny a novo aj pasívny PoE
Kaptívny portál poskytuje pohodlnú metódu na autorizáciu hostí
Band Steering automaticky presúva dvojpásmové zariadenia do širšieho pásma 5GHz pre rýchlejšie pripojenie
MU-MIMO umožňuje prístupovým bodom jednoduchý prenos dát s viacerými zariadeniami
Beamforming sústreďuje signál tam, kde ho najviac potrebujete a poskytuje tak rýchlu a stabilnú Wi-Fi
Možnosť nastavenia automatického reštartu prístupových bodov a zapnutie/vypnutie Wi-Fi vo vopred určenom čase

1317Mbps bezdrôtová data rate for uninterrupted bezdrôtová pripojenia
Free Controller Softvér pre jednoduché centralizované riadenie manažmentu hundreds of EAPs
Multiple operating modes including managed AP and standalone AP satisfy different application conditions
Support Power over Ethernet(802.3af) a pasívny PoE(Adaptér Included) pre efektívnu a affordable inštaláciu
Simple mounting design makes easy to install on any wall or ceiling surface
Kvalitné portály ponúkajú jeden vhodný spôsob authentication for Wi-Fi guests
Band Steering Automatically moves dual band devices on wider 5GHz band for faster connections
MU-MIMO means prístupové body simultaneously transfer data with multiple devices, speeding up connections
Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
Airtime Fairness ensures better network performance by giving equal amounts of airtime to each client
Schedules can be set so prístupovými bodmi automaticky reboot a Wi-Fi turns on/off at the times you choose
Znížte limit na SSID do obmedzenia bandwidth of each client
Load balance ensures large numbers of users majú smooth network experiences in high density business networks
Access Control restricts or only allows the client to access the specified network segment
Multi-SSID divides multiple wireless network for different users
Compatible with 802.11 a/b/g/n/ac products
Support management VLAN for an enhanced network management
Funkcie Qos fungujú video a hlasové streams higher priority to promote smoother performance for video and voice services

HARDWARE FEATURES
Interface Gigabit Ethernet (RJ-45) Port *1 (Support IEEE802.3af PoE and Passive PoE *)
Button Reset
Power Supply 802.3af PoE and passive PoE *
Power Consumption EÚ: 10.5 W
US: 12.6W
Dimensions 8.1 × 7.1 × 1.5 in. (205.5 × 181.5 × 37.1 mm)
Antenna Type 3 Internal Omni *
2.4GHz: 4dBi
5GHz: 5dBi
Mounting Ceiling/Wall Mounting (Kits included)
Physical Security Lock Yes
Hardvér Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz: Up to 867Mbps
2.4GHz:Up to 450Mbps *
Wireless Functions Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Band Steering
Load Balance
MU-MIMO *
Airtime Fairness *
Beamforming *
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics na základe SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Transmission Power CE:
?20dBm(2.4GHz,EIRP)
?23dBm(5GHz,EIRP)
FCC:
?24dBm(2.4GHz)
?22dBm(5GHz)
MANAGEMENT
EAP Controller Software Yes
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS

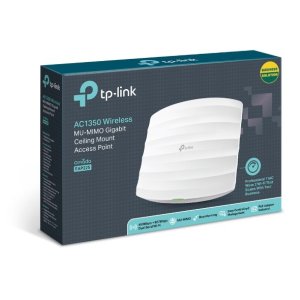

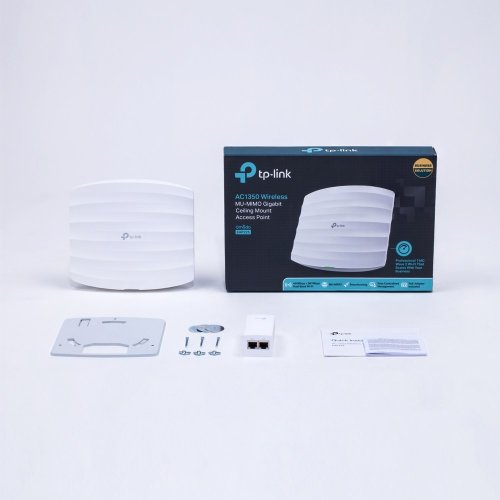

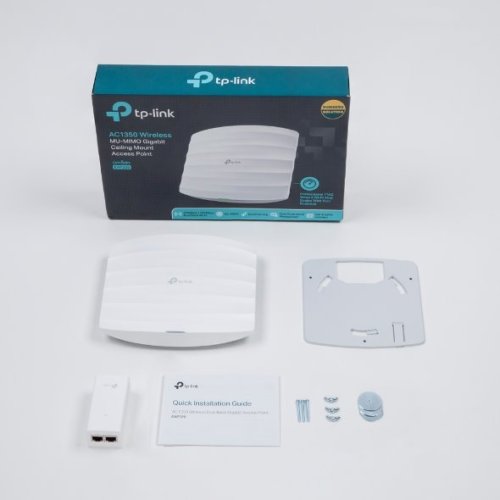

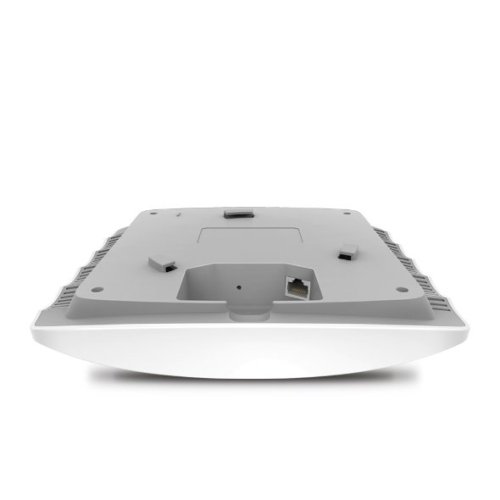

Package Contents AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
Passive PoE Adapter
Power Cord
Mounting Kits
Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment Operating Temperature: 0?~60? (32?~144?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
